1981 Yamaha SRX440E Radiator - Hose Diagram

← All diagrams

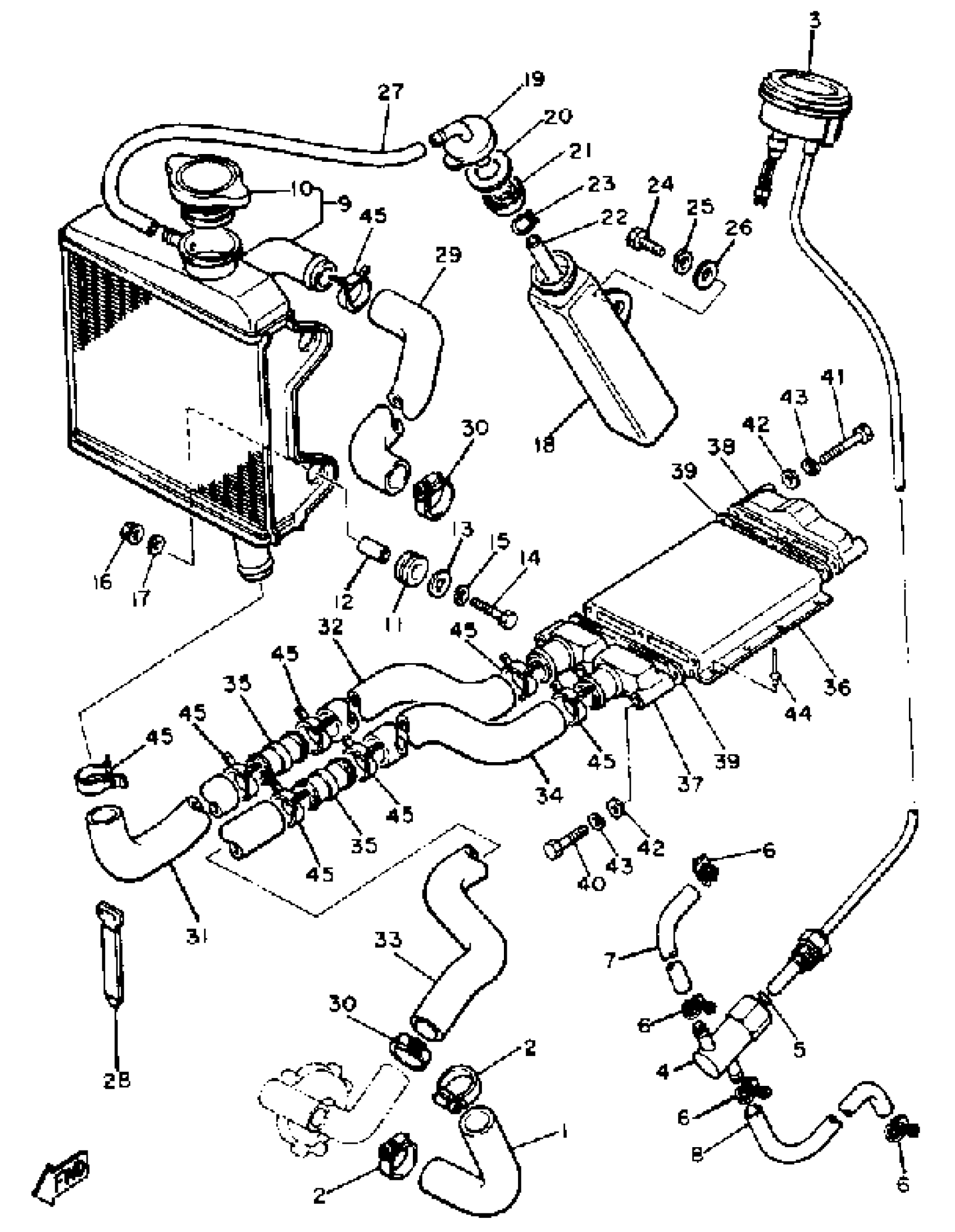

Find the part on the Radiator - Hose diagram for your 1981 Yamaha SRX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SRX440E Radiator - Hose Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PIPE 1

8M6-12481-01-00

1
Out of stock

2

CLAMP, HOSE

90460-38292-00

1
Out of stock

3

WATER TEMP METER

8X6-83590-00-00

1
Out of stock

4

JOINT

8A7-12446-01-00

1
Out of stock

5

O-RING (260)

93210-10118-00

1

$5.86

In stock

6

CLIP(3BM)

90467-10135-00

1

$6.91

In stock

7

HOSE, 2

84M-1243E-00-00

1
Out of stock

8

HOSE,3 (L200)

84M-1243F-00-00

—

$3.86

In stock

9

RADIATOR ASSEMBLY

8M6-12460-00-00

1
Out of stock

10

CAP, RADIATOR

11H-12462-00-00

1
Out of stock

11

GROMMET(87A)

90480-20527-00

1

$10.06

In stock

12

COLLAR (8A7)

90387-06518-00

1
Out of stock

13

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

14

BOLT, HEXAGON

97017-06030-00

1

$3.00

In stock

15

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

16

NUT, NYLON

95707-06300-00

—

$3.20

In stock

17

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

18

TANK, RECOVERY

8A2-21871-00-00

1
Out of stock

19

CAP

8A2-21875-00-00

1
Out of stock

20

GASKET, CAP

8A2-16716-00-00

1
Out of stock

21

STOPPER

8A2-21872-00-00

1
Out of stock

22

HOSE (L198)

90445-11293-00

—

$6.97

In stock

23

CLIP

90467-100A1-00

—
Out of stock

24

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

—

$1.91

In stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

27

HOSE (L370)

90445-112E1-00

—

$20.43

In stock

28

BAND

341-26397-01-00

1
Out of stock

29

PIPE 2

(8M6-12482-00-00)

1
Out of stock

30

CLAMP, HOSE

90460-38292-00

1
Out of stock

31

PIPE 3

8M6-12483-00-00

1
Out of stock

32

PIPE 4

8M6-12484-00-00

1
Out of stock

33

PIPE 5

8M6-12485-00-00

1
Out of stock

34

PIPE 6

(8M6-12476-00-00)

1
Out of stock

35

JOINT, HOSE 1

8M6-12581-00-00

1
Out of stock

36

EXCHANGER, HEAT

8H0-12466-00-00

1
Out of stock

37

JOINT 1

8G9-12469-00-00

1
Out of stock

38

JOINT

8G9-12479-00-00

1
Out of stock

39

GASKET 1

8G9-12474-00-00

1
Out of stock

40

BOLT, HEXAGON

(97321-05045-00)

1
Out of stock

41

BOLT, HEXAGON

(97301-05050-00)

1
Out of stock

42

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

43

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

44

RIVET, BLIND (8H4)

90267-48053-00

—

$2.31

In stock

45

CLIP (8M6)

90467-28046-00

—

$12.43

In stock
