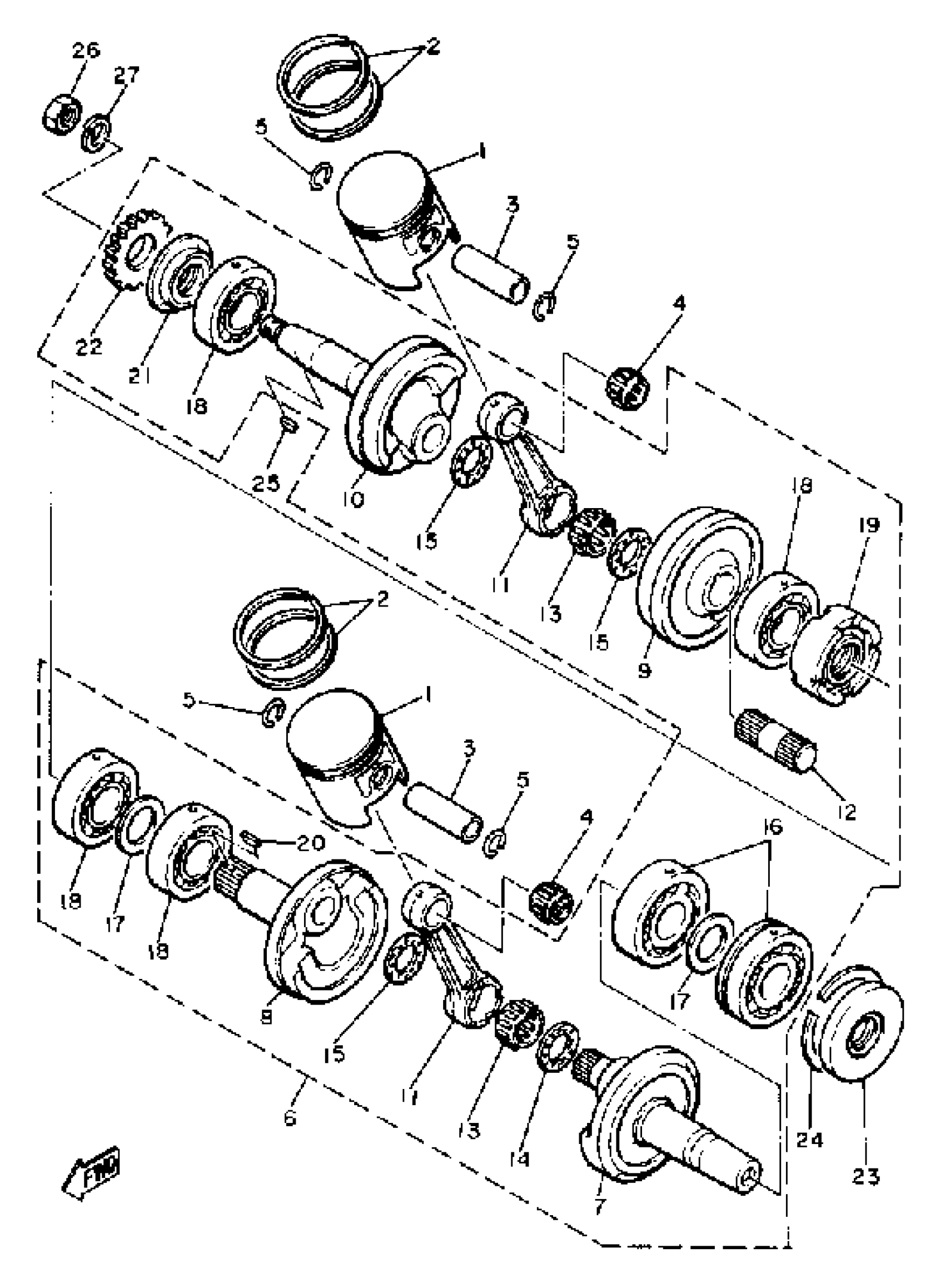

Find the part on the Crankshaft - Piston diagram for your 1981 Yamaha SRX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Yamaha SRX440E Crankshaft - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PISTON STD (STD)

8M6-11631-00-93

1
Out of stock

2

RING, PISTON STD

8M6-11611-00-00

1
Out of stock

3

PIN, PISTON

8J0-11633-00-00

1

$32.82

In stock

4

BRG,CYL-CAL ROLLER 25G KY

93310-320G0-00

1

$40.32

In stock

5

CIRCLIP (8H0)

93450-21053-00

1

$3.43

In stock

6

CRANKSHAFT ASSEMBLY (8M6-11400-00)

8M6-11400-02-00

1
Out of stock

7

. CRANK 1

8M6-11412-00-00

1
Out of stock

7

CRANK 1

(8M6-11412-02-00)

1
Out of stock

8

CRANK 2

8H8-11422-01-00

—

$228.08

In stock

8

. CRANK 2

8M6-11422-00-00

1
Out of stock

9

CRANK 3

8H8-11432-01-00

—

$223.88

In stock

9

CRANK 3

(8M6-11432-00-00)

1
Out of stock

10

CRANK 4

(8M6-11442-00-00)

1
Out of stock

10

CRANK 4

(8M6-11442-01-00)

1
Out of stock

11

. ROD, CONNECTING

8H0-11651-00-00

1
Out of stock

11

ROD, CONNECTING

(8M6-11651-02-00)

1
Out of stock

12

. PIN, CRANK 1

8H8-11681-00-00

1
Out of stock

12

. PIN, CRANK 1

8R9-11681-00-00

1
Out of stock

13

BRG,CYL-CAL ROLLER (8R6)

93310-524K4-00

—

$110.95

In stock

13

BEARING,CYL.(8AB)

93310-525S1-00

1
Out of stock

14

WASHER, CRANK PIN

8A7-11685-00-00

—

$10.68

In stock

14

WASHER, CRANK PIN

8AY-11685-00-00

1
Out of stock

15

WASHER (152-11685-00)

90209-24073-00

—

$10.08

In stock

15

WASHER 275116850000

90209-25085-00

—

$10.43

In stock

16

. BEARING ASSEMBLY 1

8H0-11415-01-00

1
Out of stock

17

WASHER (8H0)

90201-34683-00

—
Out of stock

18

BEARING(8V0)

93306-20633-00

—

$67.35

In stock

19

. SEAL, LABYRINTH 1

8M6-11515-00-00

1
Out of stock

20

KEY, WOOD RUFF (324)

90280-05014-00

—

$7.82

In stock

21

. OIL SEAL, SW-TYPE

93103-32116-00

1
Out of stock

22

GEAR, PUMP DRIVE

(8M6-13178-00-00)

1
Out of stock

23

OIL SEAL (878).

93103-32095-00

—

$30.09

In stock

24

CIRCLIP, OUTER

93440-78011-00

1
Out of stock

25

KEY, WOOD RUFF (324)

90280-05014-00

—

$7.82

In stock

26

NUT

90170-16425-00

—
Out of stock

27

WASHER(JN5)

92907-16100-00

—

$12.08

In stock
