1981 Yamaha SRX440E OIL Tank Diagram

← All diagrams

Find the part on the OIL Tank diagram for your 1981 Yamaha SRX440E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

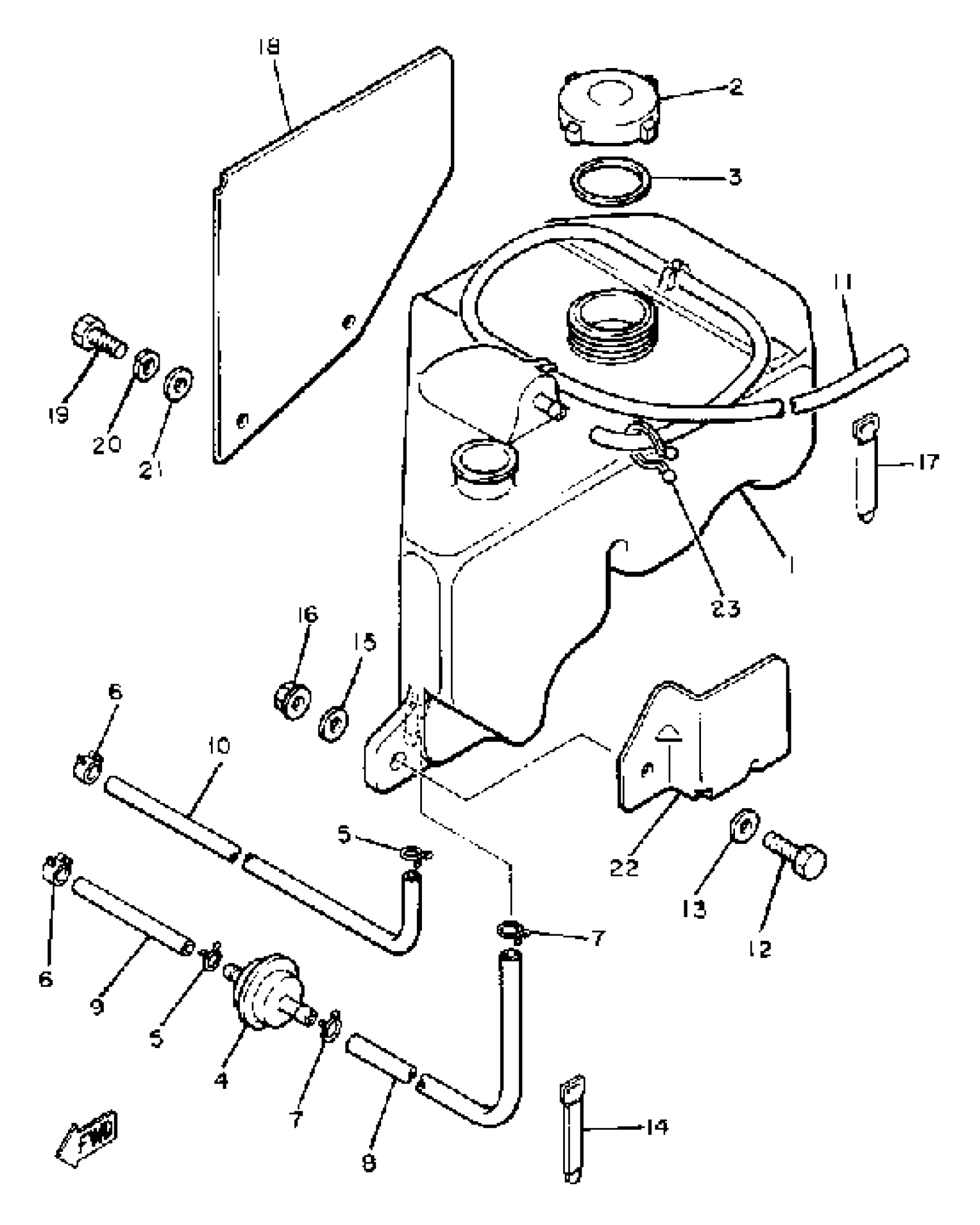

1981 Yamaha SRX440E OIL Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TANK, OIL

8M6-21751-00-00

1
Out of stock

2

BODY, CAP

8LU-21771-00-00

1

$25.12

In stock

3

GASKET, TANK (867)

90430-31003-00

1

$7.77

In stock

4

HOUSING STRAINER ASSY

8G8-13410-00-00

1

$22.78

In stock

5

CLIP (8L2)

90467-08017-00

1

$7.51

In stock

6

CLIP (8A1)

90467-09026-00

1

$2.72

In stock

7

CLIP (8J7)

90467-11009-00

1

$7.55

In stock

8

TUBE, FLEXIBLE(3NV)

91A21-07020-00

1

$8.95

In stock

9

TUBE,FLEXIBLE VINYL(85R)

91A30-05080-00

1

$16.89

In stock

10

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

1

$12.58

In stock

11

TUBE, FLEXIBLE VINYL(8AT)

91A20-05145-00

1

$23.43

In stock

12

BOLT, HEXAGON

97017-06025-00

1

$2.98

In stock

13

WASHER, PLATE

90201-06380-00

1

$0.57

In stock

14

BAND

341-26397-01-00

1
Out of stock

15

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

16

NUT, NYLON

95707-06300-00

—

$3.20

In stock

17

BAND, SWITCH CORD

25G-83936-01-00

—

$4.12

In stock

18

INSULATOR, SIDE CVR

8M6-2174A-00-00

1
Out of stock

19

BOLT (661)

97013-06012-00

—

$4.71

In stock

20

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

21

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

22

PLATE

8M6-2176E-01-00

1
Out of stock

23

CLAMP (3Y2)

90464-16039-00

—
Out of stock
