1996 Kawasaki KLX650 Water Pump Diagram

← All diagrams

Find the part on the Water Pump diagram for your 1996 Kawasaki KLX650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

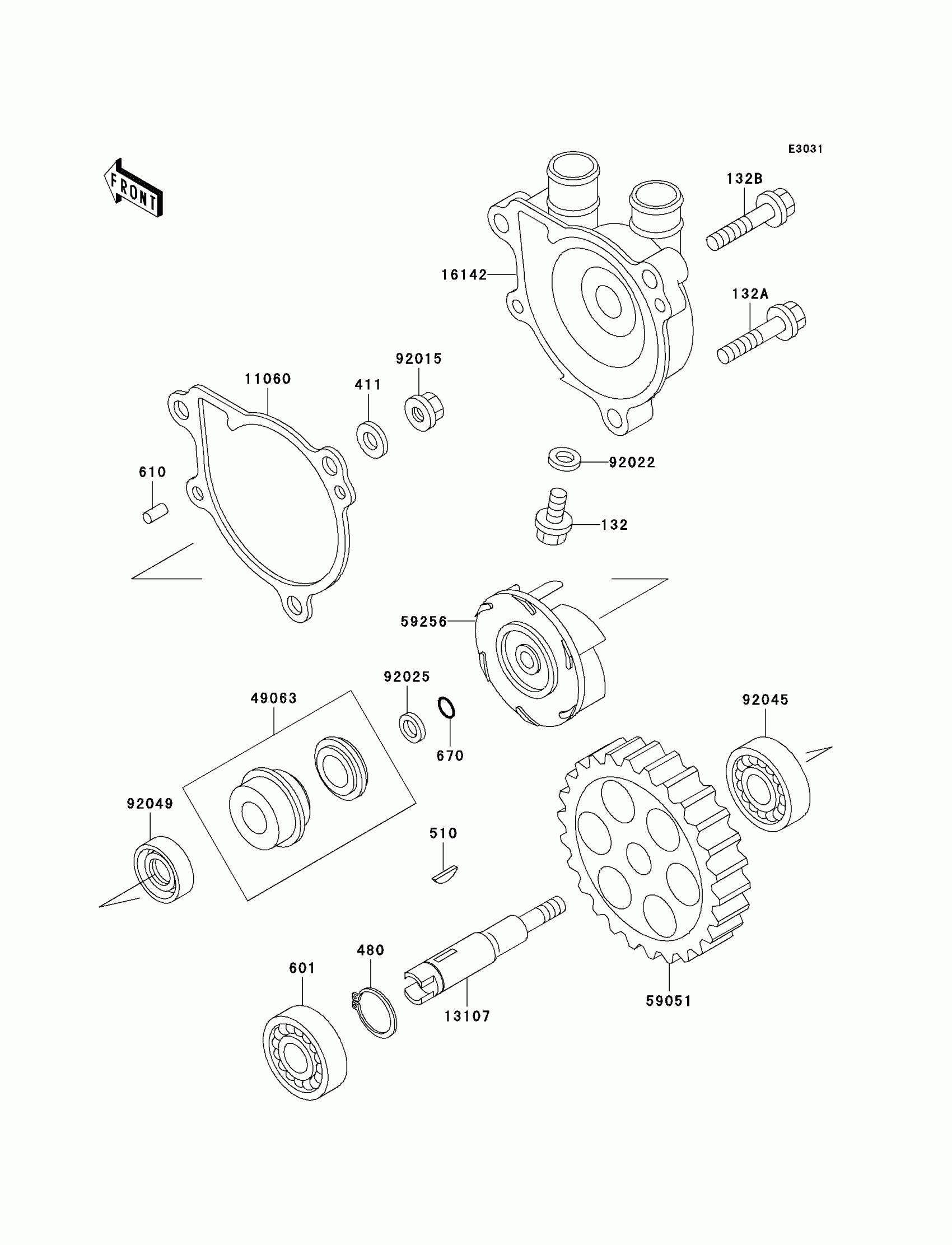

1996 Kawasaki KLX650 Water Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL

132Y0608

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X30

132Y0630

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X35

132Y0635

1
Out of stock

411

WASHER PLAIN

411F0600

1

$1.08

In stock

480

1

$0.67

In stock

510

KEY-WOODRUFF

510A3100

1

$2.17

In stock

601

BEARING-BALL

601A6001

1

$9.26

In stock

610

ROLLER,4X8

610A0408

1

$3.43

In stock

670

O RING,6MM

670B1506

1

$1.14

In stock

11060

1

$6.39

In stock

13107

SHAFT,WATER PUMP

13107-1305

1
Out of stock

16142

COVER-PUMP

16142-1122

1
Out of stock

49063

SEAL-MECHANICAL

49063-1054

1

$13.09

In stock

59051

GEAR-SPUR,37T

59051-1284

1
Out of stock

59256

IMPELLER

59256-1055

1

$27.71

In stock

92015

NUT,FLANGED,6MM

92015-1078

1
Out of stock

92022

WASHER,6.2X11X1

92022-304

1
Out of stock

92025

SHIM,T=0.8

92025-1503

1
Out of stock

92045

BEARING-BALL,6901

92045-1246

1

$26.96

In stock

92049

SEAL-OIL,SC 12X22X5

92049-1228

1
Out of stock
