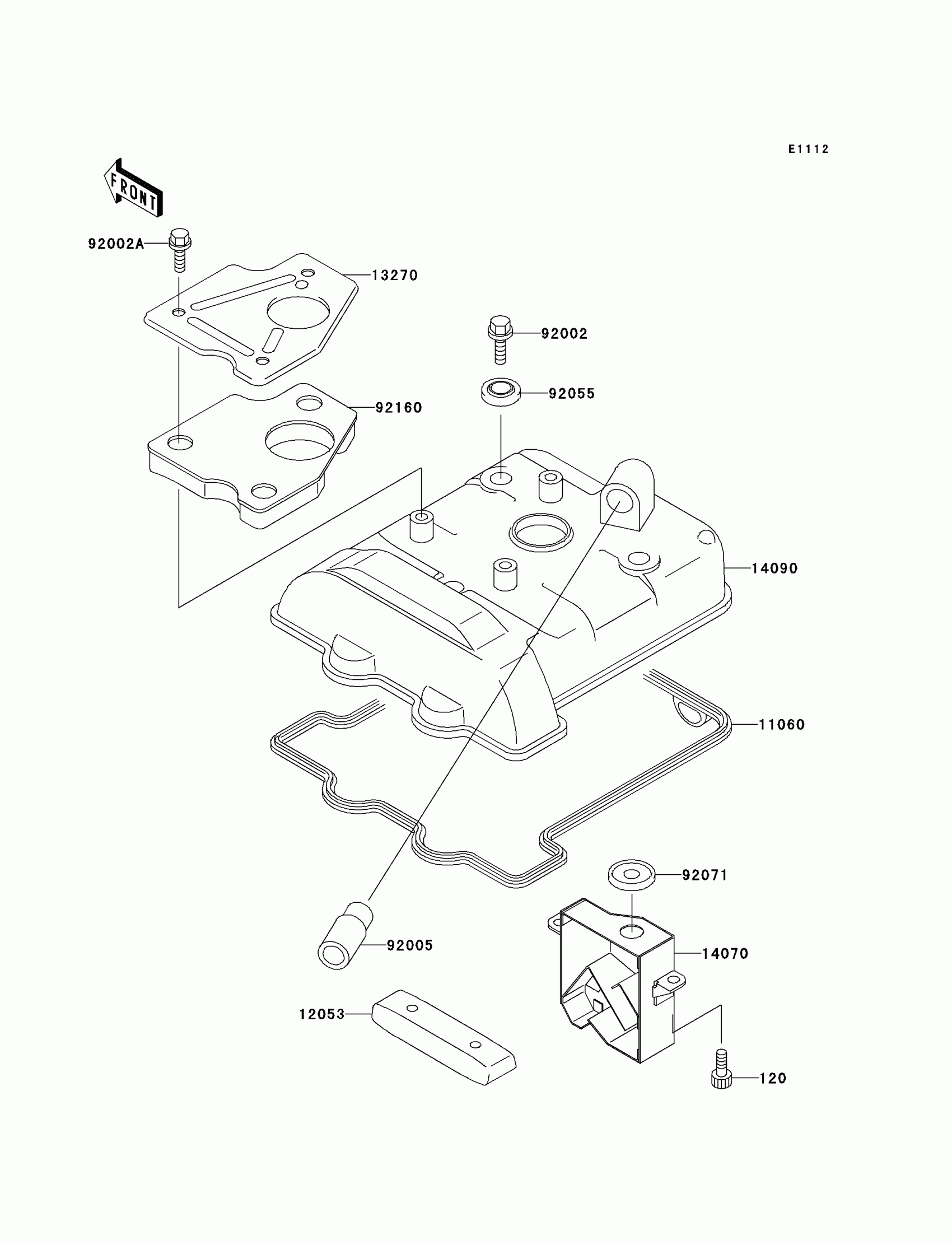

Find the part on the Cylinder Head Cover diagram for your 1996 Kawasaki KLX650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Kawasaki KLX650 Cylinder Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET

120P0512

1
Out of stock

11060

GASKET,HEAD COVER

11060-1299

1
Out of stock

12053

GUIDE-CHAIN

12053-1274

1
Out of stock

13270

PLATE,HEAD COVER

13270-1078

1
Out of stock

14070

BODY-BREATHER

14070-1078

1
Out of stock

14090

COVER,HEAD

14090-1476

1
Out of stock

92002

BOLT,FLANGED,6X22.5

92002-1327

1
Out of stock

92002A

BOLT,6X8

92002-1944

1
Out of stock

92005

FITTING,REED VALVE

92005-1006

1
Out of stock

92055

RING-O,HEAD COVER BOLT

92055-1352

1
Out of stock

92071

GROMMET

92071-1219

1
Out of stock

92160

DAMPER,HEAD COVER

92160-1438

1
Out of stock
