1996 Kawasaki KLX650 Air Cleaner Diagram

← All diagrams

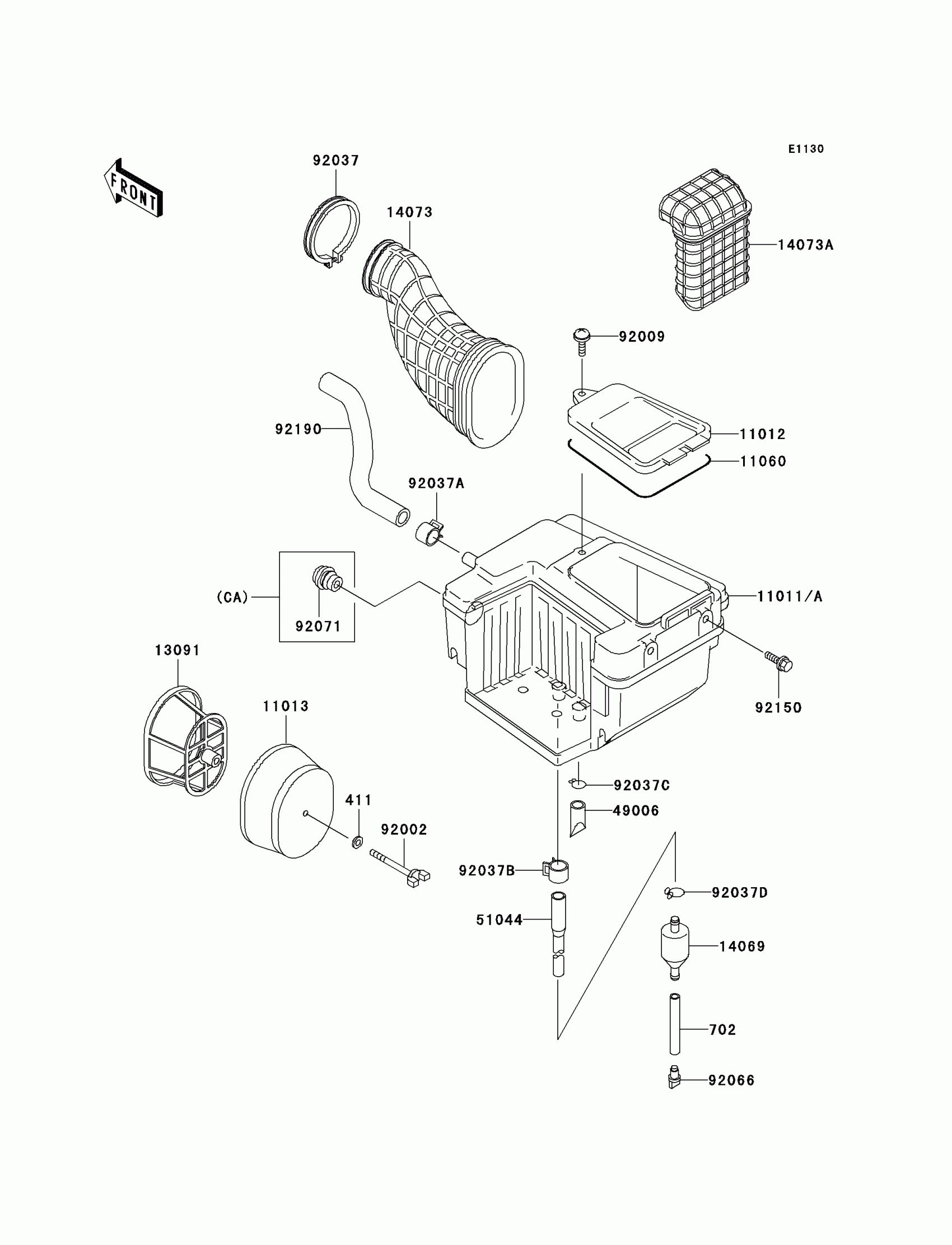

Find the part on the Air Cleaner diagram for your 1996 Kawasaki KLX650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Kawasaki KLX650 Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

411

WASHER-PLAIN,6MM

411E0600

1

$1.19

In stock

702

1

$10.53

In stock

11012

CAP,AIR FILTER

11012-1829

1
Out of stock

11013

ELEMENT-AIR FILTER

11013-1152

1

$23.16

In stock

11060

GASKET,AIR FILTER CAP

11060-1320

1
Out of stock

13091

HOLDER

13091-1473

1

$26.56

In stock

14069

BREATHER

14069-1051

1

$8.09

In stock

14073

DUCT,CARBURETOR-AIR FILTER

14073-1544

1
Out of stock

14073A

DUCT,AIR INLET

14073-1577

1

$44.57

In stock

49006

BOOT

49006-1211

1

$5.25

In stock

51044

TUBE-ASSY

51044-1155

1
Out of stock

92002

BOLT

92002-1904

1
Out of stock

92009

SCREW

92009-1460

1
Out of stock

92037

CLAMP

92037-1859

1

$6.88

In stock

92037A

CLAMP

92037-1860

1
Out of stock

92037B

CLAMP

92037-1861

1

$8.95

In stock

92037C

CLAMP,14.5MM

92037-1900

1

$3.87

In stock

92037D

CLAMP,TUBE

92037-1972

1

$3.43

In stock

92066

PLUG,DRAIN

92066-1211

1

$6.75

In stock

92150

BOLT,FLANGED,6X16

92150-1506

1

$3.97

In stock

92190

TUBE,BREATHER

92190-1471

1
Out of stock

11011

CASE-AIR FILTER

11011-1429

1
Out of stock

11011A

CASE-AIR FILTER

11011-1430

1
Out of stock

92071

GROMMET,AIR FILTER

92071-1112

1
Out of stock
