1996 Kawasaki KLX650 Crankshaft Diagram

← All diagrams

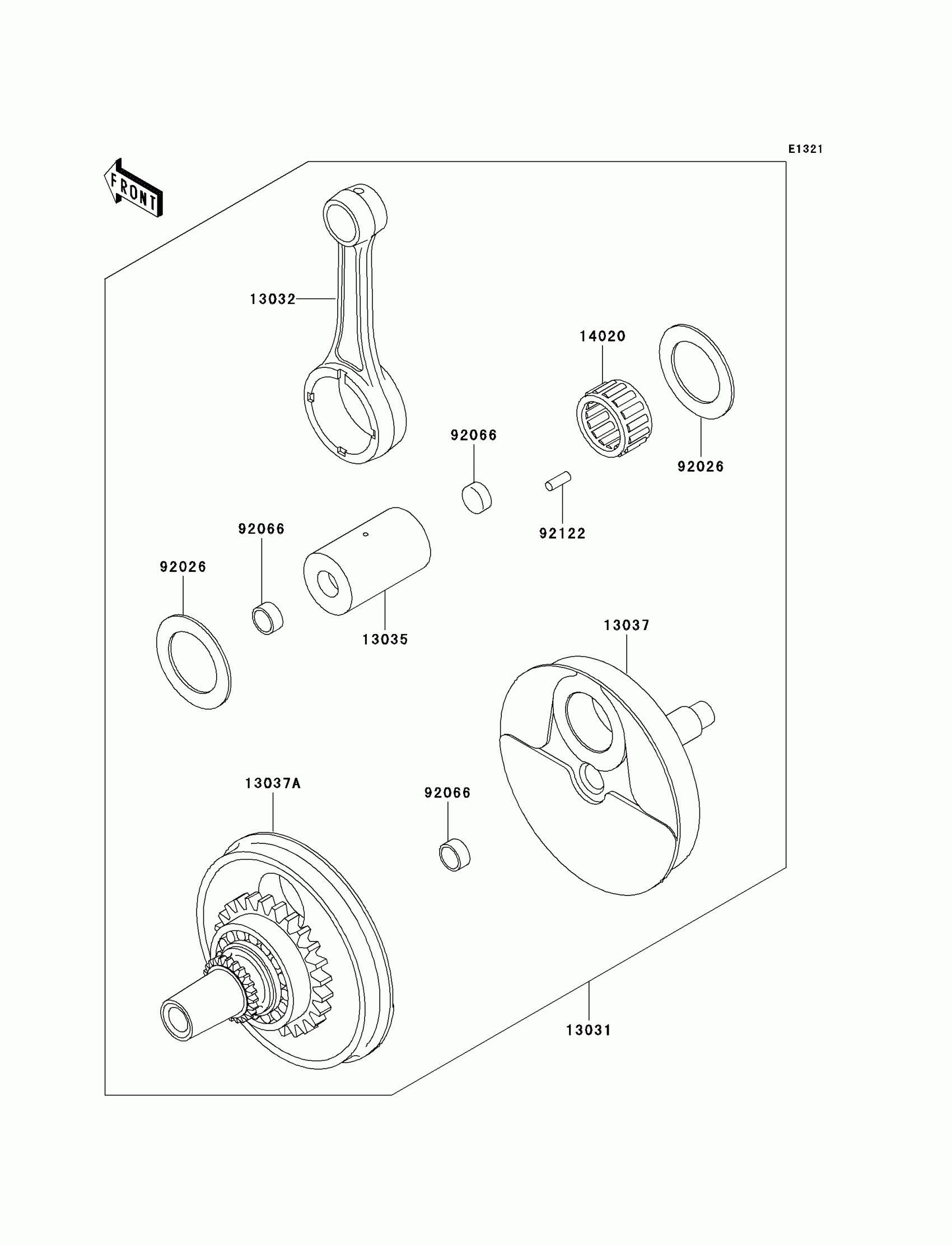

Find the part on the Crankshaft diagram for your 1996 Kawasaki KLX650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Kawasaki KLX650 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT-COMP

13031-1378

1
Out of stock

13032

ROD-CONNECTING

13032-1207

1
Out of stock

13035

PIN-CRANK

13035-1052

1

$102.34

In stock

13037

CRANKSHAFT,RH

13037-1441

1
Out of stock

13037A

CRANKSHAFT,LH

13037-5083

1
Out of stock

14020

RETAINER

14020-1094

1
Out of stock

92026

SPACER,38X58X1.5

92026-1204

1

$17.10

In stock

92066

PLUG

92066-1154

1

$3.69

In stock

92122

ROLLER,B6

92122-1163

1

$2.49

In stock
