1996 Kawasaki KLX650 Balancer Diagram

← All diagrams

Find the part on the Balancer diagram for your 1996 Kawasaki KLX650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

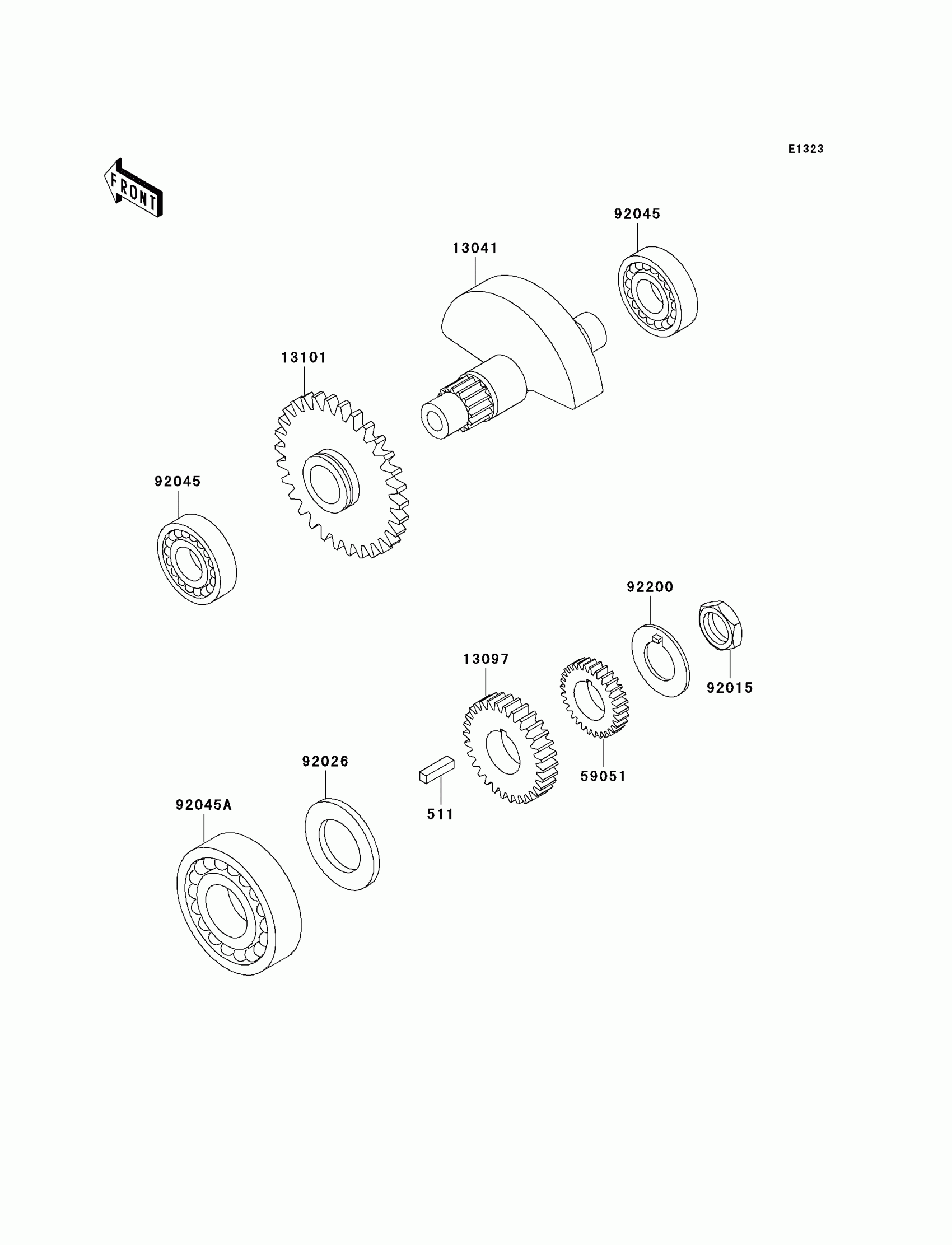

1996 Kawasaki KLX650 Balancer Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

511

KEY-SUNK

511A0520

1

$2.17

In stock

13041

BALANCER

13041-1105

1
Out of stock

13097

1

$72.18

In stock

13101

GEAR-ASSY,BALANCER

13101-1205

1
Out of stock

59051

GEAR-SPUR,27T

59051-1145

1

$57.45

In stock

92015

NUT,22MM

92015-1890

1

$13.51

In stock

92026

SPACER,30X50X4

92026-1280

1

$19.25

In stock

92045

BEARING-BALL,#6204

92045-1032

1

$23.71

In stock

92045A

BEARING-BALL,TM-SX08A50C3

92045-1187

1
Out of stock

92200

WASHER,CLAW

92200-1157

1
Out of stock
