1996 Kawasaki KLX650 Crankcase Diagram

← All diagrams

Find the part on the Crankcase diagram for your 1996 Kawasaki KLX650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

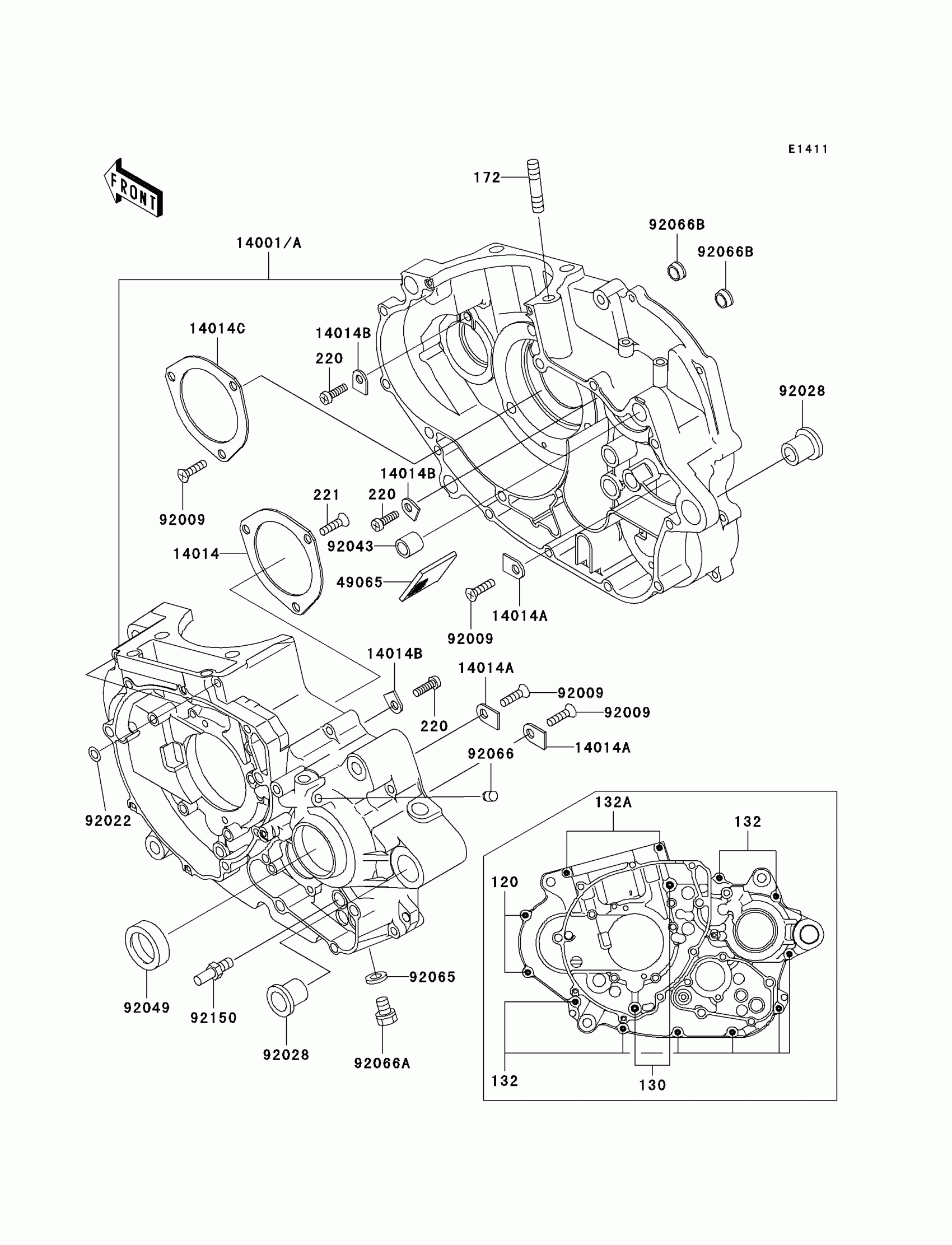

1996 Kawasaki KLX650 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X40

120Z0640

1
Out of stock

130

BOLT-FLANGED

130Z0865

1
Out of stock

132

BOLT-FLANGED-SMALL,6X40

132Y0640

1
Out of stock

132A

BOLT-FLANGED-SMALL

132Y0695

1
Out of stock

172

BOLT-STUD,8X25

172G0825

1

$2.56

In stock

220

SCREW PAN HEAD 6X12

220B0612

1
Out of stock

221

1

$0.63

In stock

14001A

SET-CRANKCASE

14001-5338

1
Out of stock

14014

PLATE-POSITION

14014-1051

1
Out of stock

14014A

PLATE-POSITION

14014-1057

1
Out of stock

14014B

PLATE-POSITION,ROD

14014-1080

1
Out of stock

14014C

PLATE-POSITION

14014-1083

1
Out of stock

49065

FILTER-OIL

49065-1071

1

$13.81

In stock

92009

SCREW,8X16

92009-1703

1
Out of stock

92022

WASHER,6.2X11X1

92022-304

1
Out of stock

92028

BUSHING

92028-1694

1
Out of stock

92043

PIN,11.5X14X14

92043-1279

1

$3.97

In stock

92049

SEAL-OIL,TC32457

92049-1159

1
Out of stock

92065

GASKET,12X22X2

92065-097

1

$0.76

In stock

92066

PLUG,OIL LINE,7.2X8

92066-1012

1

$5.66

In stock

92066A

1

$4.88

In stock

92066B

PLUG

92066-1282

1

$5.66

In stock

92150

BOLT,RETURN SPRING

92150-1803

1

$9.22

In stock
