1996 Kawasaki KLX650 Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 1996 Kawasaki KLX650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

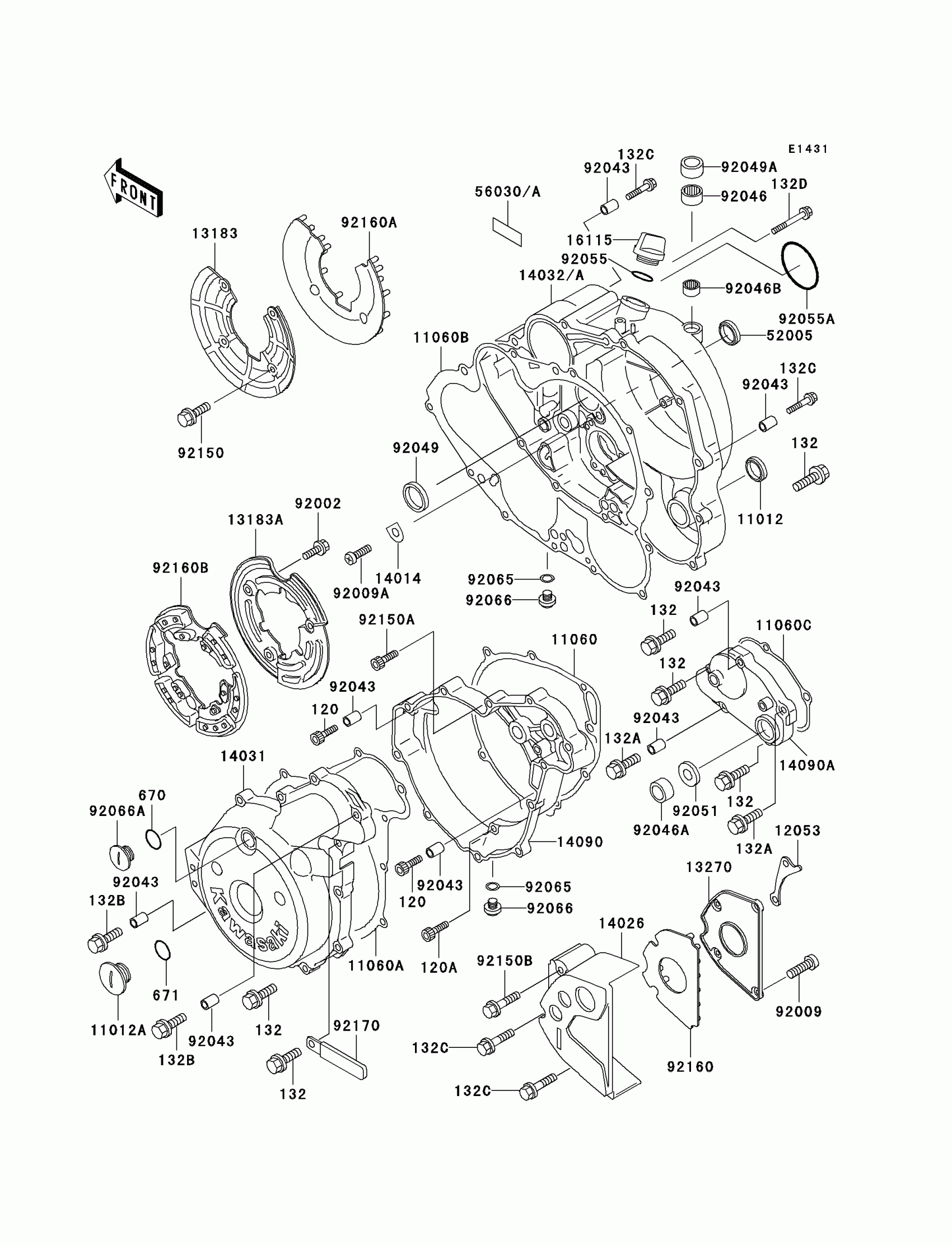

1996 Kawasaki KLX650 Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP

11012-1567

1

$9.49

In stock

11012A

CAP

11012-1616

1
Out of stock

11060

GASKET,GENERATOR

11060-1293

1
Out of stock

11060A

GASKET,GENERATOR COVER

11060-1313

1
Out of stock

11060B

GASKET,CLUTCH COVER

11060-1363

1

$43.65

In stock

11060C

1

$6.54

In stock

12053

GUIDE-CHAIN

12053-1334

1

$5.17

In stock

13183

PLATE,CLUTCH COVER

13183-1937

1
Out of stock

13183A

PLATE,GENERATOR COVER

13183-1988

1
Out of stock

13270

PLATE,CHAIN COVER

13270-1285

1
Out of stock

14014

PLATE-POSITION,ROD

14014-1116

1
Out of stock

14026

COVER-CHAIN

14026-1195

1

$69.50

In stock

14031

COVER-GENERATOR

14031-1274

1
Out of stock

14032A

COVER-CLUTCH

14032-1407

1
Out of stock

14090

1

$218.99

In stock

14090A

COVER,TRANSMISSION

14090-1256

1
Out of stock

16115

CAP-OIL FILLER

16115-1053

1

$9.67

In stock

52005

GAUGE,OIL LEVEL

52005-1057

1

$23.13

In stock

56030A

LABEL,OIL

56030-1174

1
Out of stock

92002

BOLT,6X8

92002-1944

1
Out of stock

92009

SCREW,TAPPING,4X8

92009-1155

1
Out of stock

92009A

SCREW,6X10

92009-1563

1
Out of stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92046

BEARING-NEEDLE,HK1210

92046-1010

1
Out of stock

92046A

BEARING-NEEDLE,HK1312

92046-1148

1
Out of stock

92046B

BEARING-NEEDLE,6BTM109

92046-1217

1
Out of stock

92049

SEAL-OIL,SCY 15X30X7

92049-1158

1
Out of stock

92049A

SEAL-OIL,TB12205.5

92049-1271

1
Out of stock

92051

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92055

RING-O

92055-012

1

$0.95

In stock

92055A

RING-O,62.6X66X3.1

92055-1221

1

$7.04

In stock

92065

1

$3.24

In stock

92066

PLUG,12X10

92066-1222

1

$9.80

In stock

92066A

PLUG,DRAIN

92066-1380

1
Out of stock

92150

BOLT,5X8

92150-1406

1

$3.56

In stock

92150A

BOLT,SOCKET,6X22

92150-1654

1
Out of stock

92150B

BOLT,6X40

92150-1830

1
Out of stock

92160

DAMPER,CHAIN COVER

92160-1389

1

$24.73

In stock

120

BOLT-SOCKET,6X35

120P0635

1
Out of stock

120A

BOLT-SOCKET

120Z0625

1
Out of stock

132

BOLT-FLANGED-SMALL,6X25

132Y0625

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X30

132Y0630

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X35

132Y0635

1
Out of stock

132C

BOLT-FLANGED-SMALL,6X40

132Y0640

1
Out of stock

132D

BOLT-FLANGED-SMALL,6X80

132Y0680

1
Out of stock

670

O RING,18MM

670B2018

1

$1.25

In stock

671

O RING,40MM

671B2540

1

$4.93

In stock

92160A

DAMPER,CLUTCH COVER

92160-1390

1
Out of stock

92160B

DAMPER,GENERATOR COVER

92160-1411

1
Out of stock

92170

CLAMP

92170-1514

1

$3.43

In stock
