1996 Kawasaki KLX650 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 1996 Kawasaki KLX650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

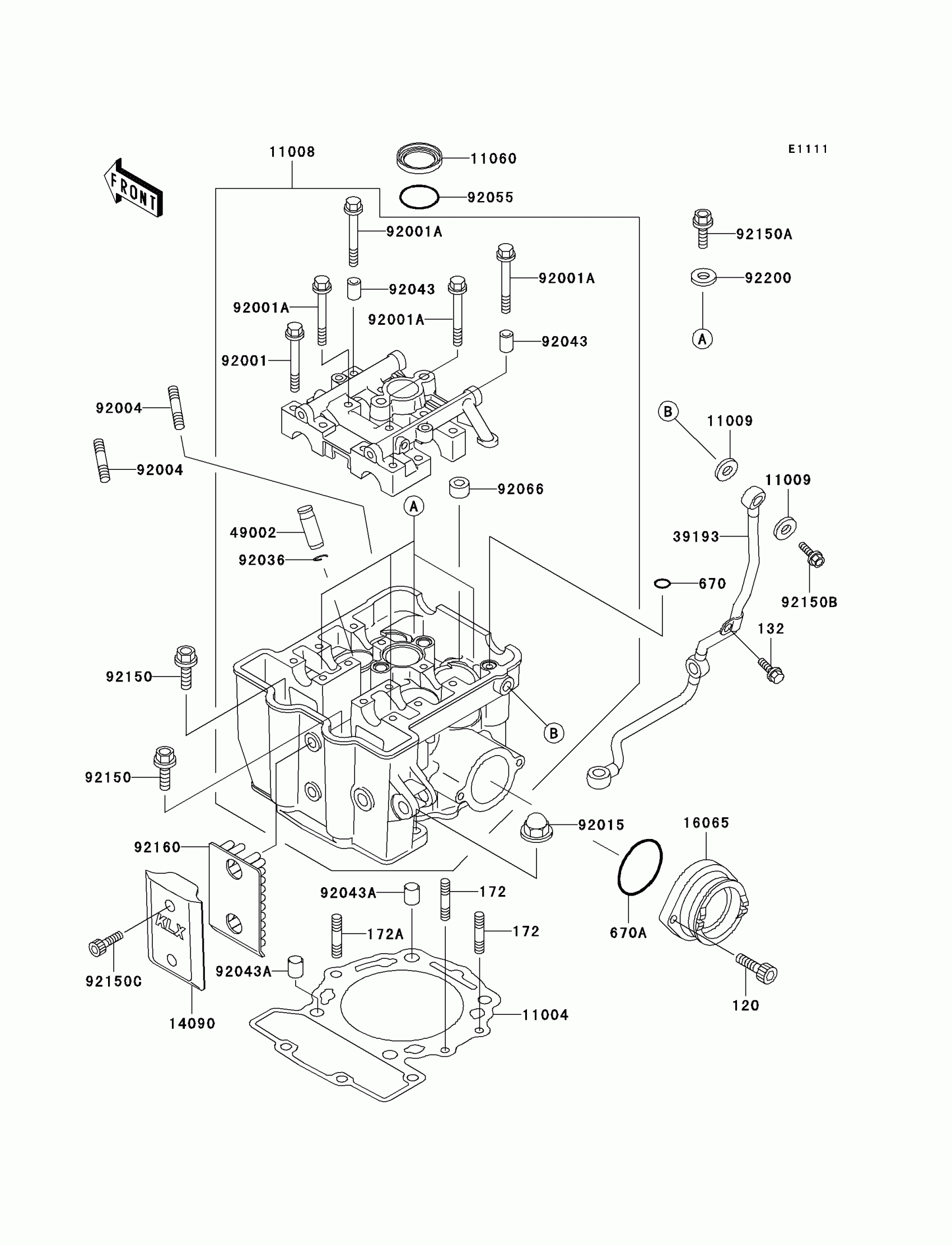

1996 Kawasaki KLX650 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X20

120Z0620

1
Out of stock

132

BOLT-FLANGED-SMALL,6X10

132Y0610

1
Out of stock

172

BOLT-STUD,6X22

172G0622

1
Out of stock

172A

BOLT-STUD,8X25

172G0825

1

$2.56

In stock

670

O RING,8MM

670D1508

1

$3.43

In stock

670A

O RING,48MM

670D3048

1

$5.84

In stock

11004

GASKET-HEAD

11004-1253

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-1275

1
Out of stock

11009

GASKET,10X14.5X1.5

11009-1105

1

$5.15

In stock

11060

GASKET,CAP

11060-1297

1

$11.93

In stock

14090

COVER

14090-1342

1
Out of stock

16065

HOLDER-CARBURETOR

16065-1104

1

$106.73

In stock

39193

PIPE-OIL

39193-1012

1
Out of stock

49002

GUIDE-VALVE

49002-1125

—

$33.84

In stock

92001

BOLT,FLANGED,6X38

92001-1105

1

$3.72

In stock

92001A

BOLT,6X46

92001-1872

1

$3.43

In stock

92004

STUD,8X22

92004-1217

1
Out of stock

92015

NUT,8MM

92015-1402

1

$3.72

In stock

92036

1

$0.53

In stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92043A

PIN,10.1X12X14

92043-4009

1

$4.93

In stock

92055

RING-O,30MM

92055-1047

1

$8.24

In stock

92066

PLUG,PT1/2X12.5

92066-1253

1

$8.75

In stock

92150

BOLT,SOCKET,8X30

92150-1156

1

$5.25

In stock

92150A

BOLT,10X225

92150-1618

1

$24.73

In stock

92150B

BOLT,BANJO,10X23

92150-1641

1

$11.26

In stock

92150C

BOLT,SOCKET,6X25

92150-1714

1
Out of stock

92160

DAMPER

92160-1441

1
Out of stock

92200

WASHER,10.5X19X2.3

92200-1042

1
Out of stock
