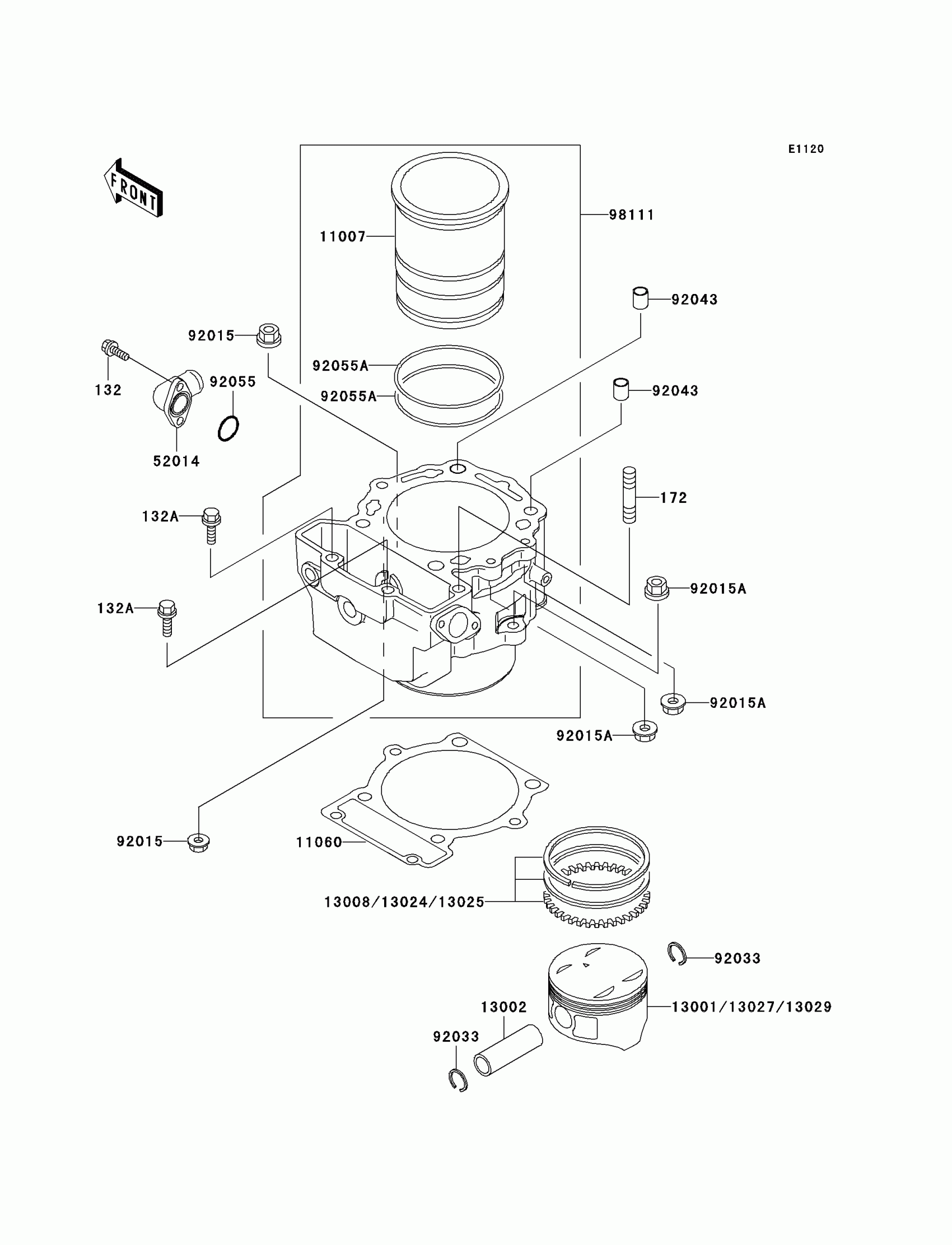

Find the part on the Cylinder/piston diagram for your 1996 Kawasaki KLX650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Kawasaki KLX650 Cylinder/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

BOLT-FLANGED-SMALL,8X25

132G0825

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X14

132Y0614

1
Out of stock

172

BOLT-STUD,8X20

172G0820

1
Out of stock

11007

LINER-CYLINDER

11007-1127

1
Out of stock

11060

1

$19.03

In stock

13001

PISTON-ENGINE

13001-1401

1
Out of stock

13002

PIN-PISTON

13002-1101

1

$32.89

In stock

13008

RING-SET-PISTON

13008-1156

1

$116.14

In stock

13024

RING-SET-PISTON LL,O/S 1.00

13024-1095

—
Out of stock

13025

—

$123.91

In stock

13027

PISTON-ENGINE LL,O/S 1.00

13027-1174

—
Out of stock

13029

PISTON-ENGINE L,O/S 0.50

13029-1220

—
Out of stock

52014

ELBOW

52014-1084

1
Out of stock

92015

NUT,6MM

92015-1365

1

$3.97

In stock

92015A

NUT,8MM

92015-1402

1

$3.72

In stock

92033

RING-SNAP

92033-1226

1

$3.10

In stock

92043

PIN,10.1X12X14

92043-4009

1

$4.93

In stock

92055

RING-O,19.5X1.5

92055-055

1

$3.43

In stock

92055A

RING-O

92055-1368

1

$15.46

In stock

98111

CYLINDER-COMP-ENGINE

98111-1059

1
Out of stock
