1996 Kawasaki KLX650 Radiator Diagram

← All diagrams

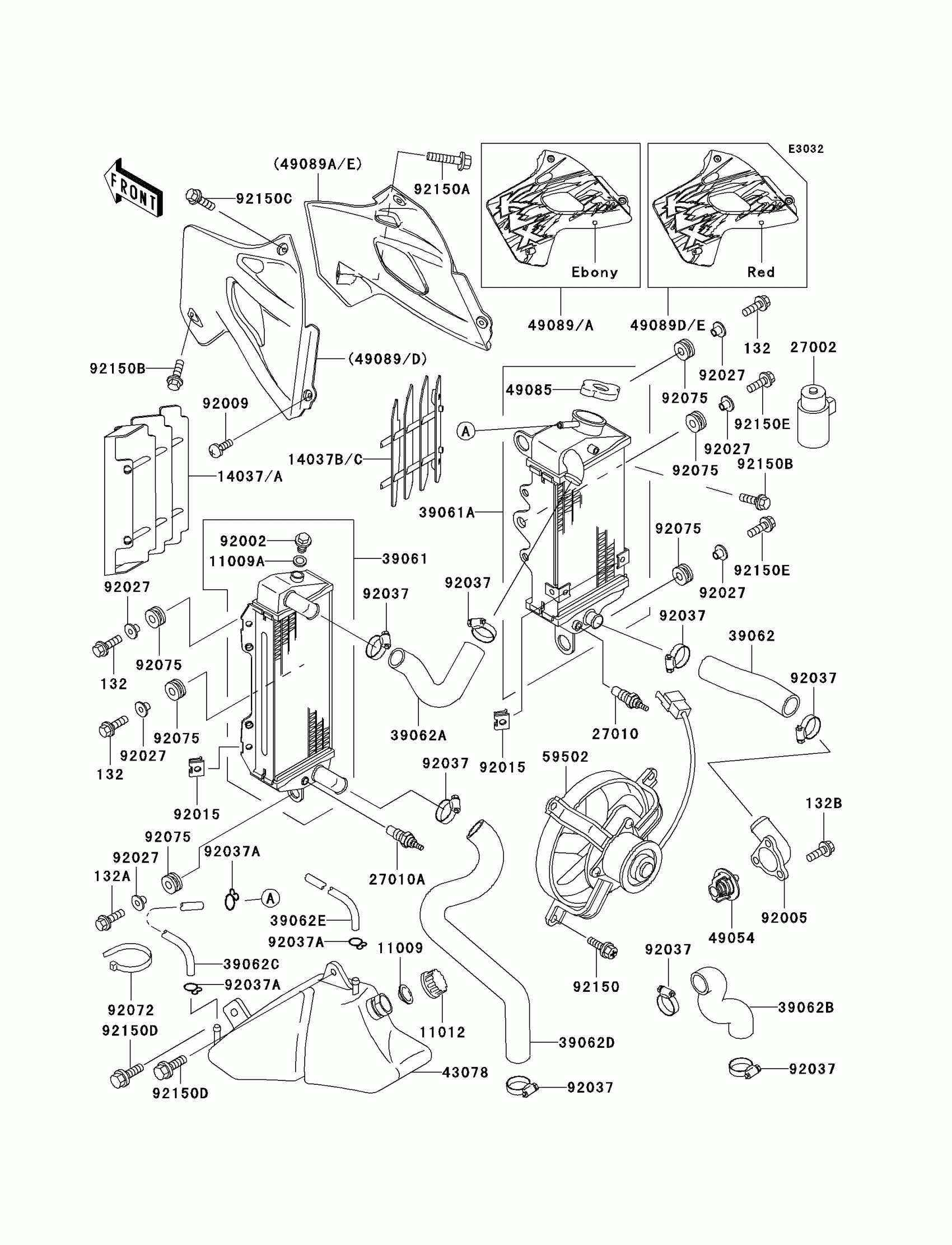

Find the part on the Radiator diagram for your 1996 Kawasaki KLX650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1996 Kawasaki KLX650 Radiator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11009

1

$1.25

In stock

11009A

GASKET,DRAIN BOLT

11009-1152

1

$7.44

In stock

11012

CAP

11012-1084

1

$1.31

In stock

14037

SCREEN,LH,S.RED

14037-1160-6B

1
Out of stock

14037B

SCREEN,RH,S.RED

14037-1164-6B

1
Out of stock

27002

RELAY-ASSY

27002-1051

1

$49.55

In stock

27010

SWITCH,FAN

27010-1180

1

$136.95

In stock

27010A

SWITCH,WARNING

27010-1199

1

$141.13

In stock

39061

RADIATOR-ASSY,LH

39061-1188

1
Out of stock

39061A

RADIATOR-ASSY,RH

39061-1189

1

$589.30

In stock

39062

1

$21.17

In stock

39062A

1

$21.75

In stock

39062B

1

$19.05

In stock

39062C

HOSE-COOLING,RESERVOIR

39062-1560

1
Out of stock

39062D

1

$61.78

In stock

39062E

1

$11.29

In stock

43078

RESERVOIR

43078-1128

1
Out of stock

49054

THERMOSTAT

49054-1053

1

$49.29

In stock

49085

CAP-ASSY-PRESSURE

49085-1066

1

$33.98

In stock

49089D

SHROUD-ENGINE,LH,S.RED

49089-5201-6B

1

$158.19

In stock

49089E

SHROUD-ENGINE,RH,S.RED

49089-5202-6B

1

$147.26

In stock

59502

FAN-ASSY

59502-1103

1
Out of stock

92002

BOLT,RADIATOR DRAIN

92002-1682

1
Out of stock

92005

FITTING

92005-1258

1
Out of stock

92009

SCREW,6X10

92009-1661

1
Out of stock

92015

NUT

92015-1487

1

$3.80

In stock

92027

COLLAR

92027-194

1

$4.37

In stock

92037

CLAMP,COOLING HOSE

92037-1589

1

$14.60

In stock

92037A

CLAMP

92037-1712

1

$3.97

In stock

92072

BAND,L=140

92072-1293

1

$5.61

In stock

132

BOLT-FLANGED-SMALL,6X20

132J0620

1
Out of stock

132A

BOLT-FLANGED-SMALL,6X25

132J0625

1
Out of stock

132B

BOLT-FLANGED-SMALL,6X12

132Y0612

1
Out of stock

92075

1

$3.72

In stock

92150

BOLT,6X12

92150-1186

1

$2.92

In stock

92150A

BOLT,6X20

92150-1339

1

$3.49

In stock

92150B

BOLT,6X14

92150-1340

1

$4.02

In stock

92150C

BOLT,6X12

92150-1435

1

$3.43

In stock

92150D

BOLT,FLANGED,6X14

92150-1504

1

$3.81

In stock

92150E

BOLT,6X25

92150-1829

1

$3.43

In stock
