1996 Kawasaki KLX650 Oil Pump Diagram

← All diagrams

Find the part on the Oil Pump diagram for your 1996 Kawasaki KLX650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

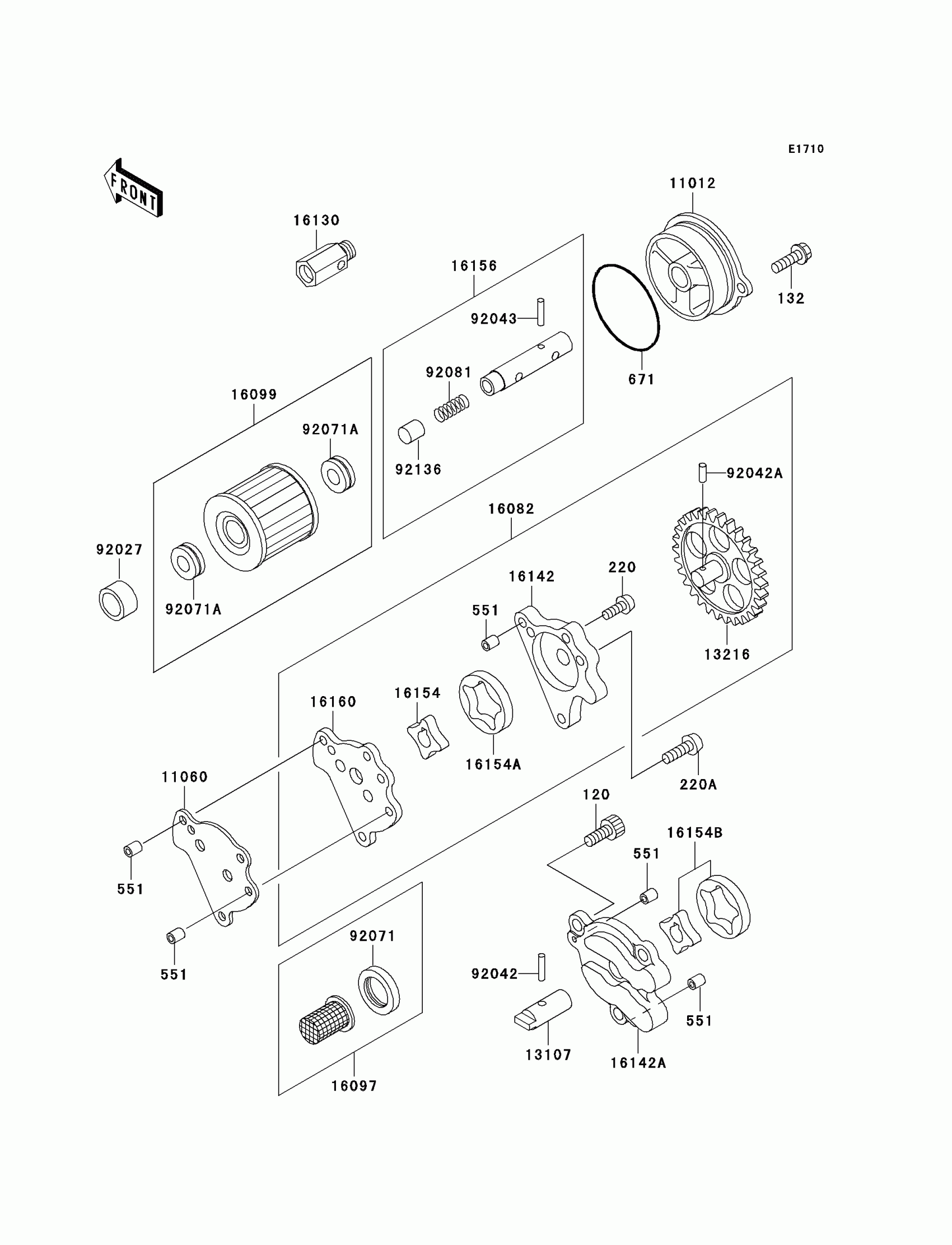

1996 Kawasaki KLX650 Oil Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X16

120P0616

1
Out of stock

132

BOLT-FLANGED-SMALL,6X20

132Y0620

1
Out of stock

220

1

$1.32

In stock

220A

SCREW PAN HEAD 6X25

220B0625

1
Out of stock

551

PIN-DOWEL,6X8

551A0608

1

$3.53

In stock

671

O RING,55MM

671B2555

1

$4.93

In stock

11012

CAP,OIL FILTER

11012-1826

1

$69.73

In stock

11060

GASKET,OIL PUMP

11060-1115

1

$4.58

In stock

13107

SHAFT,OIL PUMP

13107-1304

1
Out of stock

13216

GEAR-COMP,OIL PUMP

13216-1139

1
Out of stock

16082

PUMP-ASSY-OIL

16082-1129

1

$226.42

In stock

16097

FILTER-ASSY-OIL

16097-1001

1

$9.69

In stock

16099

ELEMENT-OIL FILTER

16099-004

1

$7.36

In stock

16130

VALVE-ASSY-RELIEF

16130-1001

1

$41.95

In stock

16142

COVER-PUMP

16142-1078

1

$38.81

In stock

16142A

COVER-PUMP

16142-1121

1

$43.05

In stock

16154

ROTOR-PUMP,INNER

16154-1069

1

$35.48

In stock

16154A

ROTOR-PUMP,OUTER

16154-1070

1

$35.48

In stock

16154B

ROTOR-PUMP,OIL

16154-1101

1

$36.77

In stock

16156

1

$21.56

In stock

16160

BODY

16160-1137

1

$36.42

In stock

92027

COLLAR,13X20X9

92027-1695

1

$7.86

In stock

92042

PIN,DOWEL,4X15.8

92042-014

1

$0.49

In stock

92042A

PIN,DOWEL,4X12.8

92042-041

1

$5.71

In stock

92043

1

$4.17

In stock

92071

1

$4.34

In stock

92071A

GROMMET,OIL FILTER

92071-101

1

$4.34

In stock

92081

SPRING,PISTON

92081-043

1

$4.34

In stock

92136

VALVE

92136-002

1

$4.14

In stock
