2014 Kawasaki KLX®110L Valve Diagram

← All diagrams

Find the part on the Valve diagram for your 2014 Kawasaki KLX®110L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

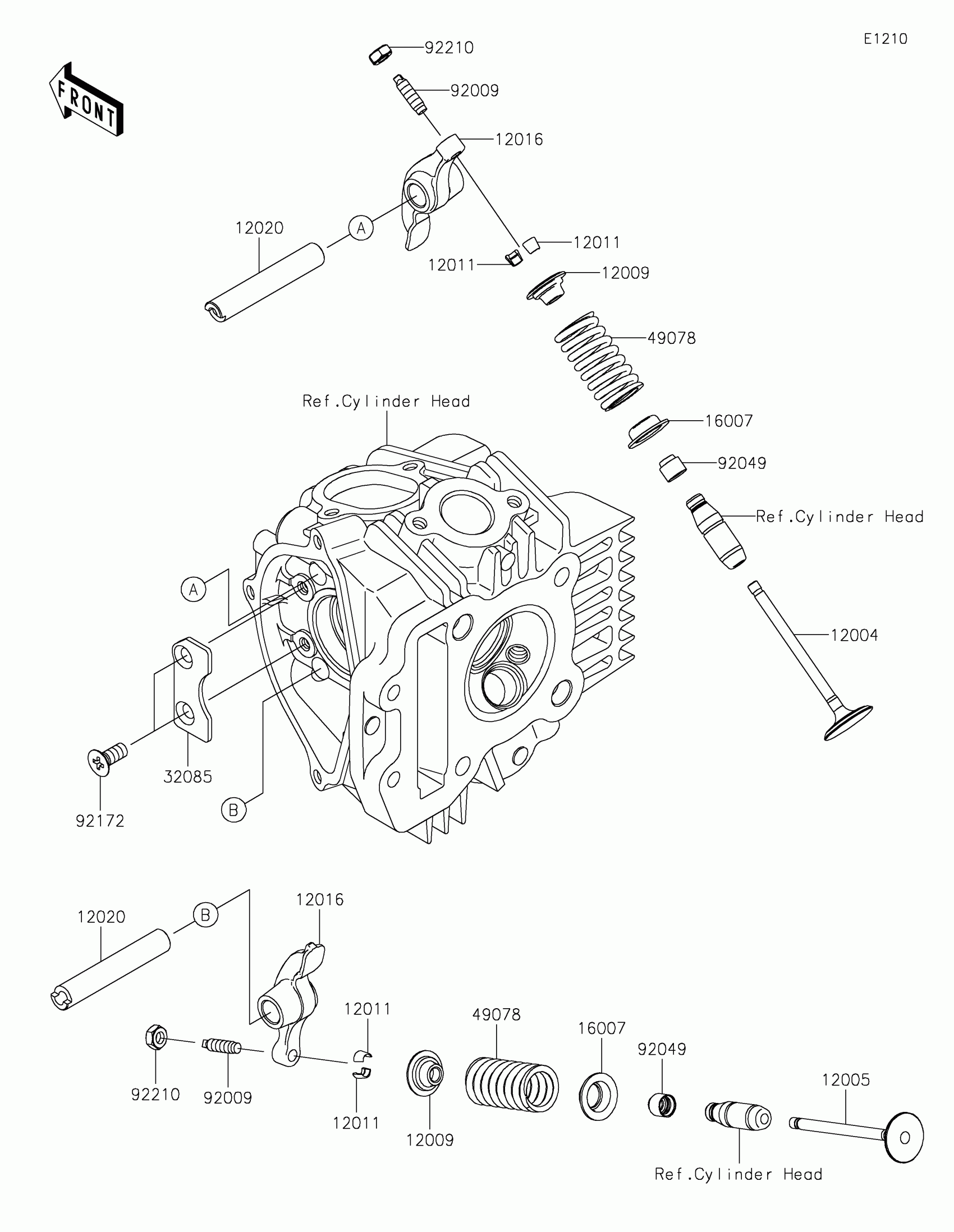

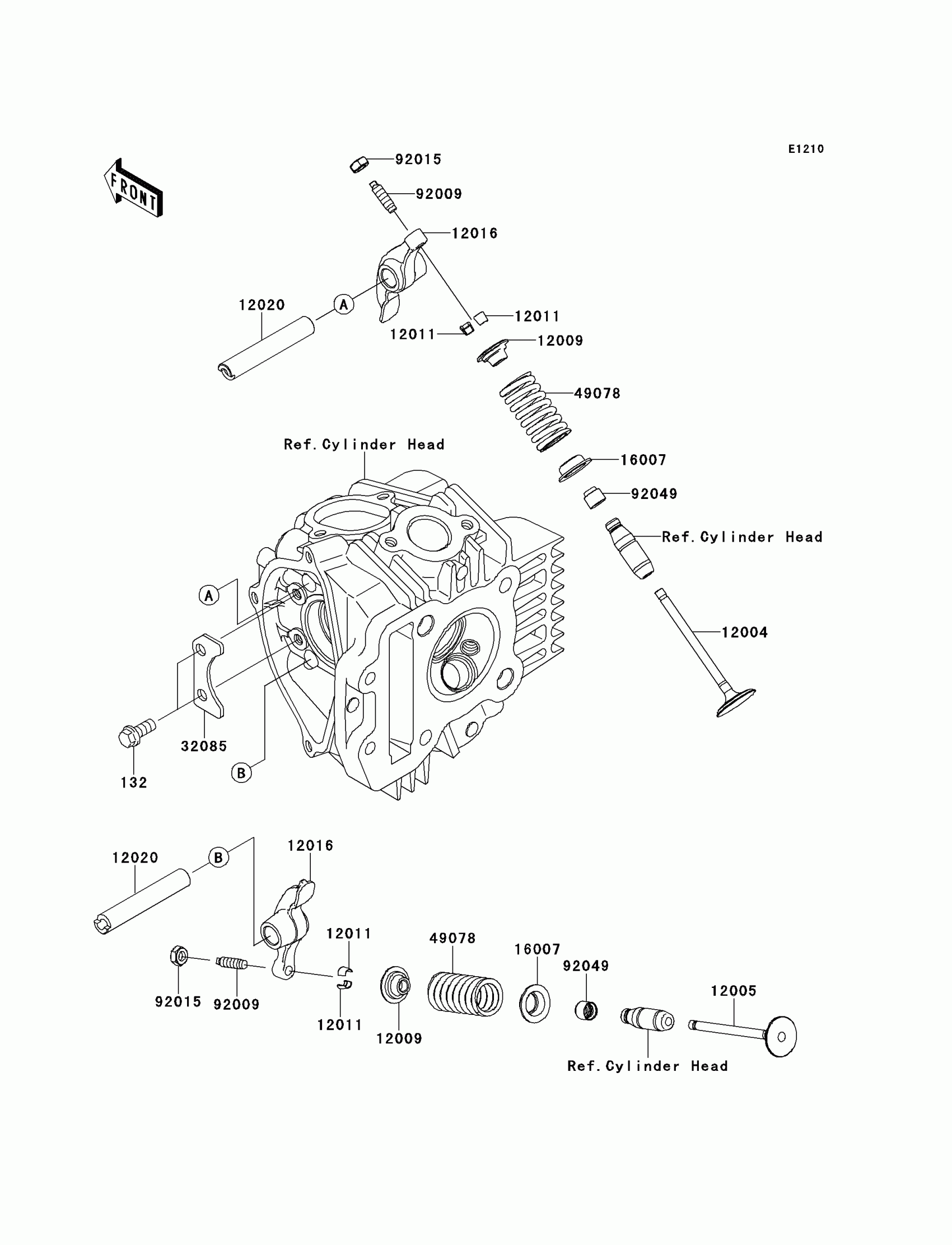

2014 Kawasaki KLX®110L Valve Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$1.31

In stock

12004

VALVE-INTAKE

12004-0045

1
Out of stock

12005

VALVE-EXHAUST

12005-0058

1
Out of stock

12009

1

$8.44

In stock

12011

COLLET

12011-1053

1

$4.34

In stock

12016

ARM-ROCKER

12016-0001

1

$36.31

In stock

12020

SHAFT-ROCKER

12020-0010

1

$19.54

In stock

16007

SEAT-SPRING,VALVE

16007-1187

1

$2.92

In stock

32085

STOPPER

32085-0107

1

$3.69

In stock

49078

SPRING-ENGINE VALVE

49078-1151

1

$5.97

In stock

92009

SCREW,VALVE ADJUST

92009-1109

1
Out of stock

92015

NUT,VALVE ADJUST LOCK

92015-1137

1
Out of stock

92049

SEAL-OIL,VSB 4.3 7.5 5.3 8.3

92049-1349

1
Out of stock
