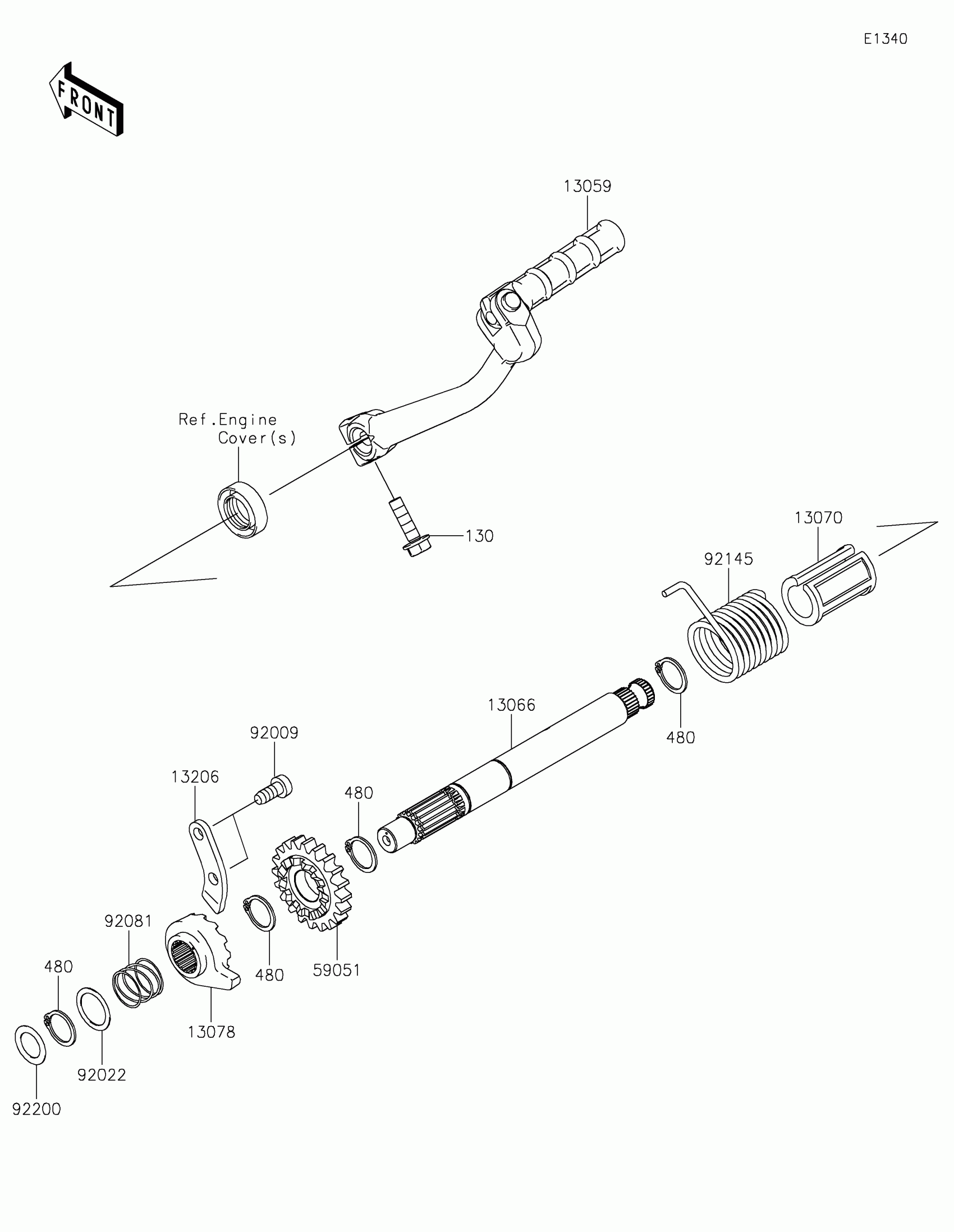

Kawasaki KLX®110L Kickstarter Mechanism Diagram

Description

Price

130

BOLT-FLANGED,6X22

130CA0622

$1.90

480

CIRCLIP-TYPE-C,16MM

480J1600

$3.29

13059

LEVER-KICK

13059-0046

$73.84

13066

SHAFT-KICK

13066-1108

Unavailable

13070

GUIDE,KICK SHAFT

13070-1035

$6.08

13078

RATCHET

13078-1069

$16.73

13206

GUIDE-KICK

13206-1006

$7.81

59051

GEAR-SPUR,KICK STARTER,22T

59051-1404

$30.21

92009

SCREW,TAPPING

92009-1104

$3.15

92022

WASHER,13.2X20X0.5

92022-1224

$3.29

92022A

WASHER,16.8X22X0.5

92022-315

$4.67

92081

SPRING,RATCHET

92081-122

$6.70

92145

SPRING,KICK STARTER

92145-0626

$4.63
