2014 Kawasaki KLX®110L Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 2014 Kawasaki KLX®110L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

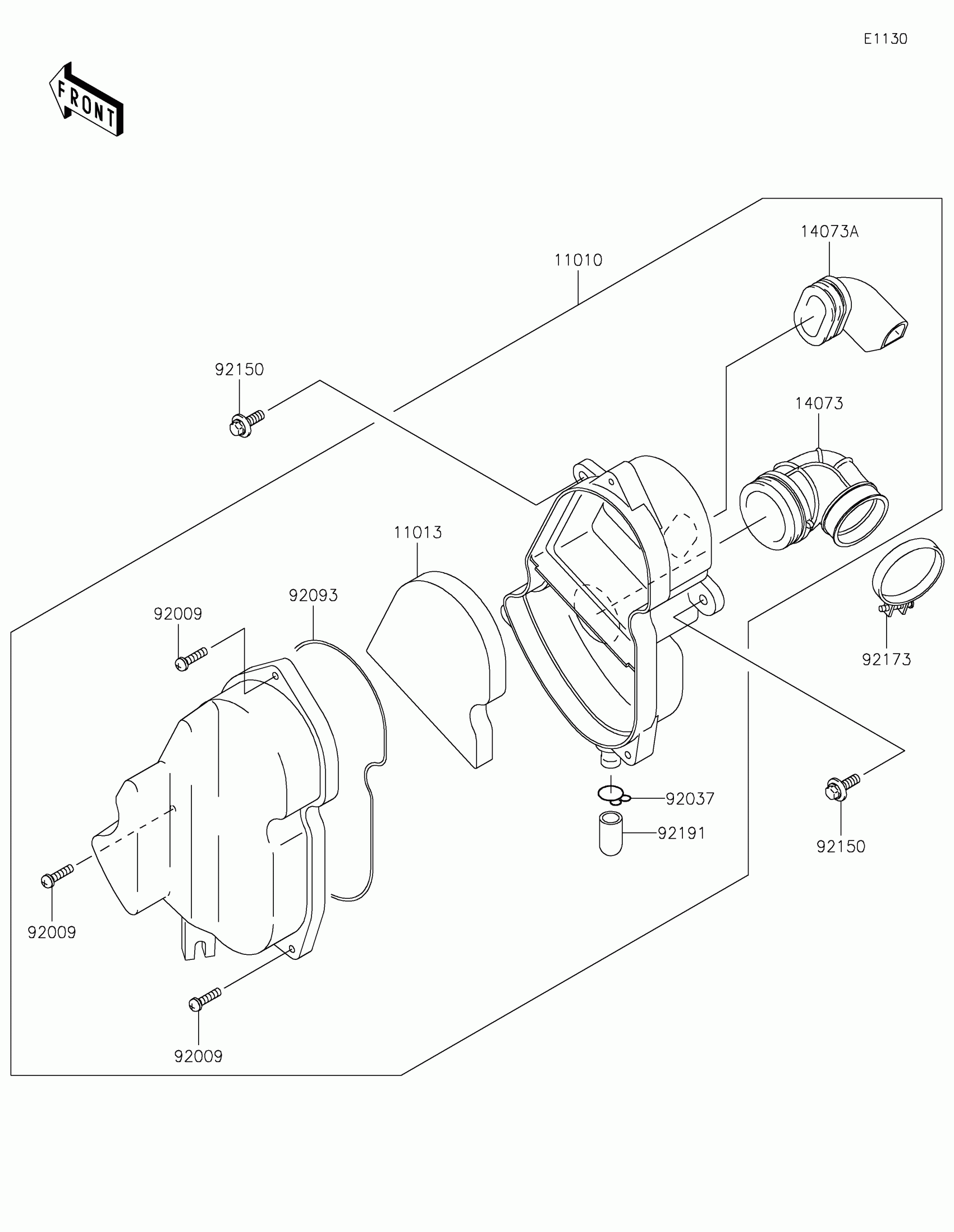

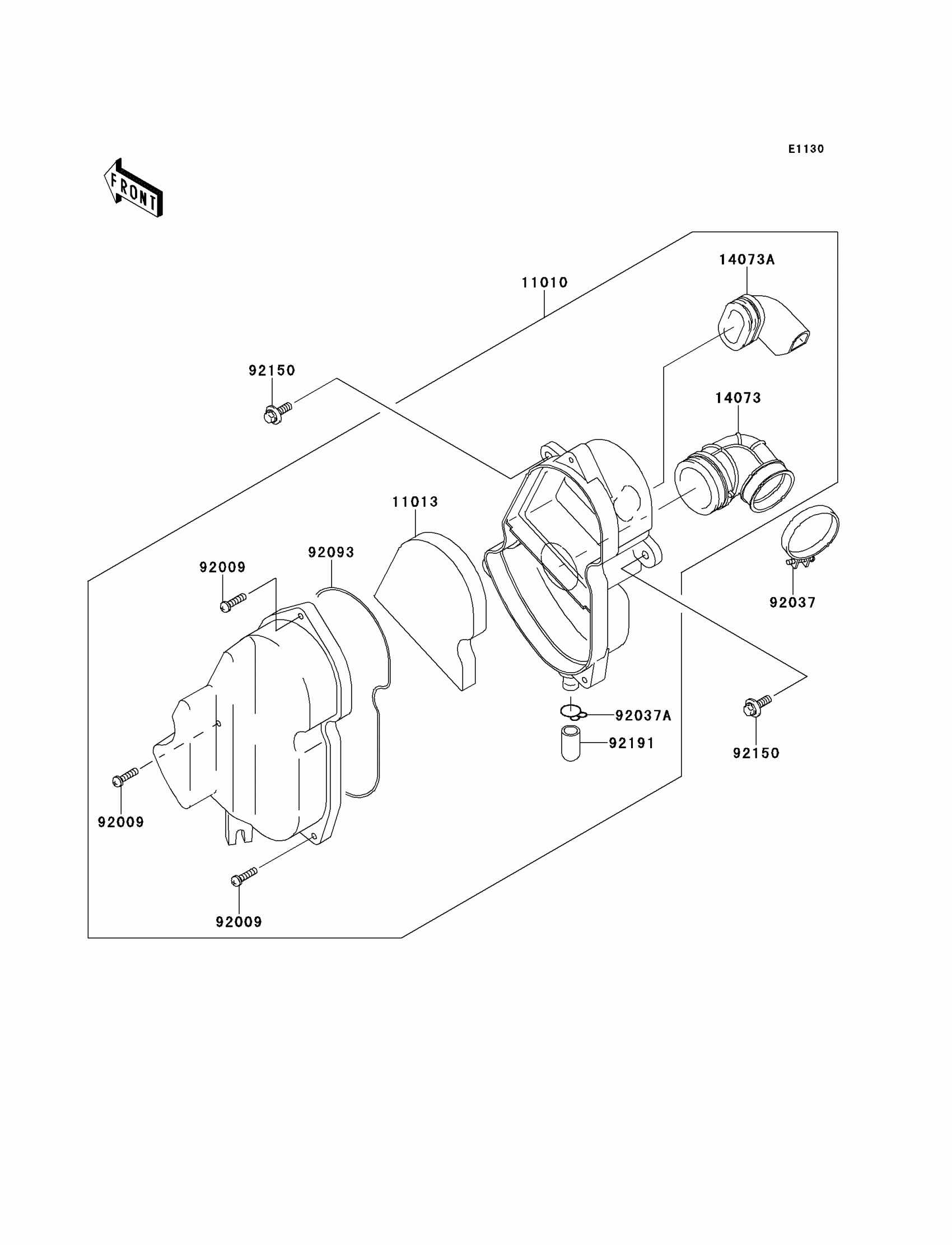

2014 Kawasaki KLX®110L Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11010

FILTER-ASSY-AIR

11010-1773

1

$135.68

In stock

11013

ELEMENT-AIR FILTER

11013-1294

1

$7.16

In stock

14073

DUCT,CARBURETOR

14073-1819

1

$16.39

In stock

14073A

DUCT,IN

14073-1820

1

$15.36

In stock

92009

SCREW,M5X20

92009-1990

1
Out of stock

92037

CLAMP

92037-1305

1

$7.18

In stock

92037A

CLAMP,14.5MM

92037-1900

1

$3.87

In stock

92093

SEAL,AIR CLEANER

92093-1560

1

$5.15

In stock

92150

BOLT,6X20

92150-1339

1

$3.49

In stock

92191

TUBE

92191-1704

1
Out of stock
