2014 Kawasaki KLX®110L Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2014 Kawasaki KLX®110L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

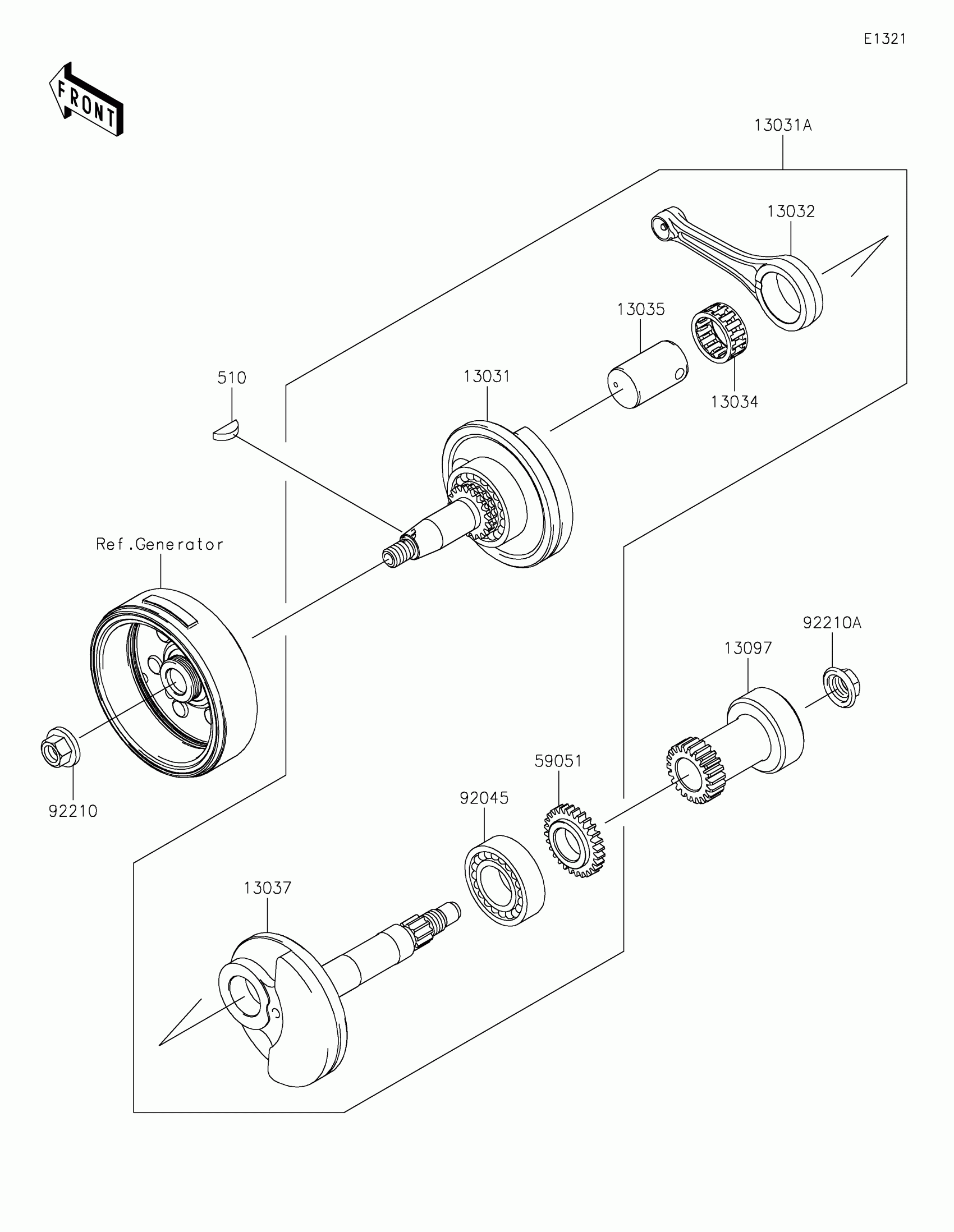

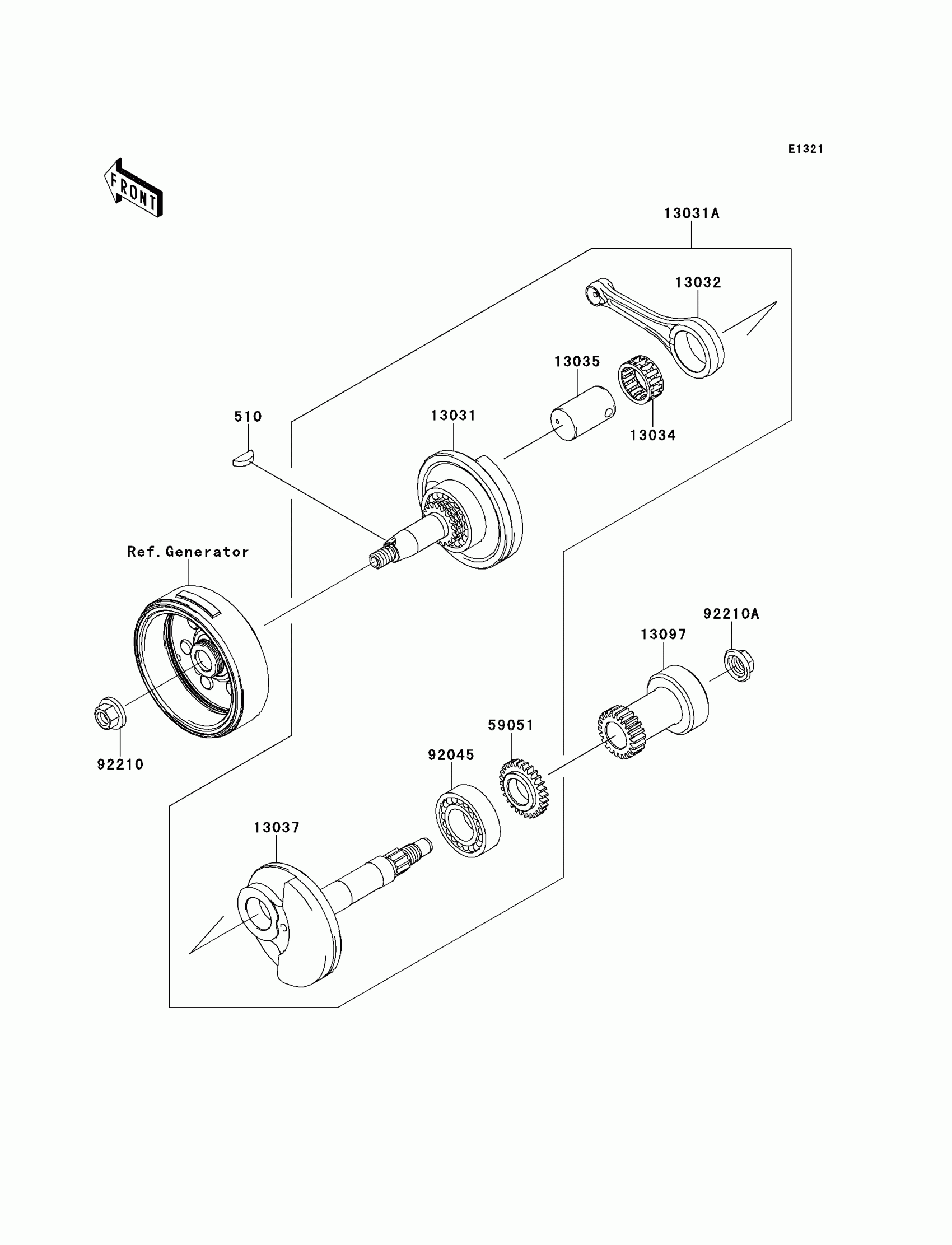

2014 Kawasaki KLX®110L Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

510

KEY-WOODRUFF

510A3200

1

$2.17

In stock

13031

CRANKSHAFT-COMP,LH

13031-0091

1

$131.85

In stock

13031A

CRANKSHAFT-COMP

13031-0126

1
Out of stock

13032

ROD-CONNECTING

13032-0074

1

$84.65

In stock

13034

1

$36.00

In stock

13035

PIN-CRANK

13035-0024

1

$47.56

In stock

13037

CRANKSHAFT,RH

13037-0128

1

$124.01

In stock

13097

GEAR-PRIMARY SPUR

13097-0120

1

$156.63

In stock

59051

GEAR-SPUR

59051-1402

1

$9.07

In stock

92045

1

$34.75

In stock

92210

NUT,12MM

92210-0176

1
Out of stock

92210A

NUT,14MM

92210-1374

1
Out of stock
