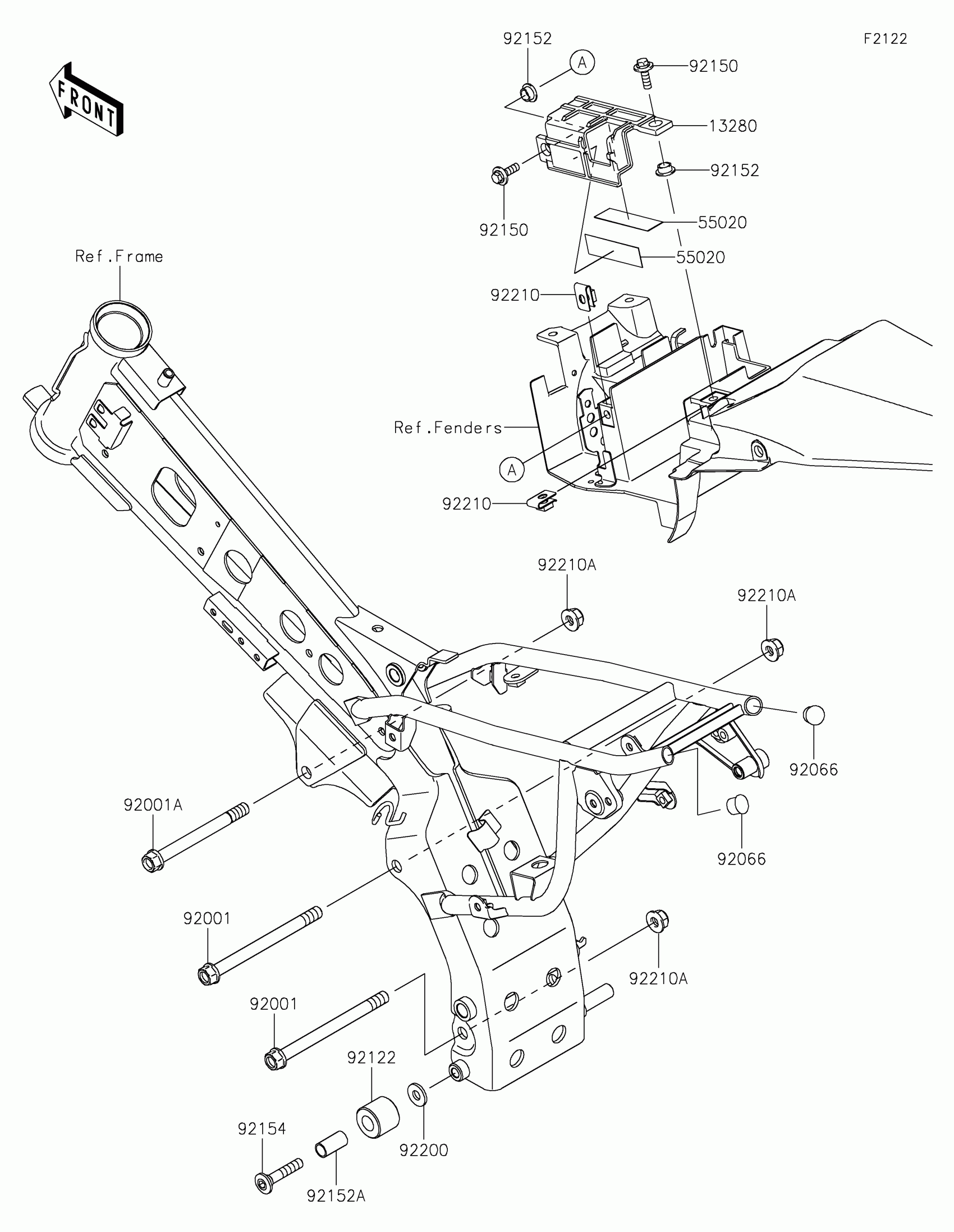

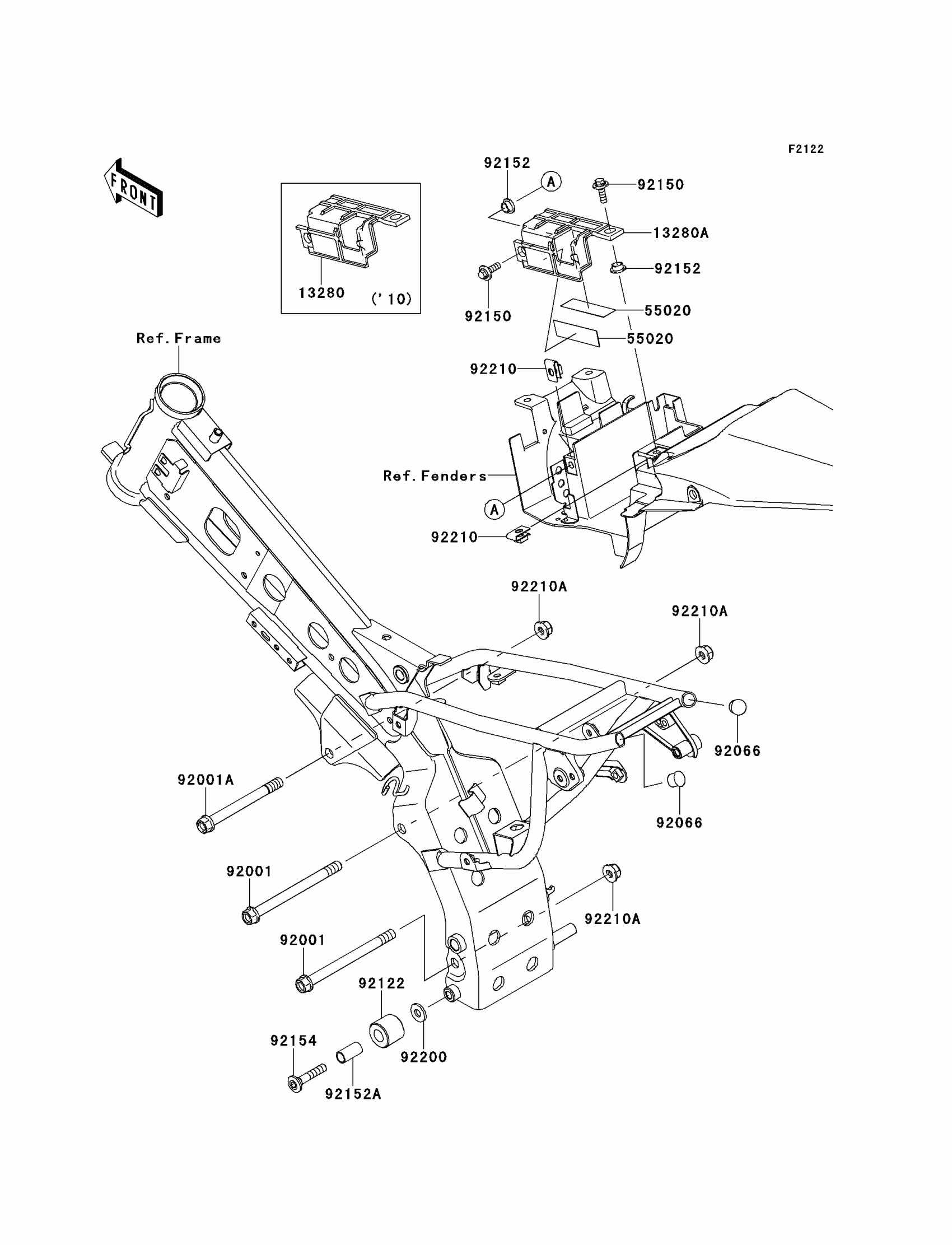

Kawasaki KLX®110L Engine Mount Diagram

Description

Price

13280A

HOLDER,BATTERY

13280-0384

$9.34

55020

GUARD

55020-0527

$7.86

92001

BOLT,FLANGED,10X125

92001-1720

$8.66

92001A

BOLT,FLANGED,10X105,BLACK

92001-1751

$8.10

92066

PLUG

92066-1081

$6.56

92122

ROLLER,CHAIN GUIDE

92122-0023

Unavailable

92150

BOLT,6X20

92150-1339

$3.35

92152

COLLAR

92152-0789

$3.25

92152A

COLLAR,10.3X12.7X25

92152-0831

$3.12

92154

BOLT,SOCKET,8X42

92154-0309

Unavailable

92200

WASHER,8.5X20X2.3

92200-1055

$3.56

92210

NUT,6MM

92210-0218

$1.81

92210A

NUT,LOCK,FLANGED,10MM

92210-1081

$9.39
