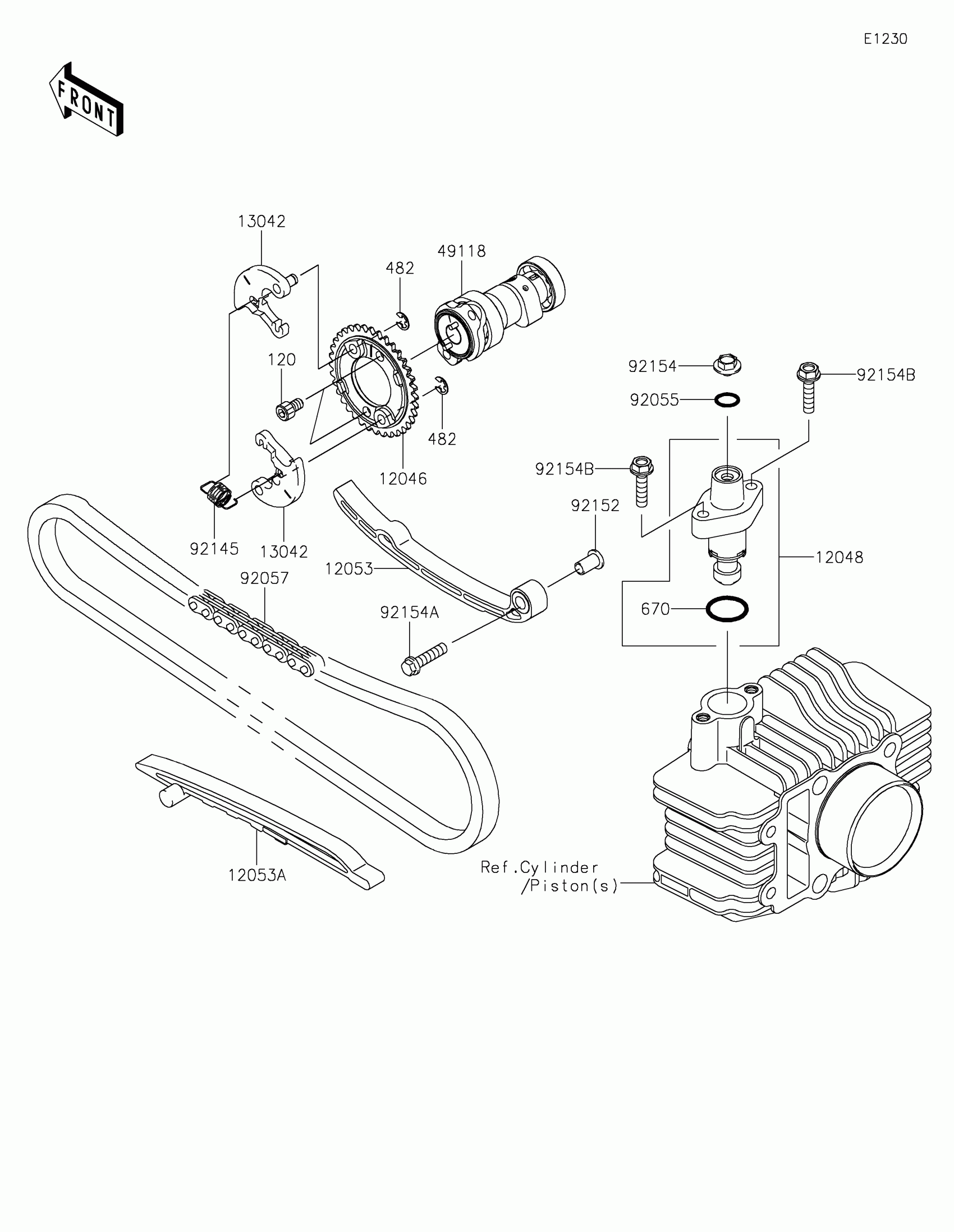

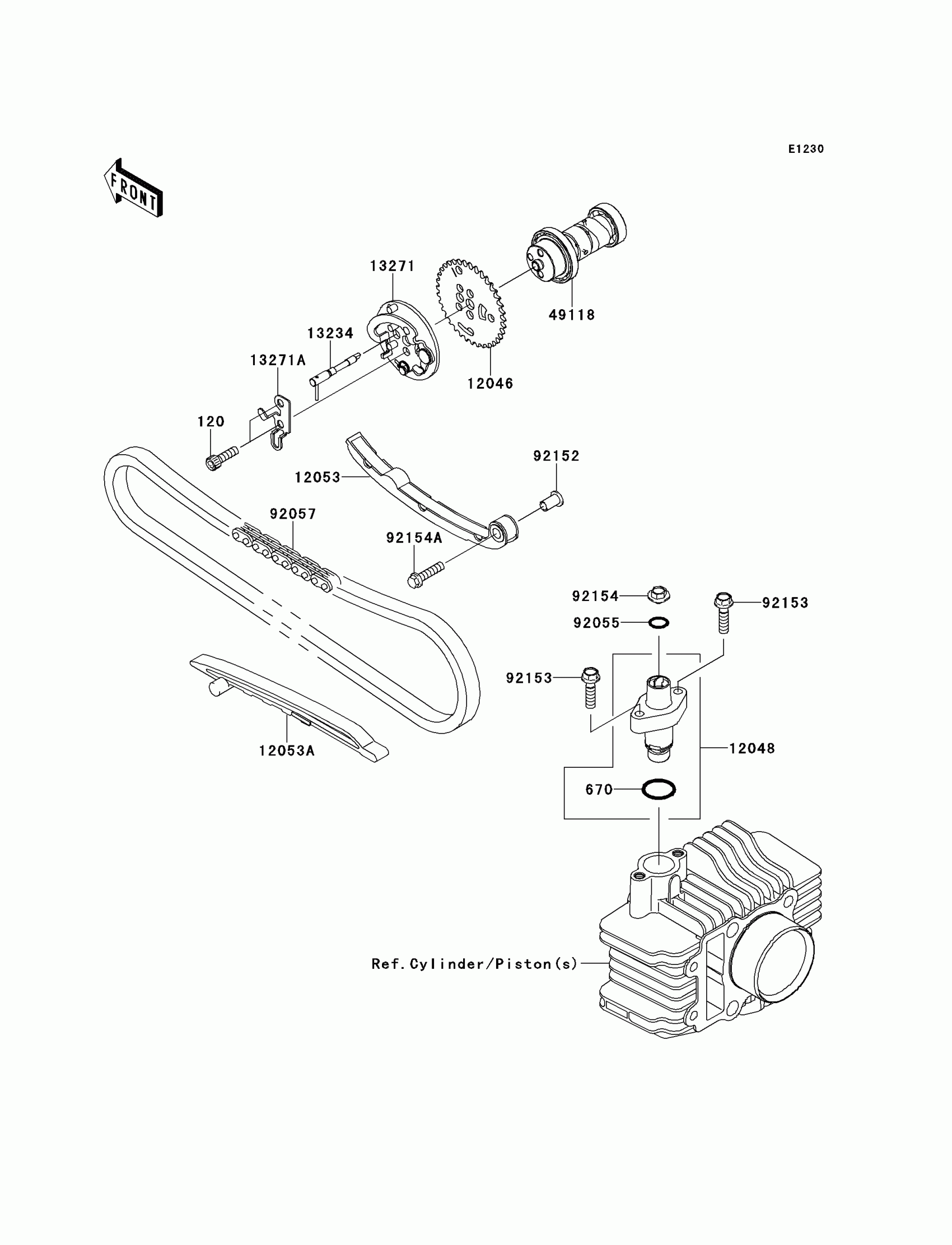

Kawasaki KLX®110L Camshaft(s)/Tensioner Diagram

Description

Price

120

BOLT-SOCKET,6X20

120CA0620

$1.28

670

O RING,21MM

670D2021

$5.13

12046

SPROCKET

12046-0059

$26.03

12048

TENSIONER-ASSY

12048-1164

$49.01

12053

GUIDE-CHAIN,LOOSE

12053-0006

Unavailable

12053A

GUIDE-CHAIN

12053-1461

$3.01

13234

SHAFT-COMP

13234-0033

$32.70

13271

PLATE

13271-0948

$33.18

13271A

PLATE

13271-0950

$4.81

49118

CAMSHAFT-COMP

49118-0131

$148.12

92055

RING-O,9.8X2.4

92055-0060

$2.15

92057

CHAIN,CAM,94L

92057-0127

Unavailable

92152

COLLAR,CHAIN GUIDE

92152-1369

$2.19

92153

BOLT,6X25

92153-1185

$4.09

92154

BOLT,FLANGED,6X6

92154-0536

$1.66

92154A

BOLT,FLANGED,6X25

92154-1156

$1.68
