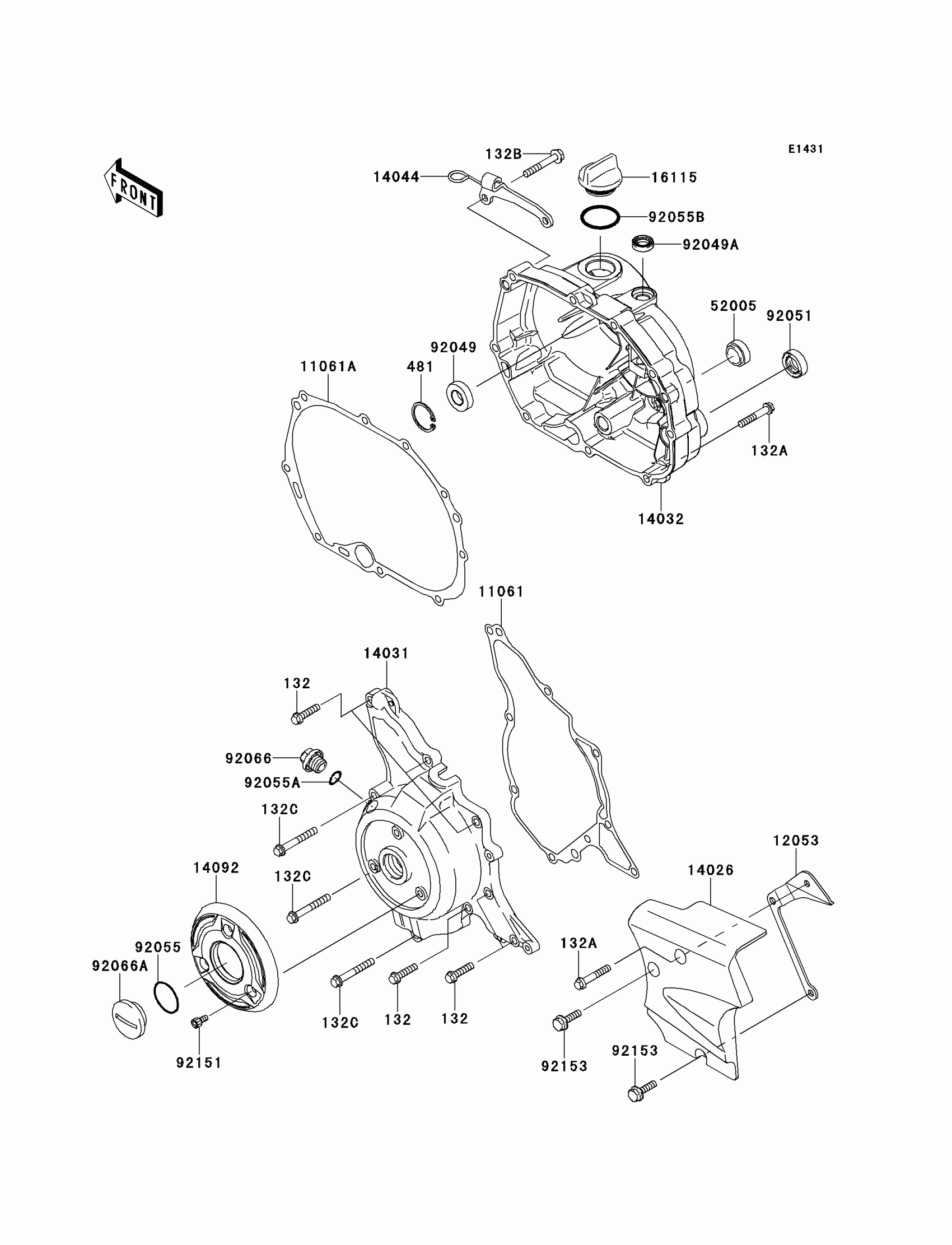

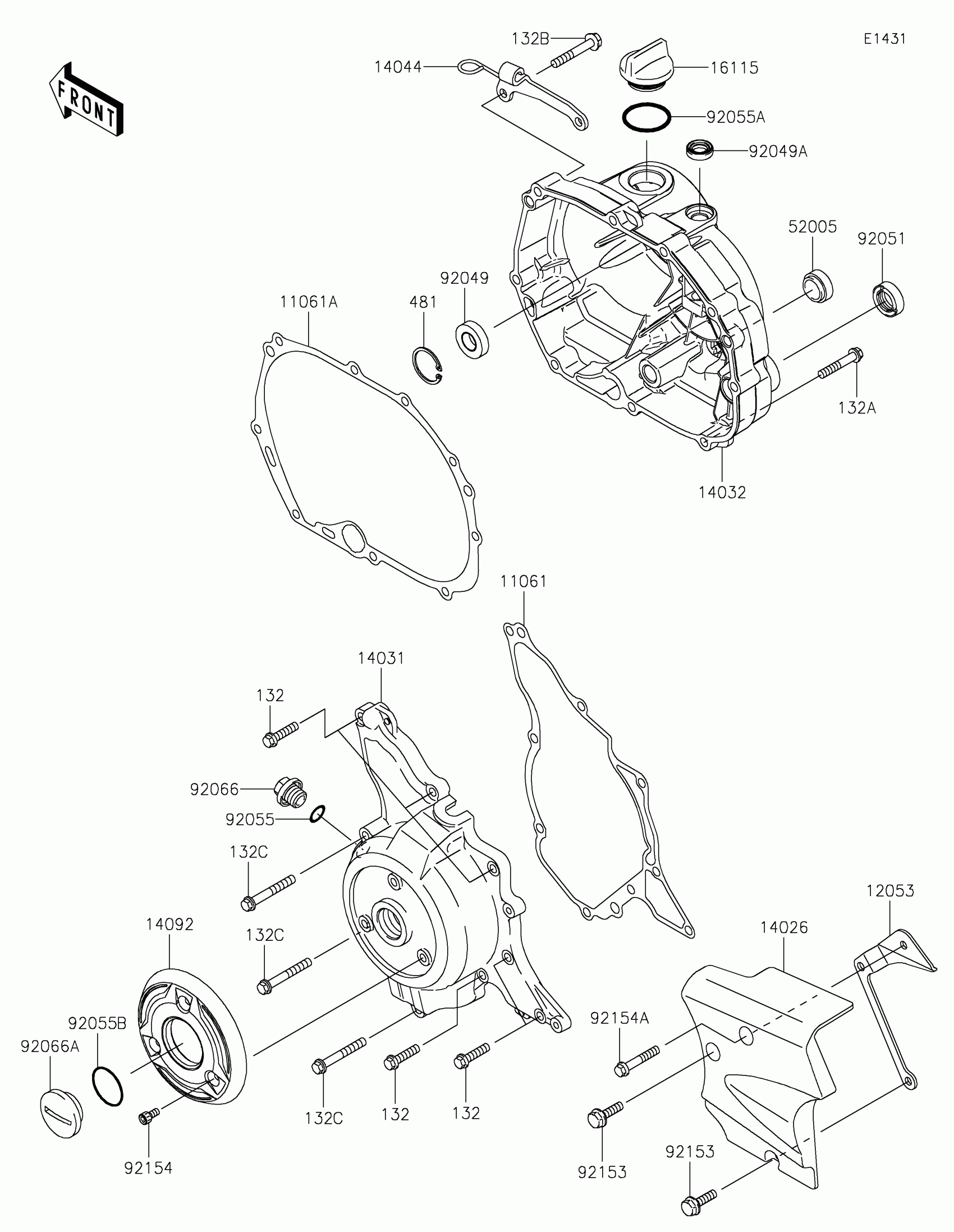

2014 Kawasaki KLX®110L Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2014 Kawasaki KLX®110L, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2014 Kawasaki KLX®110L Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

132

1

$4.28

In stock

132A

1

$3.28

In stock

132B

1

$4.16

In stock

132C

1

$4.17

In stock

481

1

$1.31

In stock

11061

1

$14.58

In stock

11061A

GASKET,CLUTCH COVER

11061-0426

1

$21.53

In stock

12053

GUIDE-CHAIN

12053-0164

1

$12.24

In stock

14026

COVER-CHAIN

14026-0070

1

$26.69

In stock

14031

COVER-GENERATOR,SILVER

14031-0119-GS

1

$84.65

In stock

14032

COVER-CLUTCH

14032-0138

1

$146.93

In stock

14044

HOLDER-CABLE

14044-0043

1

$30.64

In stock

14092

COVER

14092-0029

1

$17.36

In stock

16115

CAP-OIL FILLER

16115-1068

1

$4.54

In stock

52005

GAUGE,OIL LEVEL

52005-0019

1

$11.67

In stock

92049

SEAL-OIL,S 12 28 7 HS

92049-0051

1
Out of stock

92049A

SEAL-OIL,12X20X5.5

92049-0150

1
Out of stock

92051

SEAL-OIL,TB16267

92051-003

1
Out of stock

92055

RING-O,25.7X2.4

92055-0154

1

$4.47

In stock

92055A

RING-O,14.8X2.4

92055-0194

1

$4.66

In stock

92055B

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

92066

PLUG,14X10

92066-0724

1

$1.41

In stock

92066A

1

$5.78

In stock

92151

BOLT,SOCKET,5X10

92151-1212

1

$1.93

In stock

92153

BOLT,6X20

92153-1184

1
Out of stock
