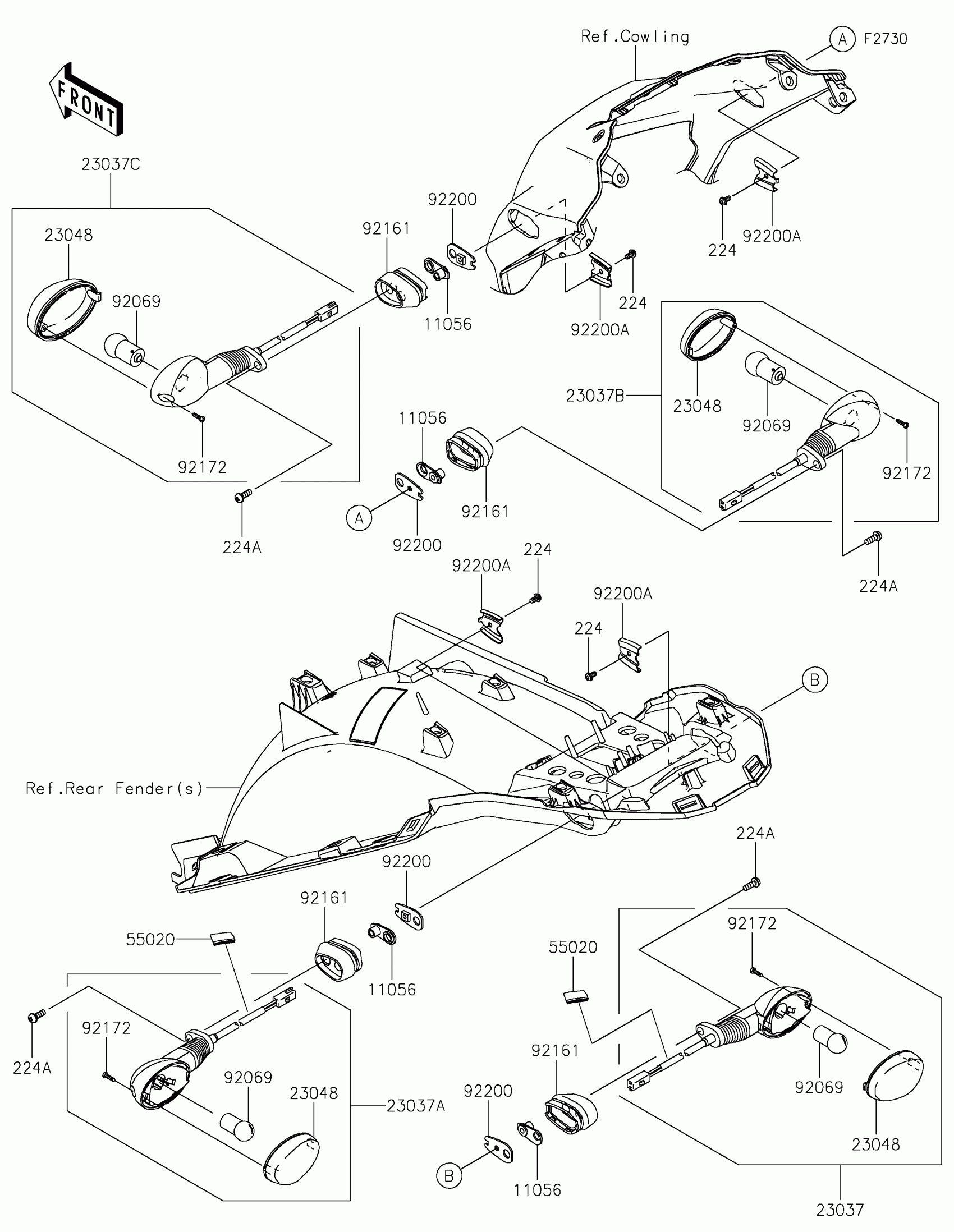

Kawasaki KLR®650 Adventure Turn Signals Diagram

Description

Price

11056

BRACKET,6MM

11056-4156

$3.78

23037

LAMP-ASSY-SIGNAL,RR,RH

23037-0416

$43.57

23037A

LAMP-ASSY-SIGNAL,RR,LH

23037-0417

$43.57

23037B

LAMP-ASSY-SIGNAL,RR,LH

23037-0418

$43.57

23037C

LAMP-ASSY-SIGNAL,RR,RH

23037-0419

$43.57

23048

LENS-SIGNAL LAMP

23048-0035

$8.27

55020

GUARD,50X30

55020-2334

$2.80

92069

BULB,12V 10W

92069-0106

$3.16

92161

DAMPER,SIGNAL LAMP

92161-1680

$4.52

92172

SCREW,TAPPING,2.9X13

92172-0343

$1.32

92200

WASHER,SIGNAL LAMP

92200-0164

$3.01

92200A

WASHER,SIGNAL LAMP

92200-0165

$3.01

224

SCREW-PAN-WP-CROS,4X8

224AB0408

$2.79

224A

SCREW-PAN-WP-CROS,6X14

224AB0614

$3.14
