2023 Kawasaki KLR®650 Adventure Ignition System Diagram

← All diagrams

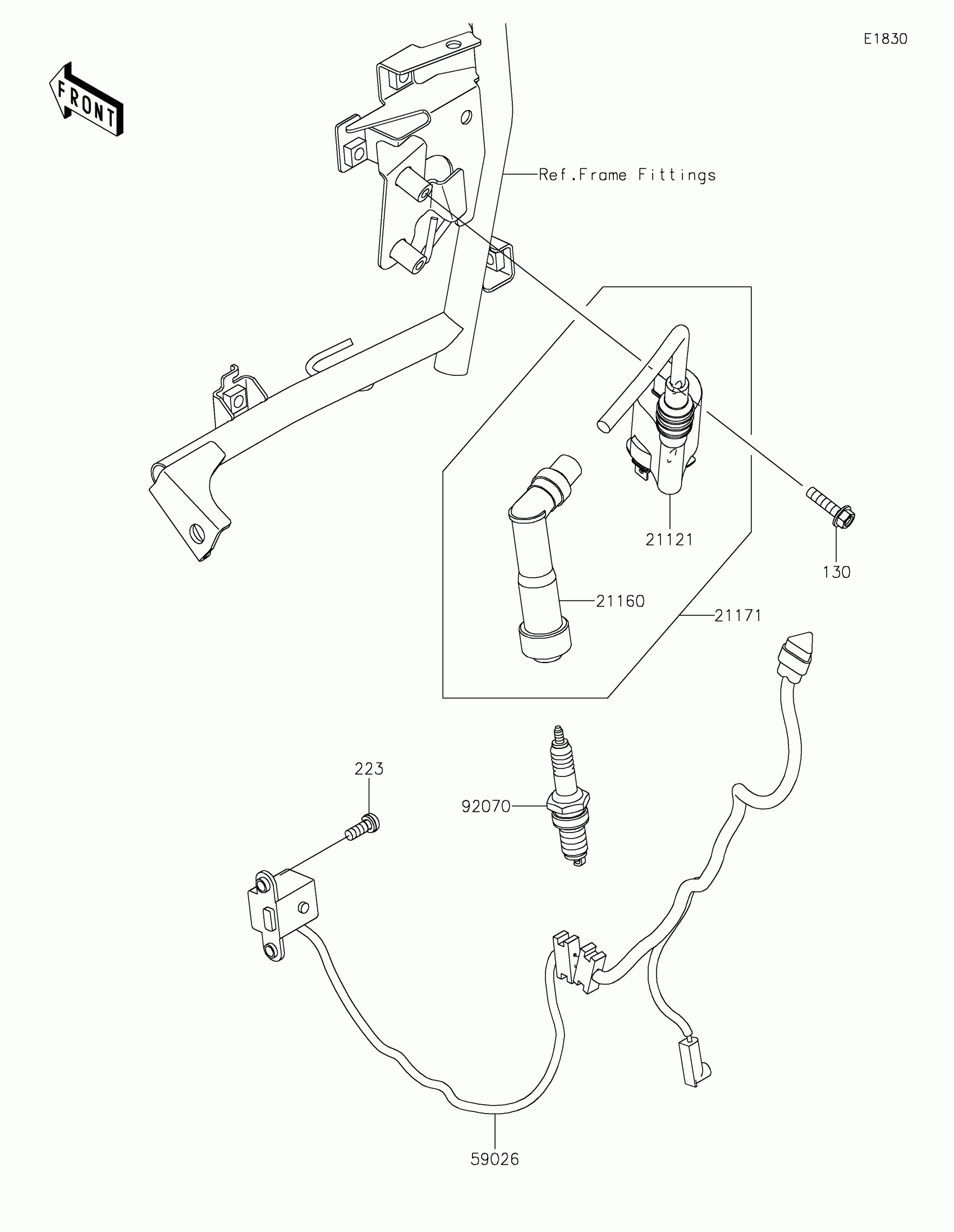

Find the part on the Ignition System diagram for your 2023 Kawasaki KLR®650 Adventure, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki KLR®650 Adventure Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21121

COIL-IGNITION

21121-0740

1
Out of stock

21160

CAP-ASSY-PLUG

21160-0019

1
Out of stock

21171

COIL-ASSY-IGNITION

21171-0789

1
Out of stock

59026

COIL-PULSING

59026-0563

1
Out of stock

92070

PLUG-SPARK,DPR8EA-9(NGK)

92070-1065

1
Out of stock

130

BOLT-FLANGED,5X20

130BA0520

1

$0.92

In stock

223

SCREW-PAN-WS-CROS,5X14

223AA0514

1
Out of stock
