2023 Kawasaki KLR®650 Adventure Generator Diagram

← All diagrams

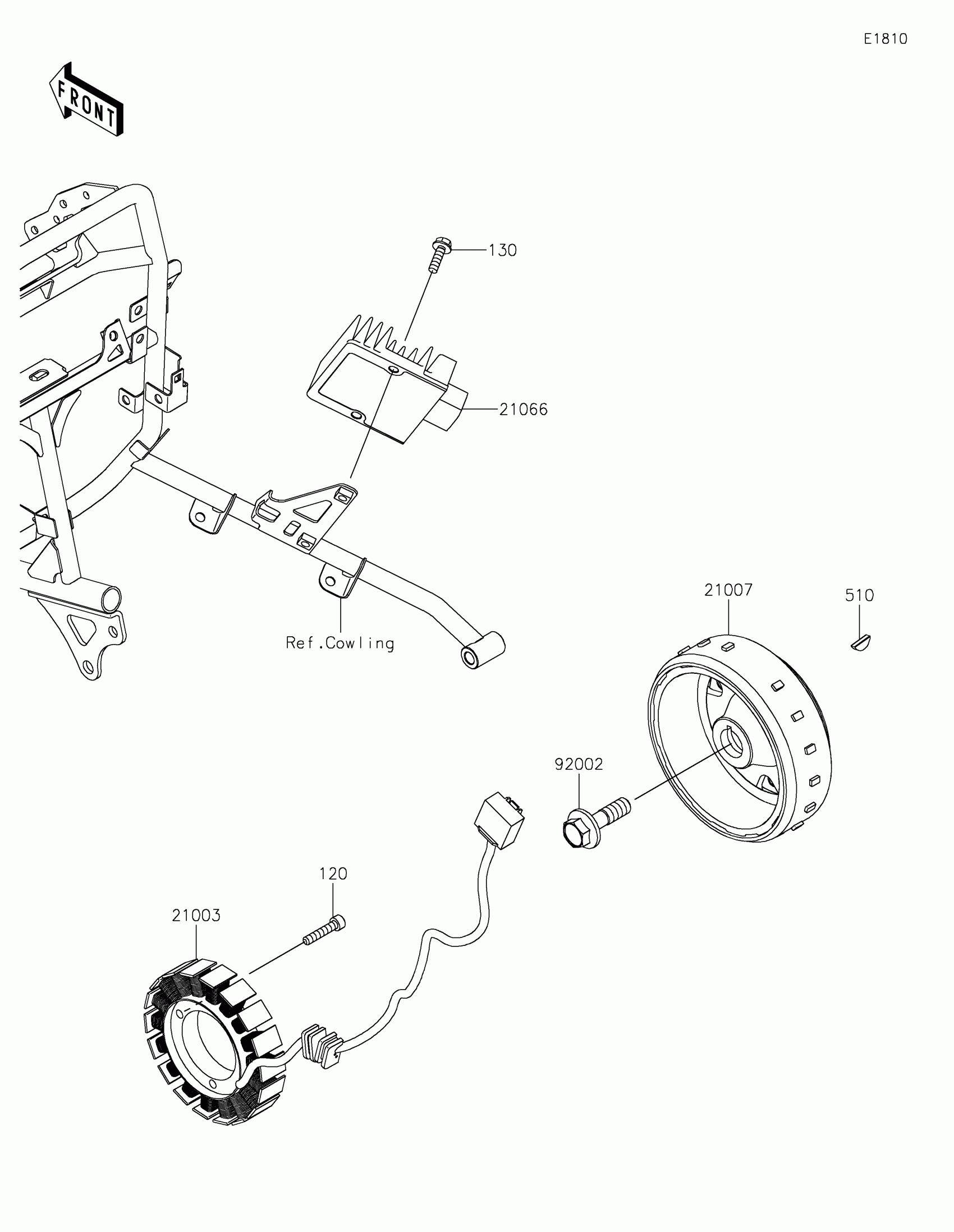

Find the part on the Generator diagram for your 2023 Kawasaki KLR®650 Adventure, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki KLR®650 Adventure Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21003

STATOR

21003-0208

1
Out of stock

21007

ROTOR

21007-0708

1
Out of stock

21066

REGULATOR-VOLTAGE

21066-0761

1
Out of stock

92002

BOLT,FLANGED,12X40

92002-1693

1
Out of stock

120

BOLT-SOCKET,6X30

120CA0630

1
Out of stock

130

BOLT-FLANGED,6X20

130BA0620

1

$1.49

In stock

510

KEY-WOODRUFF

510A4200

1
Out of stock
