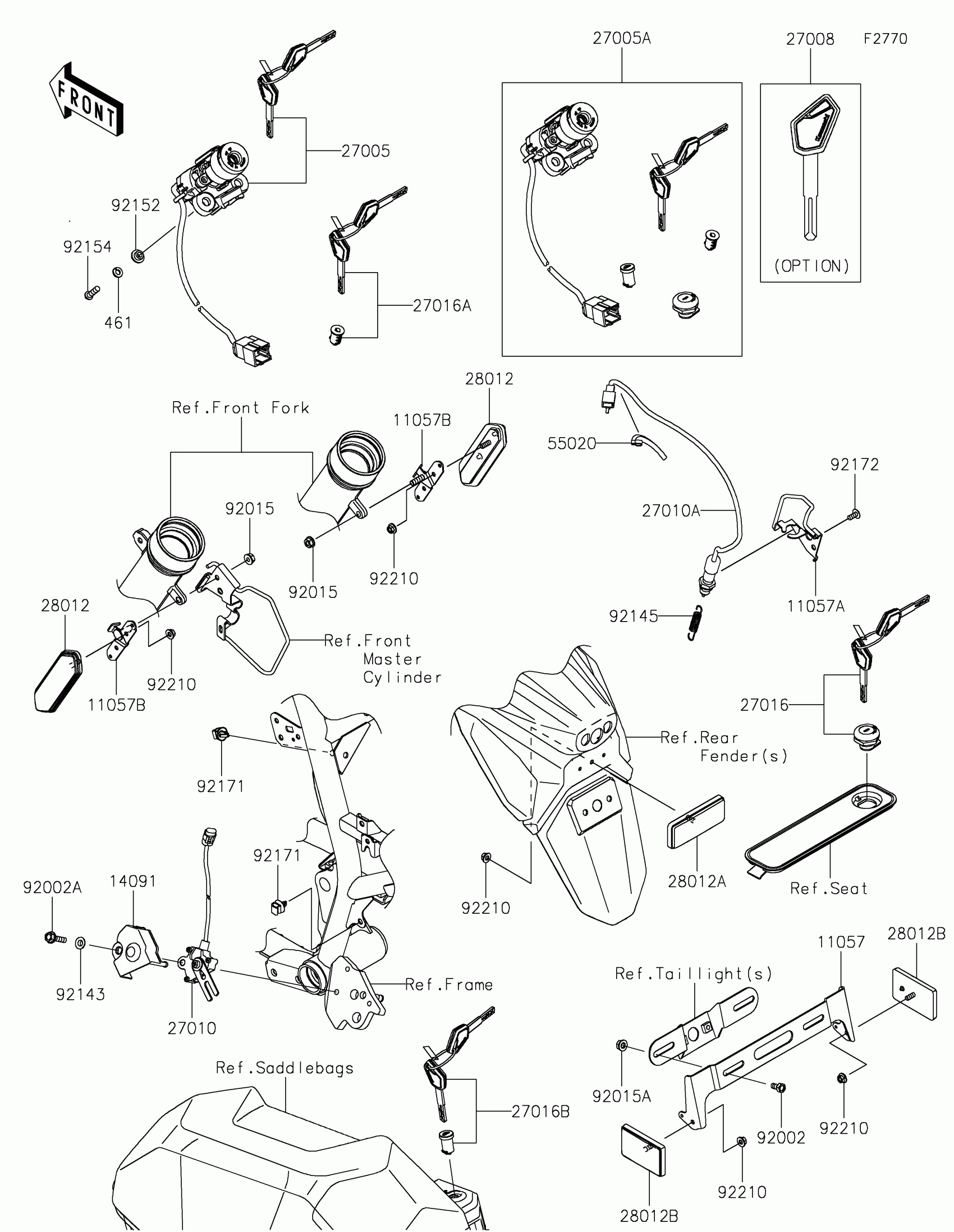

Find the part on the Ignition Switch diagram for your 2023 Kawasaki KLR®650 Adventure, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

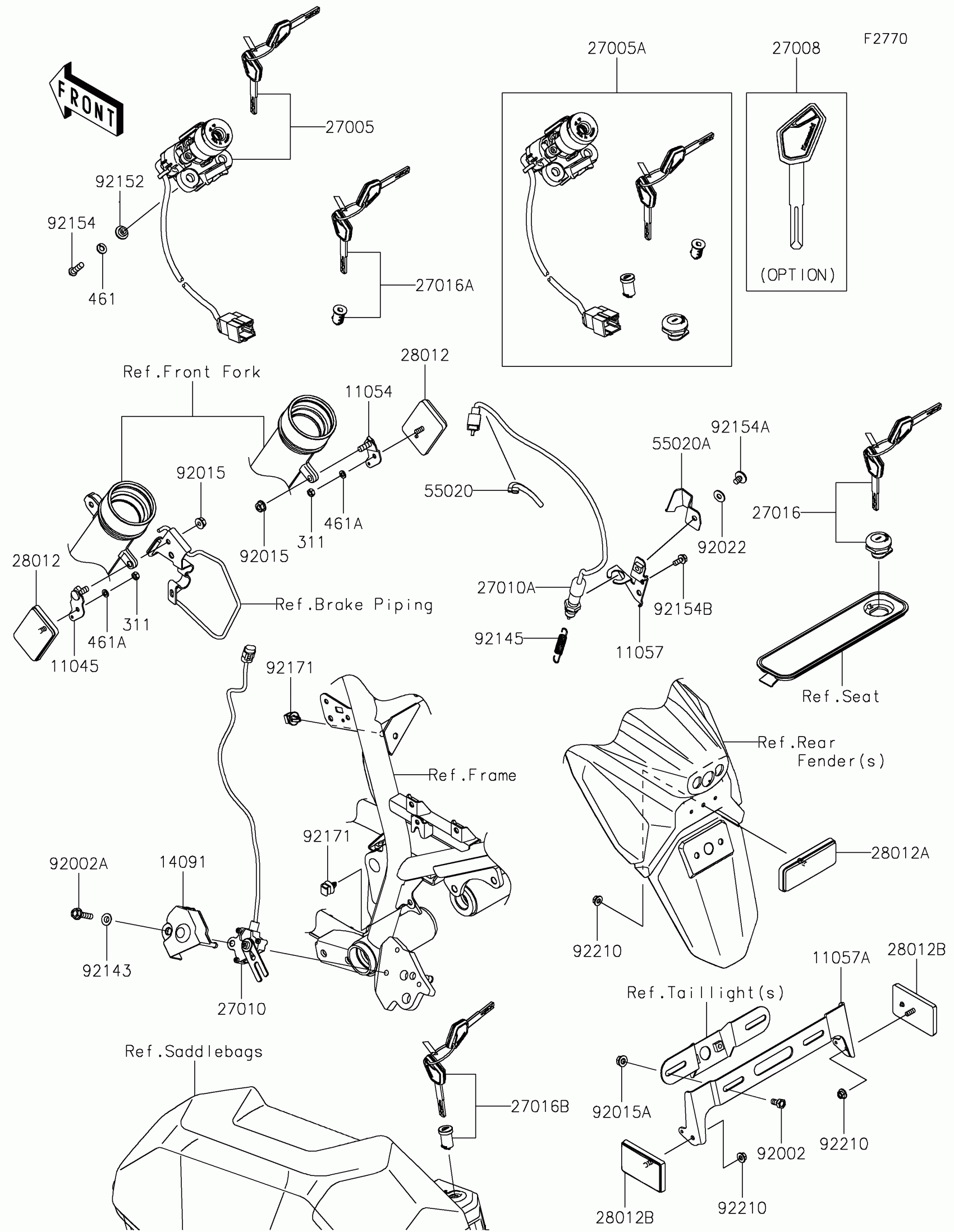

2023 Kawasaki KLR®650 Adventure Ignition Switch Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,REFLECTOR,RR

11057-4368

1
Out of stock

11057A

BRACKET,RR BRAKE SWITCH

11057-7880

1
Out of stock

11057B

BRACKET,REFLECTOR

11057-7911

1
Out of stock

14091

COVER,SIDE STAND SWITCH

14091-1553

1
Out of stock

27005

SWITCH-ASSY-IGNITION

27005-0702

1
Out of stock

27005A

SWITCH-ASSY-IGNITION

27005-5190

1
Out of stock

27008

KEY-LOCK,BLANK

27008-0688

1
Out of stock

27010

SWITCH,SIDE STAND

27010-0118

1
Out of stock

27010A

SWITCH,REAR BRAKE

27010-0969

1
Out of stock

27016

LOCK-ASSY,TOOL COVER

27016-5419

1
Out of stock

27016A

LOCK-ASSY,TANK CAP

27016-5421

1
Out of stock

27016B

LOCK-ASSY,PANNIER

27016-5422

1
Out of stock

28012

REFLECTOR-REFLEX,CCC

28012-0045

1
Out of stock

28012A

REFLECTOR-REFLEX

28012-1077

1
Out of stock

28012B

REFLECTOR-REFLEX

28012-1088

1
Out of stock

55020

GUARD,50X30

55020-2334

1
Out of stock

92002

BOLT,6X12

92002-1132

1
Out of stock

92002A

BOLT,FLANGED,6X25

92002-1582

1
Out of stock

92015

NUT,FLANGED,6MM,BLACK

92015-1233

1
Out of stock

92015A

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92143

COLLAR

92143-1331

1
Out of stock

92145

SPRING,REAR BRAKE

92145-1896

1
Out of stock

92152

COLLAR,6.15X10.15X6

92152-1535

1
Out of stock

92154

BOLT,TORX,6X22

92154-1858

1
Out of stock

92171

CLAMP

92171-0640

1
Out of stock

92172

SCREW,5X12

92172-1459

1
Out of stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock

461

WASHER-SPRING,6MM

461DA0600

1
Out of stock
