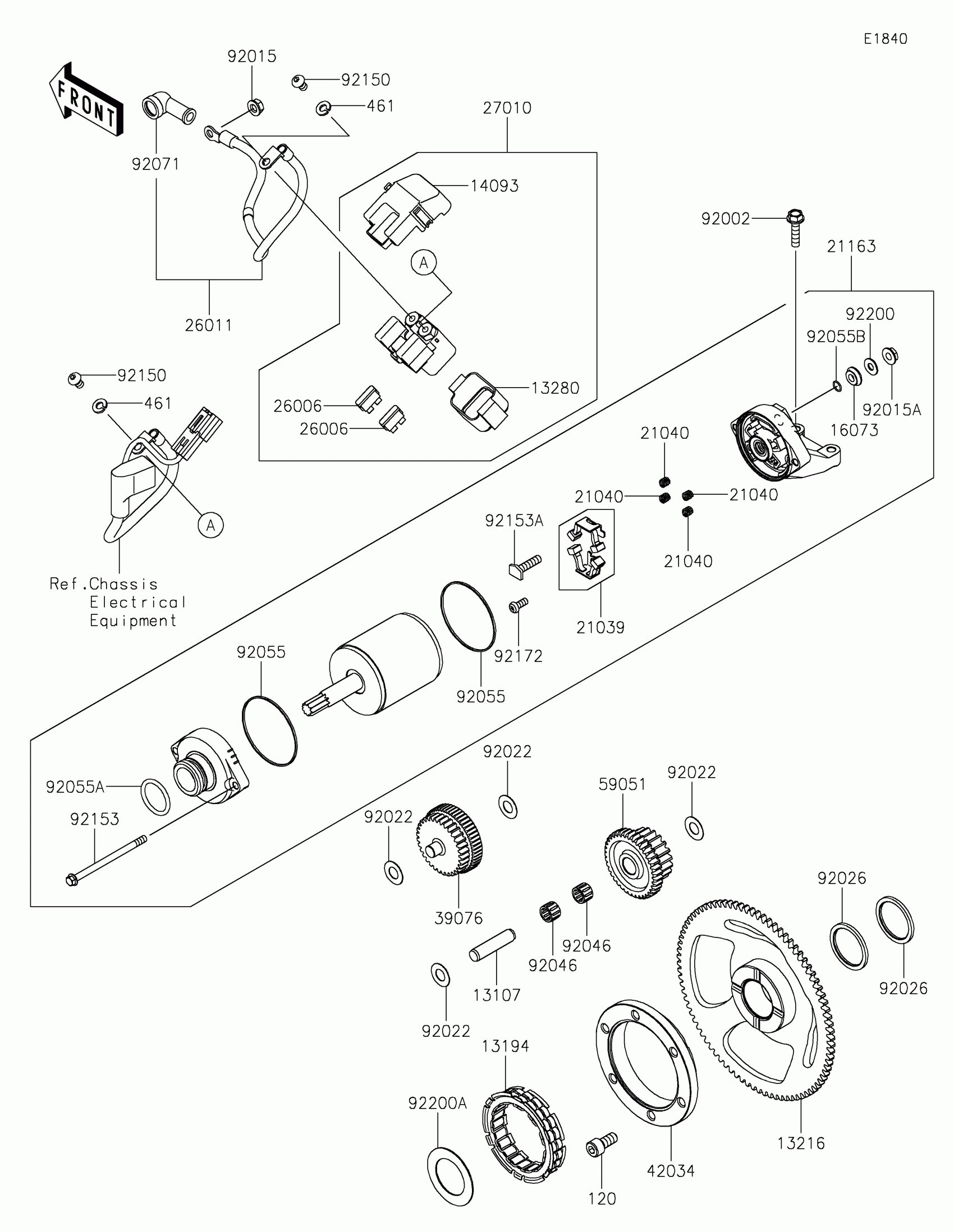

2022 Kawasaki KLR®650 Adventure Starter Motor Diagram

← All diagrams

Find the part on the Starter Motor diagram for your 2022 Kawasaki KLR®650 Adventure, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

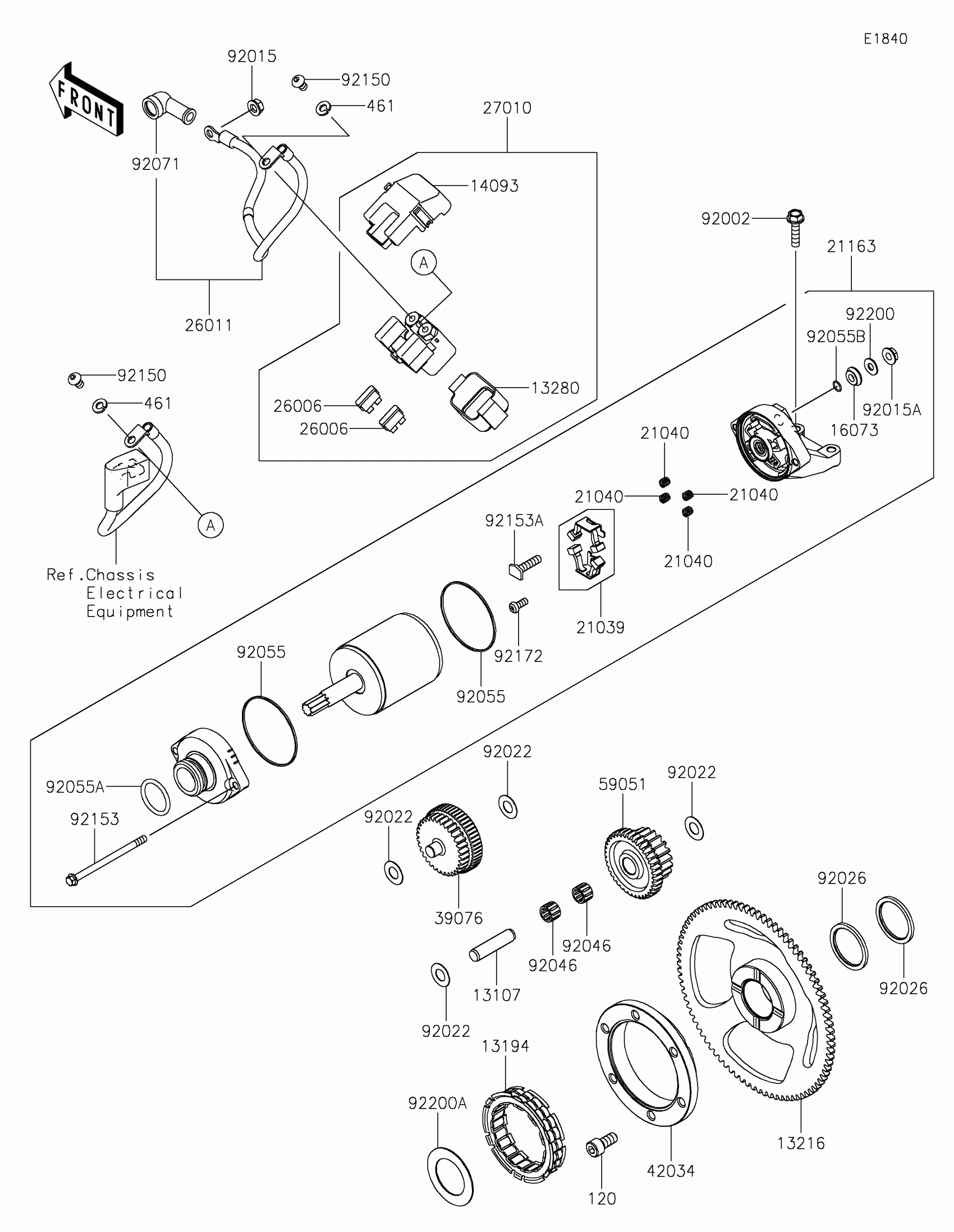

2022 Kawasaki KLR®650 Adventure Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13107

SHAFT,IDLER

13107-1135

1
Out of stock

13194

CLUTCH-ONEWAY

13194-1089

1
Out of stock

13216

GEAR-COMP,ONEWAY CLUTCH

13216-0044

1
Out of stock

13280

HOLDER

13280-0710

1

$13.75

In stock

14093

COVER

14093-0199

1
Out of stock

16073

INSULATOR

16073-0053

1
Out of stock

21039

BRUSH,CARBON

21039-0004

1
Out of stock

21040

SPRING-BRUSH

21040-0003

1
Out of stock

21163

STARTER-ELECTRIC

21163-0790

1
Out of stock

26006

FUSE,BLADE,30A,GREEN

26006-1006

1
Out of stock

26011

WIRE-LEAD,STARTER

26011-1938

1
Out of stock

27010

SWITCH,MAGNETIC

27010-0948

1
Out of stock

39076

1

$219.02

In stock

42034

COUPLING

42034-1094

1
Out of stock

59051

GEAR-SPUR,20T & 37T

59051-1133

1
Out of stock

92002

BOLT,FLANGED,6X25

92002-1086

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1
Out of stock

92015A

NUT,STARTER MOTOR

92015-1476

1
Out of stock

92022

WASHER,10.2X20X0.5

92022-1649

1
Out of stock

92026

SPACER

92026-1474

1
Out of stock

92046

BEARING-NEEDLE,K10X14X10

92046-1134

1
Out of stock

92055

RING-O

92055-0136

1
Out of stock

92055A

RING-O

92055-1276

1
Out of stock

92055B

RING-O,4.5X2.0

92055-1370

1
Out of stock

92071

GROMMET

92071-0705

1
Out of stock

92150

BOLT,6X10

92150-1577

1
Out of stock

92153

BOLT

92153-1850

1
Out of stock

92153A

BOLT

92153-1866

1
Out of stock

92172

SCREW

92172-0334

1
Out of stock

92200

WASHER

92200-0386

1
Out of stock

92200A

WASHER,32.2X50

92200-0555

1
Out of stock

120

BOLT-SOCKET,8X18

120CA0818

1
Out of stock

461

WASHER-SPRING,6MM

461DB0600

1
Out of stock
