2023 Kawasaki KLR®650 Adventure Cowling Diagram

← All diagrams

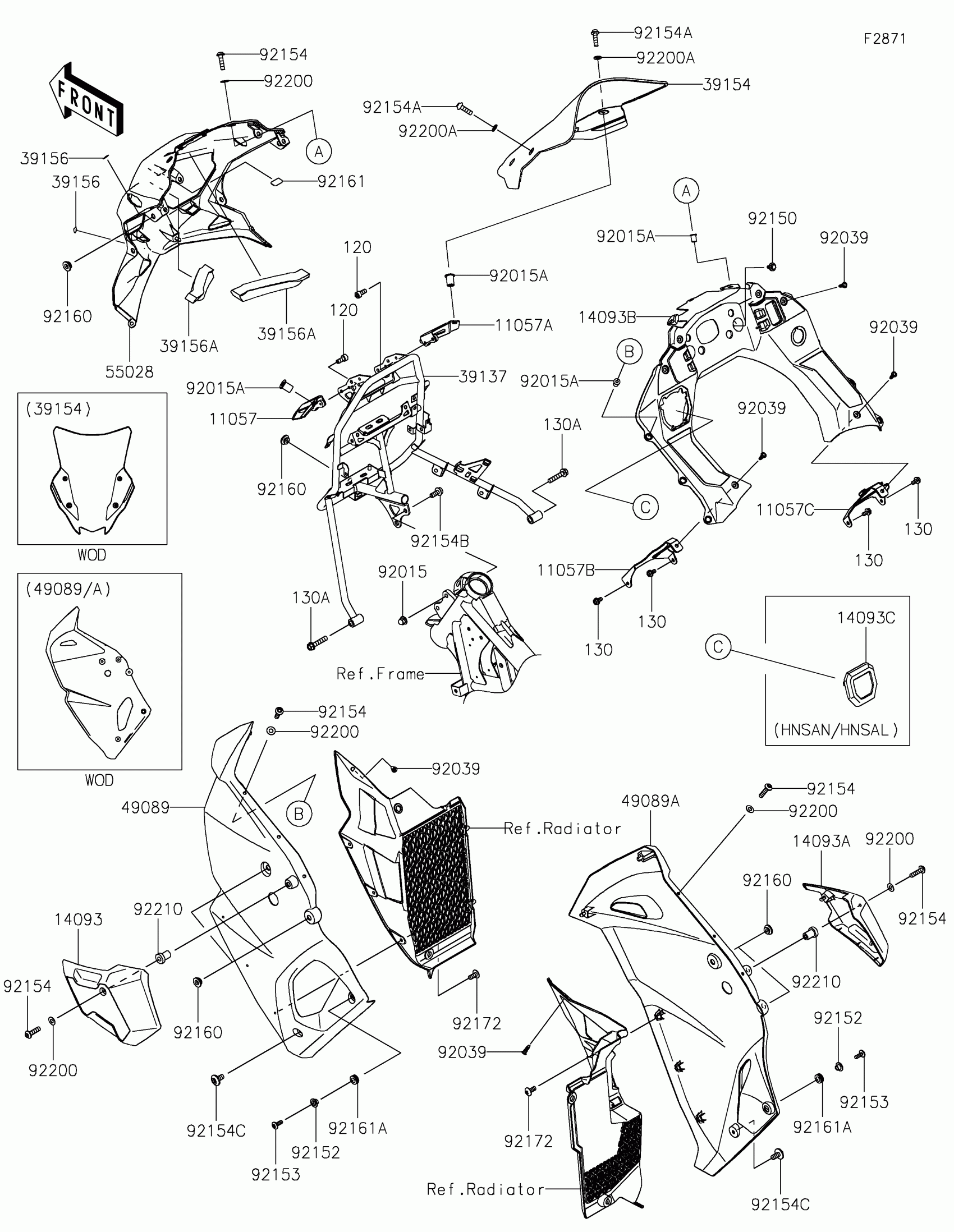

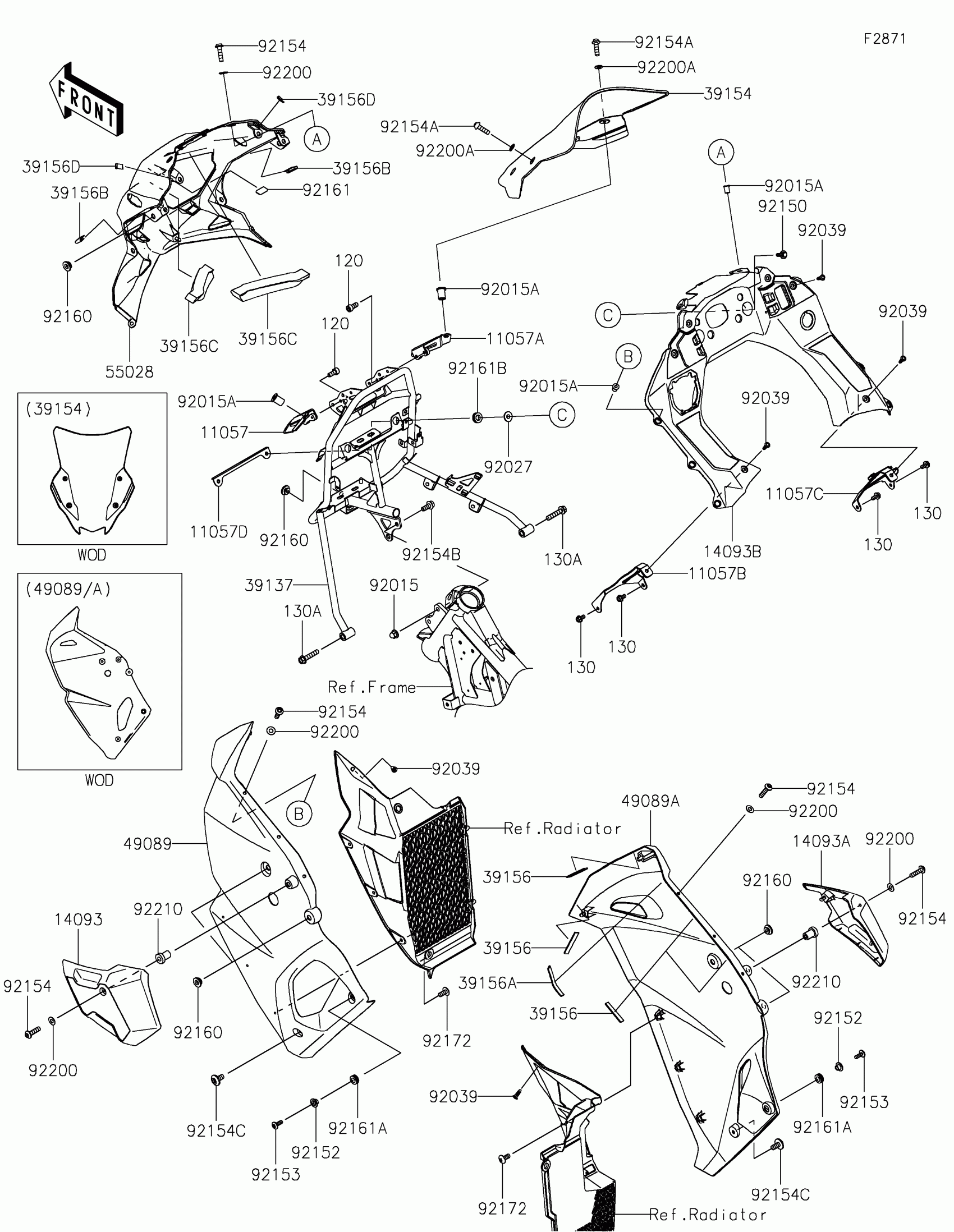

Find the part on the Cowling diagram for your 2023 Kawasaki KLR®650 Adventure, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki KLR®650 Adventure Cowling Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11057

BRACKET,WINDSHIELD,LH

11057-4397

1
Out of stock

11057A

BRACKET,WINDSHIELD,RH

11057-4398

1
Out of stock

11057B

BRACKET,DASHBOARD,LH

11057-7243

1
Out of stock

11057C

BRACKET,DASHBOARD,RH

11057-7245

1
Out of stock

11057D

BRACKET,METER

11057-7893

1
Out of stock

14093

COVER,SHROUD,LH

14093-1074

1
Out of stock

14093A

COVER,SHROUD,RH

14093-1075

1
Out of stock

14093B

COVER,DASHBOARD

14093-1076

1
Out of stock

39137

STAY-COMP,COWLING

39137-0731

1
Out of stock

39154

WINDSHIELD

39154-0391

1
Out of stock

39156

PAD,10X50X2

39156-1924

1

$2.02

In stock

39156A

PAD,10X80X2

39156-2238

1
Out of stock

39156B

PAD,25X25X2

39156-2573

1
Out of stock

39156C

PAD,20X15X150

39156-2762

1
Out of stock

39156D

PAD,20X10X2

39156-2849

1
Out of stock

49089

SHROUD-ENGINE,LH,C.C.GRAY

49089-0995-63G

1
Out of stock

49089A

SHROUD-ENGINE,RH,C.C.GRAY

49089-0996-63G

1
Out of stock

55028

COWLING,UPP

55028-0800

1
Out of stock

92015

NUT,CAP,8MM

92015-1151

1
Out of stock

92015A

NUT,WELL,5MM

92015-1757

1
Out of stock

92027

COLLAR,L=7.4

92027-1848

1
Out of stock

92039

RIVET

92039-0709

1
Out of stock

92150

BOLT,6X20

92150-1339

1
Out of stock

92152

COLLAR

92152-2770

1
Out of stock

92153

BOLT,6X18

92153-0816

1
Out of stock

92154

BOLT,SOCKET,5X20

92154-0216

1
Out of stock

92154A

BOLT,SOCKET,5X18

92154-1945

1
Out of stock

92154B

BOLT,SOCKET,8X20

92154-2314

1
Out of stock

92154C

BOLT,SOCKET,6X12

92154-2355

1
Out of stock

92160

DAMPER

92160-1613

1
Out of stock

92161

DAMPER,12X23

92161-1367

1
Out of stock

92161A

DAMPER,10X18X6.5

92161-2091

1
Out of stock

92161B

DAMPER,10X20X6

92161-2168

1
Out of stock

92172

SCREW,5X12

92172-0821

1
Out of stock

92200

WASHER,NYLONE,5.3X11.5X0.5

92200-0006

1
Out of stock

92200A

WASHER,5.2X10X1

92200-2286

1
Out of stock

92210

NUT,5MM

92210-0001

1
Out of stock

120

BOLT-SOCKET,5X12

120CB0512

1
Out of stock

130

BOLT-FLANGED,6X12

130BA0612

1

$1.46

In stock

130A

BOLT-FLANGED,8X40

130BA0840

1

$1.68

In stock
