2023 Kawasaki KLR®650 Adventure Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2023 Kawasaki KLR®650 Adventure, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

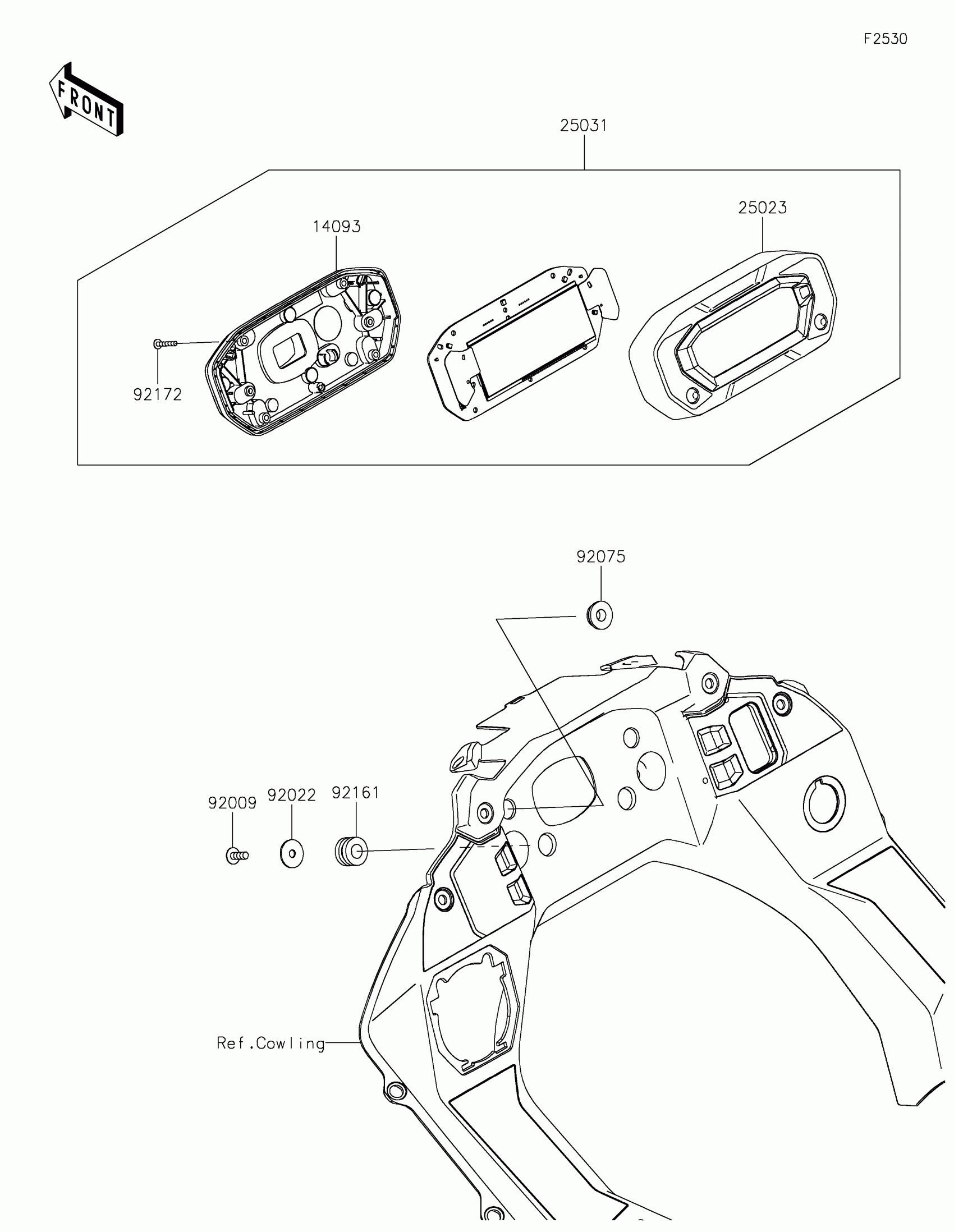

2023 Kawasaki KLR®650 Adventure Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,METER

14093-0941

1
Out of stock

25023

COVER-METER CASE

25023-0139

1
Out of stock

25031

METER-ASSY,LCD

25031-0966

1
Out of stock

92009

SCREW,TAPPING,5X14

92009-1197

1
Out of stock

92022

WASHER,5.5X20X1.2

92022-1405

1
Out of stock

92075

DAMPER,RADIATOR GUARD

92075-1469

1
Out of stock

92161

DAMPER,10X20X12

92161-2102

1
Out of stock

92172

SCREW,TAPPING,3X20

92172-1224

1
Out of stock
