1972 Yamaha GP292 Shroud GP-292B Diagram

← All diagrams

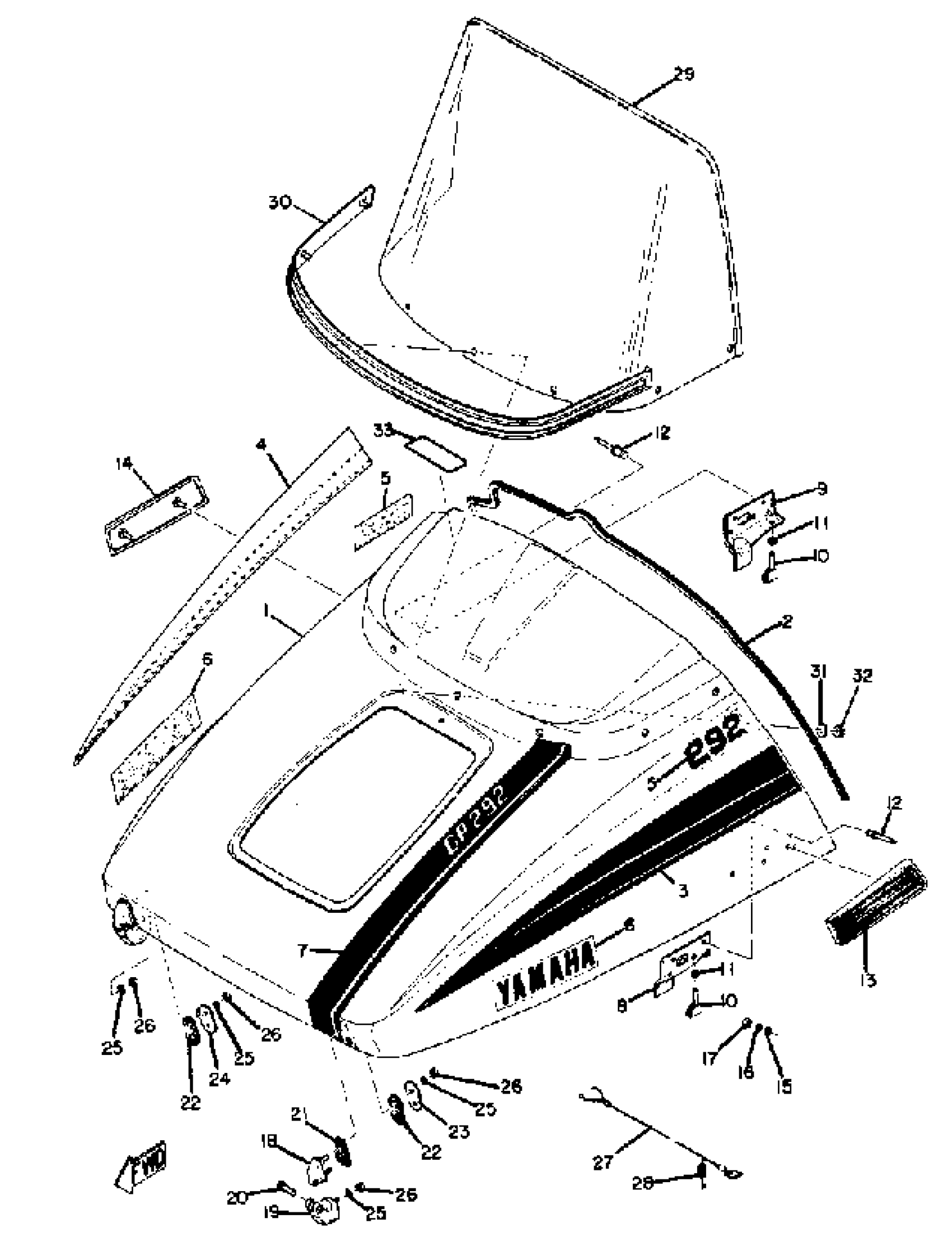

Find the part on the Shroud GP-292B diagram for your 1972 Yamaha GP292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha GP292 Shroud GP-292B Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD

841-77111-00-00

1
Out of stock

2

TRIM 2

(841-77166-00-00)

1
Out of stock

3

ORNAMENT 1

841-77163-00-00

1
Out of stock

4

ORNAMENT 2

(841-77164-00-00)

1
Out of stock

5

EMBLEM 6

(839-77356-00-00)

1
Out of stock

6

EMBLEM 7

(838-77357-00-00)

1
Out of stock

7

ORNAMENT 3

845-77169-00-00

1
Out of stock

8

CLAMP 2

(841-77136-00-00)

1
Out of stock

9

CLAMP 4

(841-77138-00-00)

1
Out of stock

10

BODY, LATCH 1

(841-77171-01-00)

1
Out of stock

11

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

12

RIVET, BLIND

90267-40936-00

1

$1.38

In stock

13

LOUVER 1

(838-77131-00-00)

1
Out of stock

14

LOUVER 2

838-77132-00-00

1
Out of stock

15

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

16

YBS67-5 WASHER, SPRING

92990-05100-00

—
Out of stock

17

NUT, HEXAGON (663)

95380-05600-00

—

$6.17

In stock

18

HINGEASSEMBLY

(841-77140-00-00)

1
Out of stock

19

HINGE 3

(841-77147-00-00)

1
Out of stock

20

PIN

90243-05003-00

1
Out of stock

21

DAMPER 2

841-77199-00-00

1
Out of stock

22

DAMPER 1

(841-77198-00-00)

1
Out of stock

23

PLATE, BACK UP 1

(841-77153-00-00)

1
Out of stock

24

PLATE, BACK UP 2

(841-77154-00-00)

1
Out of stock

25

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

26

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

27

STOPPER, SHROUD

841-77118-00-00

1
Out of stock

28

CLAMP,ROD

838-77159-00-00

—

$3.49

In stock

29

WINDSHIELD

(844-77210-01-00)

1
Out of stock

30

TRIM LOWER ASSEMBLY

841-77220-00-00

1
Out of stock

31

WASHER, PLATE (4H7)

90201-061A5-00

—

$5.86

In stock

32

NUT, NYLON

95707-05300-00

—

$2.74

In stock

33

LABEL, SAFETY

288-21659-00-00

1
Out of stock
