1972 Yamaha GP292 Crank - Piston Diagram

← All diagrams

Find the part on the Crank - Piston diagram for your 1972 Yamaha GP292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

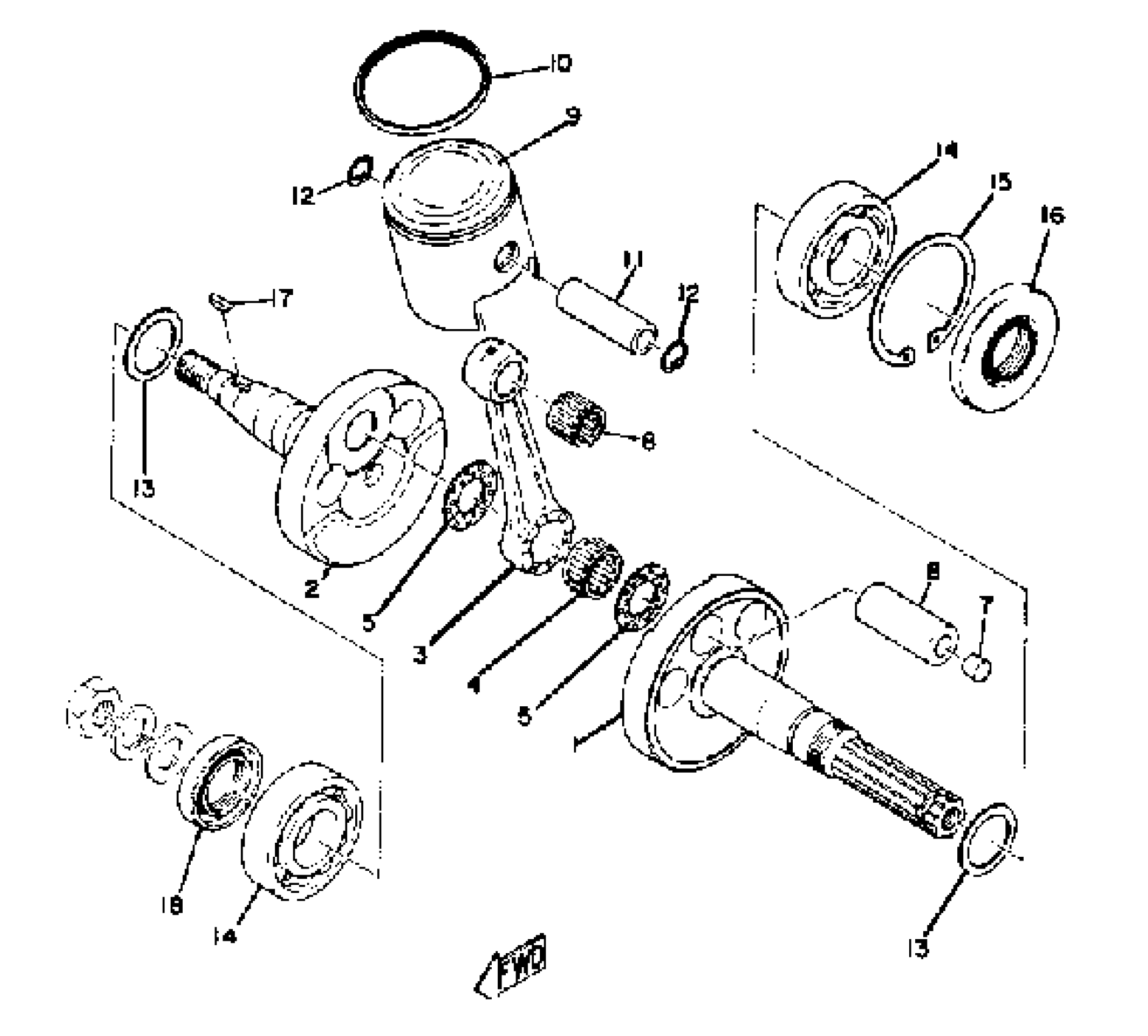

1972 Yamaha GP292 Crank - Piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANK 1

(812-11412-00-00)

1
Out of stock

1

CRANKSHAFT ASSEMBLY

(822-11400-00-00)

1
Out of stock

1

CRANKSHAFT ASSEMBLY

(839-11400-00-00)

1
Out of stock

1

CRANK 1

(839-11412-00-00)

1
Out of stock

2

CRANK 2

(812-11422-00-00)

1
Out of stock

3

ROD, CONNECTING

(812-11651-00-00)

1
Out of stock

3

. ROD, CONNECTING

839-11651-00-00

1
Out of stock

4

BEARING

93310-424E8-00

1

$19.49

In stock

5

WASHER (152-11685-00)

90209-24073-00

1

$10.08

In stock

6

PIN, CRANK 1

(822-11681-00-00)

1
Out of stock

7

BUSH, CRANK PIN

(822-11682-00-00)

1
Out of stock

8

1

$32.87

In stock

9

PISTON STD

823-11631-01-96

1
Out of stock

9

PISTON 1 O/S 0.25

823-11635-01-00

1
Out of stock

9

PISTON 2 O/S 0.50

823-11636-01-00

1
Out of stock

10

RING, PISTON STD

823-11611-00-00

1
Out of stock

10

RING, PISTON 1ST

823-11611-10-00

1
Out of stock

10

RING, PISTON 2ND

823-11611-20-00

1
Out of stock

11

PIN, PISTON

214-11633-00-00

—

$27.84

In stock

12

CLIP 6041163400

93450-20026-00

—

$5.10

In stock

13

SHIM, CRANK 1

(812-11561-00-02)

1
Out of stock

13

SHIM, CRANK 1

(812-11561-00-03)

1
Out of stock

14

BEARING(4GB)

93306-30629-00

—

$66.12

In stock

15

CIRCLIP, R-TYPE

(93420-72023-00)

1
Out of stock

16

OIL SEAL, SW-TYPE

93103-32060-00

1
Out of stock

17

KEY, WOODRUFF

90280-05001-00

—

$10.68

In stock

18

OIL SEAL, SW-TYPE

93103-32061-00

1
Out of stock
