1972 Yamaha GP292 Engine Cowl GP-292B Diagram

← All diagrams

Find the part on the Engine Cowl GP-292B diagram for your 1972 Yamaha GP292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

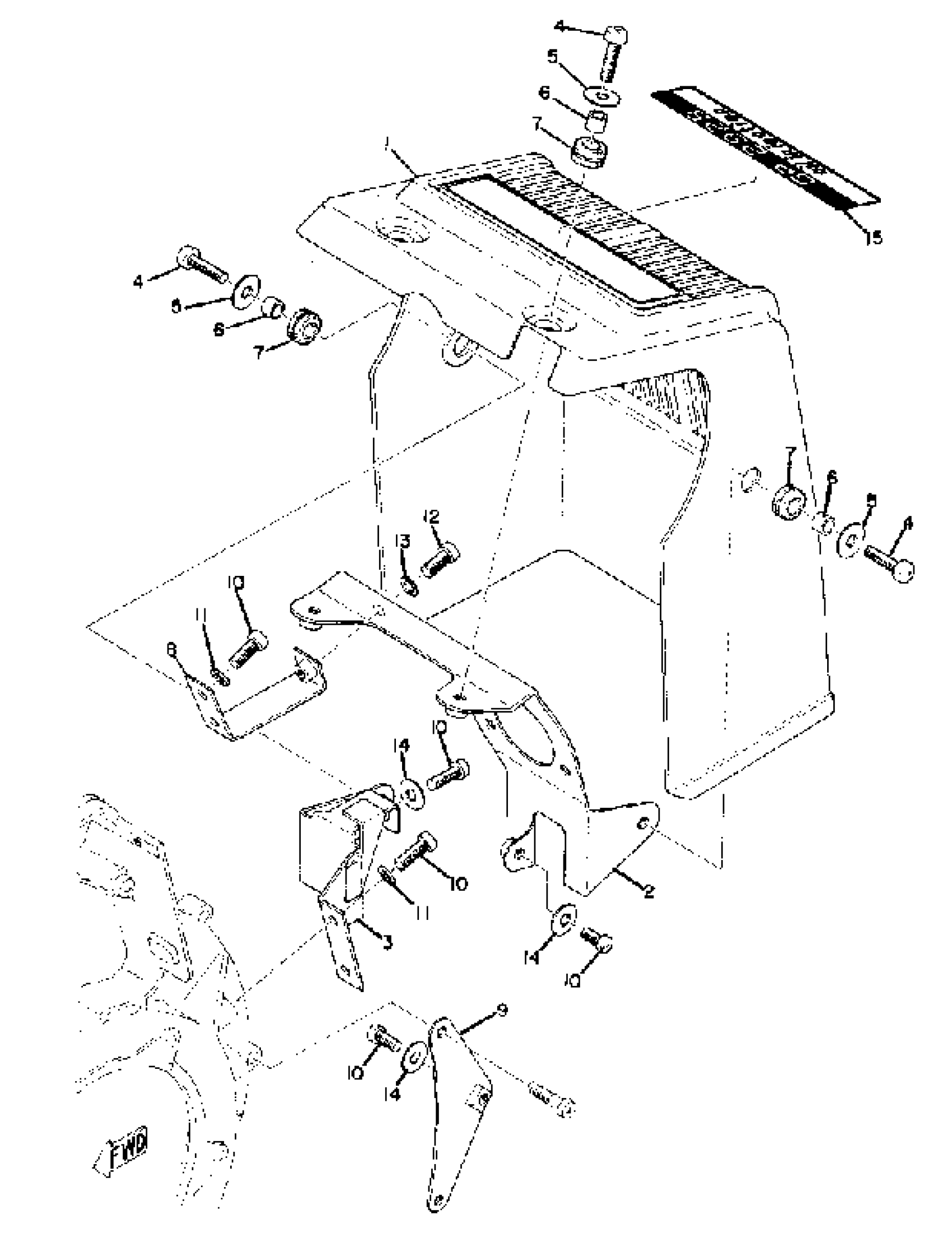

1972 Yamaha GP292 Engine Cowl GP-292B Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COWL, ENGINE

(839-77411-02-00)

1
Out of stock

2

BRACKET 1

(845-77421-00-00)

1
Out of stock

3

BRACKET 3

(839-77423-03-00)

1
Out of stock

4

SCREW, PAN

98517-06020-00

1
Out of stock

5

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

6

COLLAR (J10)

90387-06026-00

1

$6.91

In stock

7

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

8

BRACKET 2

839-77422-01-00

1
Out of stock

9

BRACKET 4

(839-77424-00-00)

1
Out of stock

10

SCREW, PAN

98507-06014-00

1

$6.18

In stock

11

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

12

SCREW, PAN

98517-06020-00

1
Out of stock

13

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

14

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

15

EMBLEM 1

(845-77451-00-00)

1
Out of stock
