1972 Yamaha GP292 Crankcase - Cylinder Diagram

← All diagrams

Find the part on the Crankcase - Cylinder diagram for your 1972 Yamaha GP292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

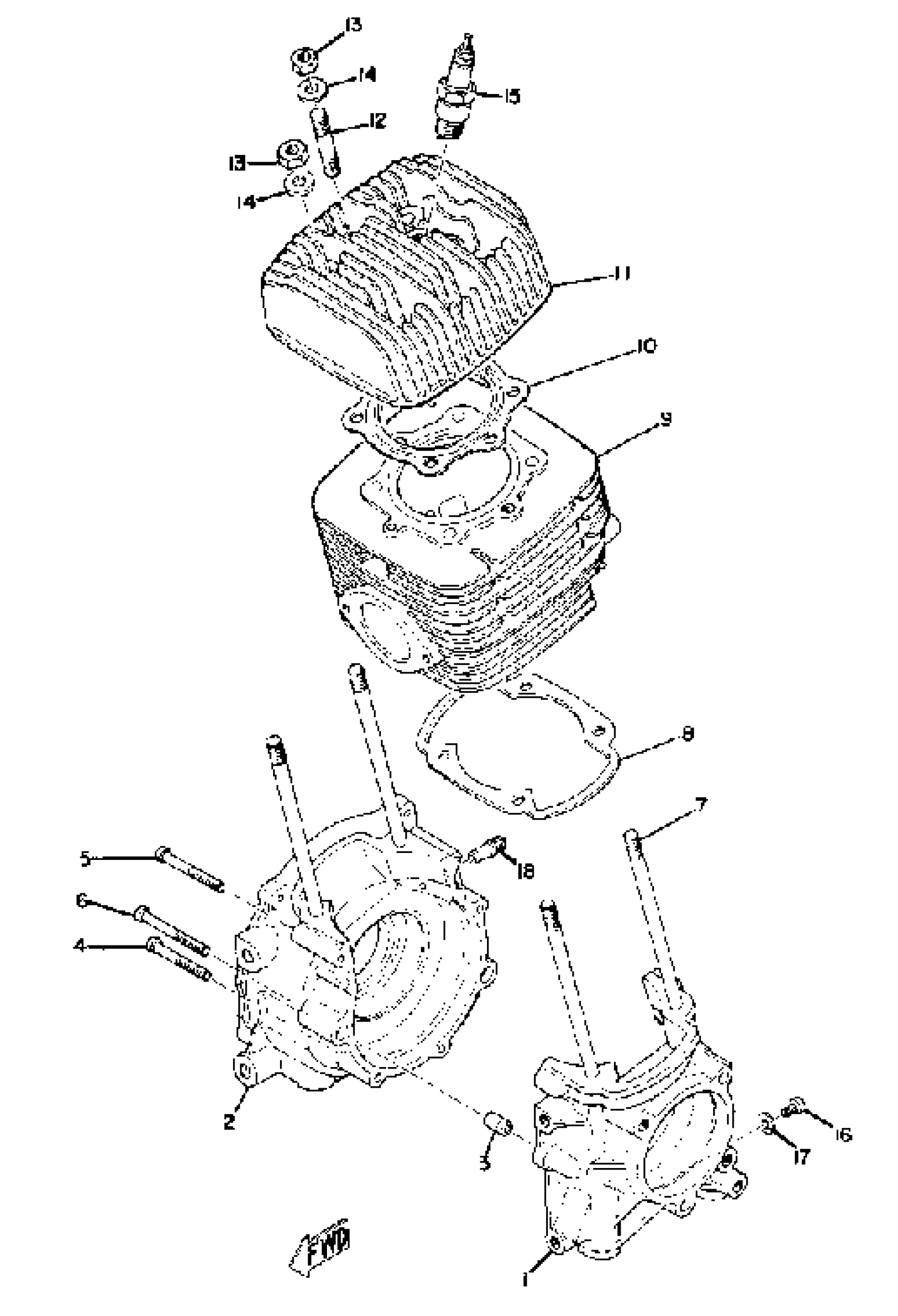

1972 Yamaha GP292 Crankcase - Cylinder Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CRANKCASE ASSEMBLY

839-15100-00-00

1
Out of stock

2

CRANKCASE ASSEMBLY

839-15100-00-00

1
Out of stock

3

UNAVAILABLE IN PRICE BOOK (91810-02015)

91830-02114-00

1
Out of stock

4

SCREW PAN HEAD

98580-06545-00

1

$5.78

In stock

5

SCREW PAN HEAD

98580-06550-00

1

$6.17

In stock

6

SCREW, PANHED (GC2)

98580-06555-00

1
Out of stock

7

BOLT, STUD

(90116-08083-00)

1
Out of stock

8

GASKET, CYLINDER

812-11351-09-00

1
Out of stock

9

CYLINDER 1

(823-11311-00-00)

1
Out of stock

9

CYLINDER 1

845-11311-00-00

1
Out of stock

10

GASKET, CYLINDER HEAD 1

812-11181-00-00

1
Out of stock

11

HEAD, CYLINDER 1

(823-11111-00-00)

1
Out of stock

11

HEAD, CYLINDER 1

(845-11111-00-00)

1
Out of stock

12

BOLT, STUD

90116-08057-00

1
Out of stock

13

NUT, HOLDING (812-11171-00)

812-11171-00-00

1
Out of stock

14

WASHER, PLATE (397)

90201-08100-00

—

$6.17

In stock

15

CHAMPION N2G 10PK

(CMP-N2G00-00-00)

1
Out of stock

15

CHAMPION N3G 10PK

(CMP-N3G00-00-00)

1
Out of stock

16

SCREW PAN HEAD

98580-06010-00

—

$6.17

In stock

17

GASKET 838153840000

90430-06016-00

—

$6.18

In stock

17

GASKET

90430-06017-00

1
Out of stock

18

JOINT, BREATHER

J38-11116-00-00

—

$2.77

In stock
