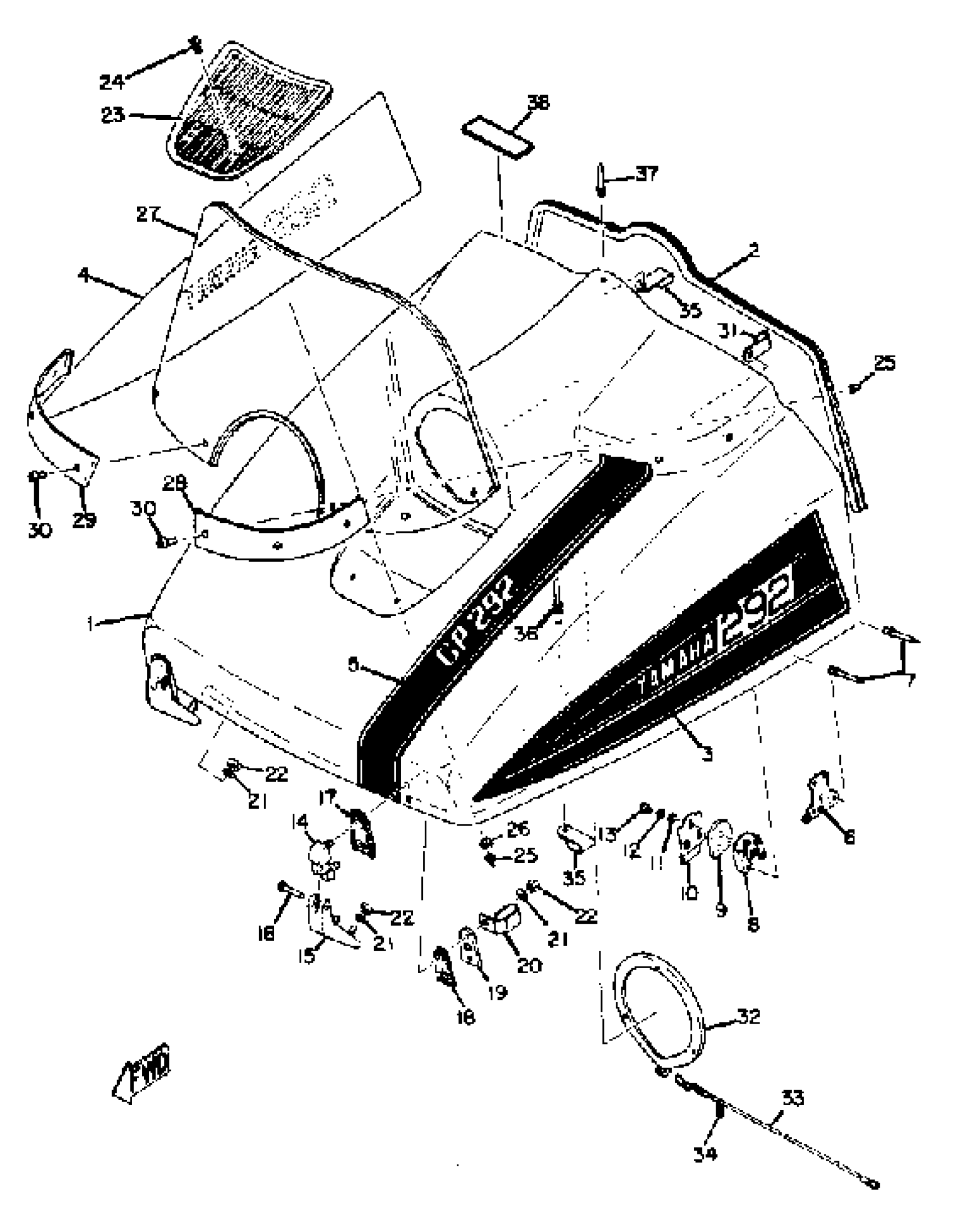

Find the part on the Shroud GP-292 diagram for your 1972 Yamaha GP292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha GP292 Shroud GP-292 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHROUD

(806-77111-00-00)

1
Out of stock

2

TRIM 2

(806-77166-00-00)

1
Out of stock

3

ORNAMENT 1

(822-77163-00-00)

1
Out of stock

4

ORNAMENT 2

(822-77164-00-00)

1
Out of stock

5

ORNAMENT 3

823-77169-00-00

1
Out of stock

7

. BODY, LATCH 1

806-77171-00-00

1
Out of stock

7

. RIVET, BLIND ()806-77175-00)

90267-40026-00

1
Out of stock

8

CLAMP 4

810-77138-00-00

1
Out of stock

9

WASHER 2

810-77179-00-00

1
Out of stock

10

CLAMP 2

810-77136-00-00

1
Out of stock

11

WASHER, PLATE 8067717800

90201-05029-00

1

$5.12

In stock

12

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

13

BOLT, HEXAGON

97013-05010-00

1

$0.85

In stock

14

HINGE 1

(806-77145-00-00)

1
Out of stock

15

HINGE 3

806-77147-00-00

1
Out of stock

16

PIN (806-77157-00)

90243-05002-00

1
Out of stock

17

DAMPER 1

(806-77198-00-00)

1
Out of stock

18

DAMPER 2

810-77199-00-00

1
Out of stock

19

PLATE, BACK UP 1

810-77153-00-00

1
Out of stock

20

CLAMP

90465-06013-00

1
Out of stock

21

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

22

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

23

LOUVER CMPLT

(810-77130-00-00)

1
Out of stock

24

SCREW, BINDING

98907-05016-00

—

$6.18

In stock

25

NUT, T (802-77217-00)

90180-05004-00

1
Out of stock

26

CLAMP 1

(810-77135-00-00)

1
Out of stock

27

WINDSHIELD

(806-77210-00-00)

1
Out of stock

28

TRIM, LOWER

(806-77214-00-00)

1
Out of stock

29

TRIM 3

806-77215-00-00

1
Out of stock

30

SCREW, BIND

98903-05016-00

1
Out of stock

31

CLAMP(83R)

90461-08113-00

—

$10.48

In stock

32

HOLDER, ROD 1

(817-77139-00-00)

1
Out of stock

33

STOPPER, SHROUD

821-77118-00-00

1
Out of stock

34

CLAMP, ROD

(806-77159-00-00)

1
Out of stock

35

CLAMP

(90461-05001-00)

1
Out of stock

36

RIVET, BLIND

(90267-32020-00)

1
Out of stock

37

RIVET (813)

90267-32070-00

—

$2.25

In stock

38

LABEL, SAFETY

288-21659-00-00

1
Out of stock
