1972 Yamaha GP292 Engine Bracket GP-292 Diagram

← All diagrams

Find the part on the Engine Bracket GP-292 diagram for your 1972 Yamaha GP292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

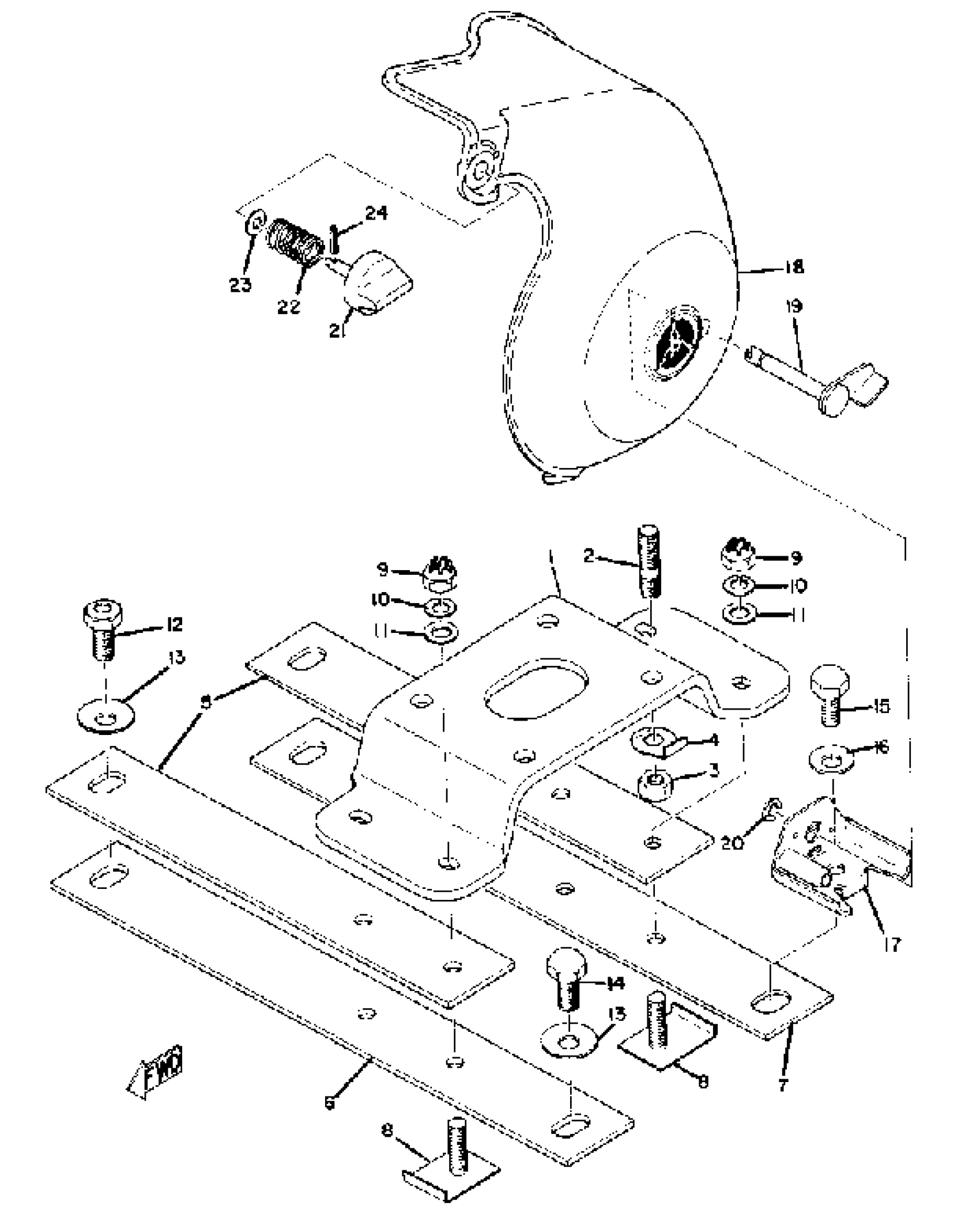

1972 Yamaha GP292 Engine Bracket GP-292 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, ENGINE 1

812-21411-00-00

1
Out of stock

2

BOLT, STUD

(90116-10084-00)

1
Out of stock

3

WASHER, LOCK

90215-10077-00

1
Out of stock

5

BRACKET, ENG LOWER

(822-21489-00-00)

1
Out of stock

6

BRACKET, ENGINE 2

(822-21419-00-00)

1
Out of stock

7

BRACKET, ENGINE 3

(822-21429-00-00)

1
Out of stock

8

BOLT, ENG MNTNG 2

(822-21482-00-00)

1
Out of stock

9

NUT, U

95617-08100-00

1

$6.78

In stock

10

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

11

WASHER, PLATE (397)

90201-08100-00

1

$6.17

In stock

12

BOLT

(90101-10057-00)

1
Out of stock

13

WASHER, CONICAL SPR

90208-10013-00

1
Out of stock

14

BOLT(8BT)

97017-10020-00

1
Out of stock

15

BOLT

90101-10055-00

1
Out of stock

16

WASHER 823214910000

90208-10012-00

1

$13.20

In stock

17

BRACKET 1

(821-77315-00-00)

1
Out of stock

18

GUARD, DRIVE

(810-77311-01-00)

1
Out of stock

19

ARM, FITTING

806-77314-00-00

1
Out of stock

20

CIRCLIP(53L)

99001-06600-00

—

$0.70

In stock

21

KNOB

(806-77324-00-00)

1
Out of stock

22

SPRING 1

806-77325-00-00

1
Out of stock

23

WASHER, PLATE

90201-06095-00

—

$6.31

In stock

24

PIN, SPRING

91690-25016-00

—
Out of stock
