1972 Yamaha GP292 Exhaust GP-292 Diagram

← All diagrams

Find the part on the Exhaust GP-292 diagram for your 1972 Yamaha GP292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

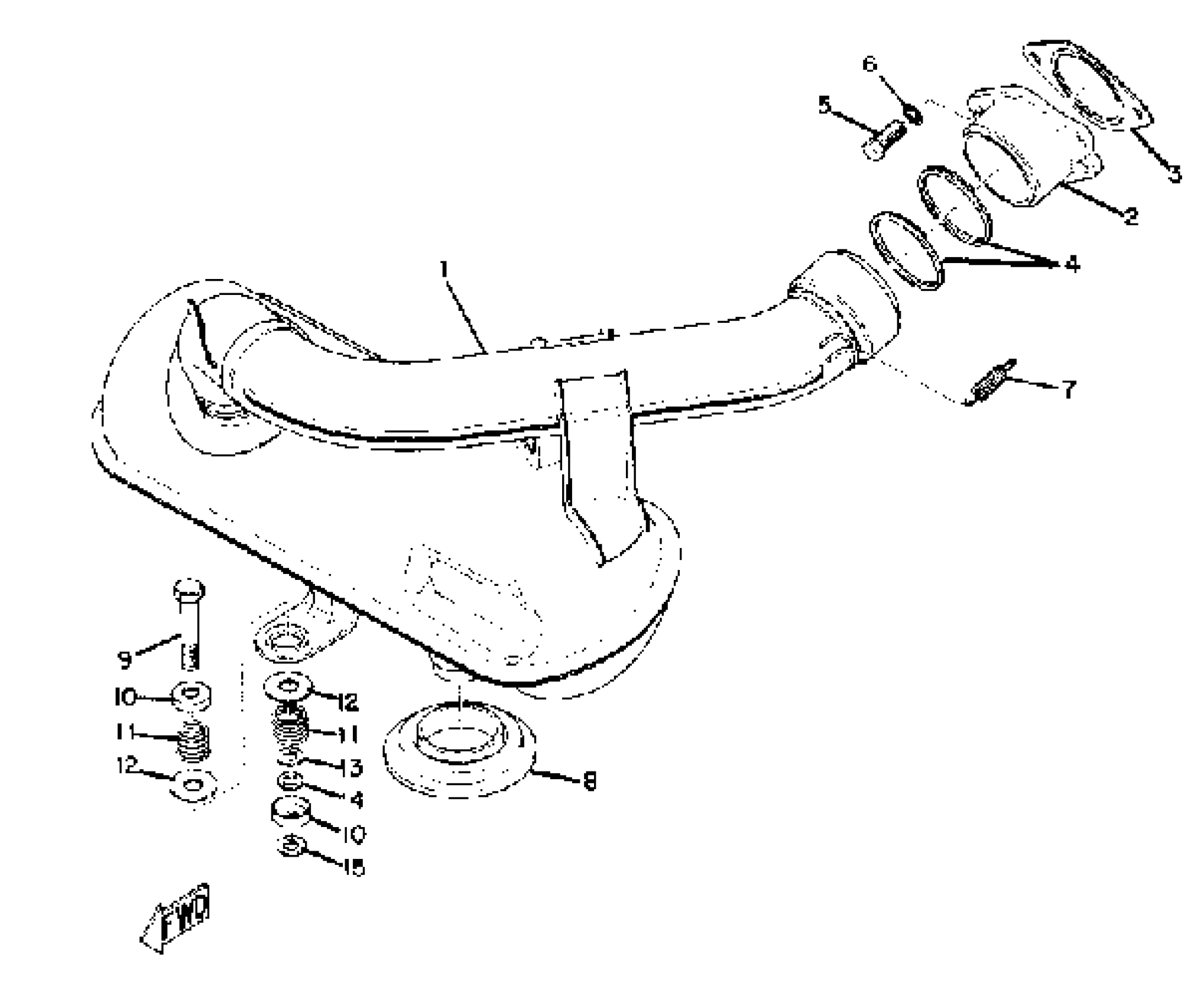

1972 Yamaha GP292 Exhaust GP-292 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MUFFLER ASSEMBLY L

(823-14710-00-00)

1
Out of stock

2

NUT, RING

(822-14612-00-00)

1
Out of stock

3

GASKET, EXHAUST PIPE

214-14613-09-00

1

$15.83

In stock

4

GASKET, EXST PIPE

(812-14623-00-00)

1
Out of stock

5

BOLT (682)

97013-08025-00

1

$6.80

In stock

6

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

7

SPRING, HOOK (864)

90506-20074-00

1

$7.74

In stock

8

PROTECTOR, MUFF 1

823-14718-00-00

1
Out of stock

9

BOLT

90109-08293-00

1
Out of stock

10

PLATE, MUFFLER

(812-14793-00-00)

1
Out of stock

11

SPRING, COMPRESSION

(90501-18115-00)

1
Out of stock

12

WASHER, PLATE(3BM)

90201-105R9-00

1
Out of stock

13

SPACER

(90560-08065-00)

1
Out of stock

14

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

15

WASHER, PLATE

(90201-07080-00)

1
Out of stock
