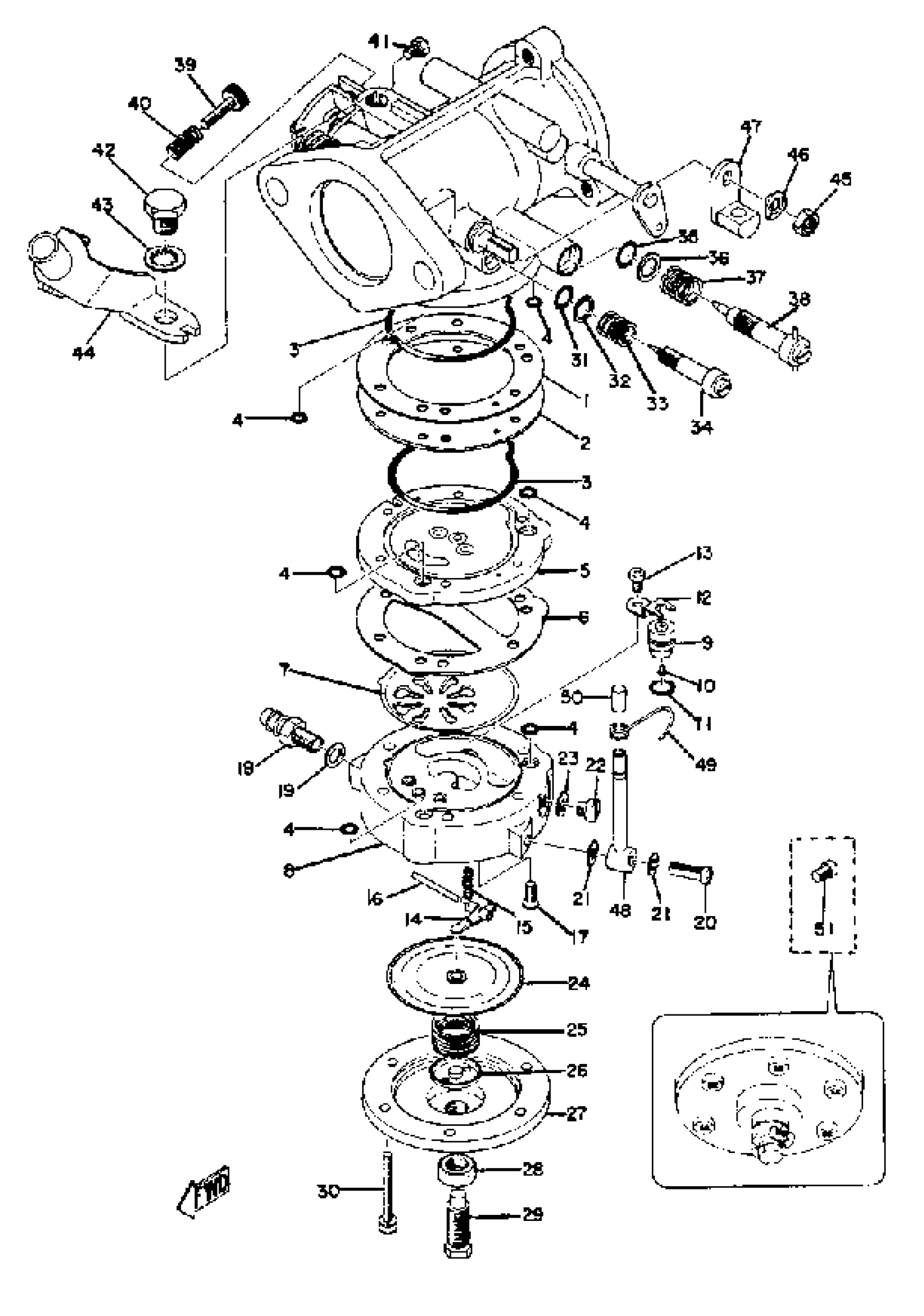

Find the part on the Carburetor GP-292 diagram for your 1972 Yamaha GP292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1972 Yamaha GP292 Carburetor GP-292 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. GASKET

806-14536-00-00

1
Out of stock

1

CARBURETOR ASSEMBLY 1

823-14501-00-00

1
Out of stock

2

. DIAPHRAGM, PUMP

806-14541-00-00

1
Out of stock

3

. O-RING

806-14562-00-00

1
Out of stock

4

. O-RING

810-14561-00-00

1
Out of stock

5

BODY, PUMP 1

(824-14542-00-00)

1
Out of stock

6

GASKET

(806-14553-00-00)

1
Out of stock

7

VALVE,CHECK

806-14552-01-00

1

$47.25

In stock

8

BODY, PUMP 2

(810-14543-00-00)

1
Out of stock

9

VALVE SEAT ASSEMBLY

(824-14590-00-00)

1
Out of stock

10

. PIN, FLOAT

676-14186-00-00

1

$7.15

In stock

11

. O-RING

810-24486-00-00

1
Out of stock

12

PLATE, PIN FITTING

(810-14549-00-00)

1
Out of stock

13

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

14

. SPRING

810-14556-00-00

1
Out of stock

15

. SPRING

810-14556-00-00

1
Out of stock

16

PIN, FLOAT ARM

(806-14548-00-00)

1
Out of stock

17

SCREW, FLAT

98707-03008-00

—

$5.62

In stock

18

JOINT

(810-14568-00-00)

1
Out of stock

19

WASHER

(810-14558-00-00)

1
Out of stock

20

. SCREW

8A1-14592-00-00

1
Out of stock

21

. WASHER

806-14559-00-00

1
Out of stock

22

SCREW

(806-14567-01-00)

1
Out of stock

23

. WASHER

810-14597-00-00

1
Out of stock

24

DIAPHRAGM

810-14545-00-00

—
Out of stock

25

SPRING

(810-14555-00-00)

1
Out of stock

26

SEAT, SPRING

(810-14136-00-00)

1
Out of stock

27

BODY, PUMP 3

(810-14544-00-00)

1
Out of stock

28

. NUT

95380-08700-00

1

$3.07

In stock

29

. SCREW, STOP

824-14565-00-00

1
Out of stock

30

SCREW

(824-14567-00-00)

1
Out of stock

31

. O-RING

824-14563-00-00

1
Out of stock

32

. WASHER

806-14596-00-00

1
Out of stock

33

SPRING, AJST SCREW

(824-14531-00-00)

1
Out of stock

34

. SCREW, ADJUST

824-14522-00-00

1
Out of stock

35

. O-RING

824-14564-00-00

1
Out of stock

36

. WASHER

824-14597-00-00

1
Out of stock

37

SPRING, AJST SCREW

(824-14533-00-00)

1
Out of stock

38

SCREW, ADJUST

(824-14521-00-00)

1
Out of stock

39

SCREW, STOP

(810-14523-00-00)

1
Out of stock

40

SPRING, AJST SCREW

(806-14533-00-00)

1
Out of stock

41

SCREW

(810-14591-00-00)

1
Out of stock

42

BOLT(8X2)

90101-08344-00

—

$1.12

In stock

43

WASHER, IN.TOOTH

(92901-08300-00)

1
Out of stock

44

BRACKET, THROTTLE

(823-14571-00-00)

1
Out of stock

45

NUT, HEXAGON SMALL

95317-05700-00

—

$6.18

In stock

46

WASHER, LOCK

(806-14599-00-00)

1
Out of stock

47

. LEVER

810-14573-00-00

1
Out of stock

48

. PIPE, AIRVENT

810-14197-02-00

1
Out of stock

49

CLIP

(824-14159-00-00)

1
Out of stock

50

. CAP, BLIND

810-24462-01-00

1
Out of stock

51

SCREW, PAN HEAD(3XP)

98517-04006-00

1

$4.10

In stock
