1972 Yamaha GP292 Exhaust GP-292B Diagram

← All diagrams

Find the part on the Exhaust GP-292B diagram for your 1972 Yamaha GP292, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

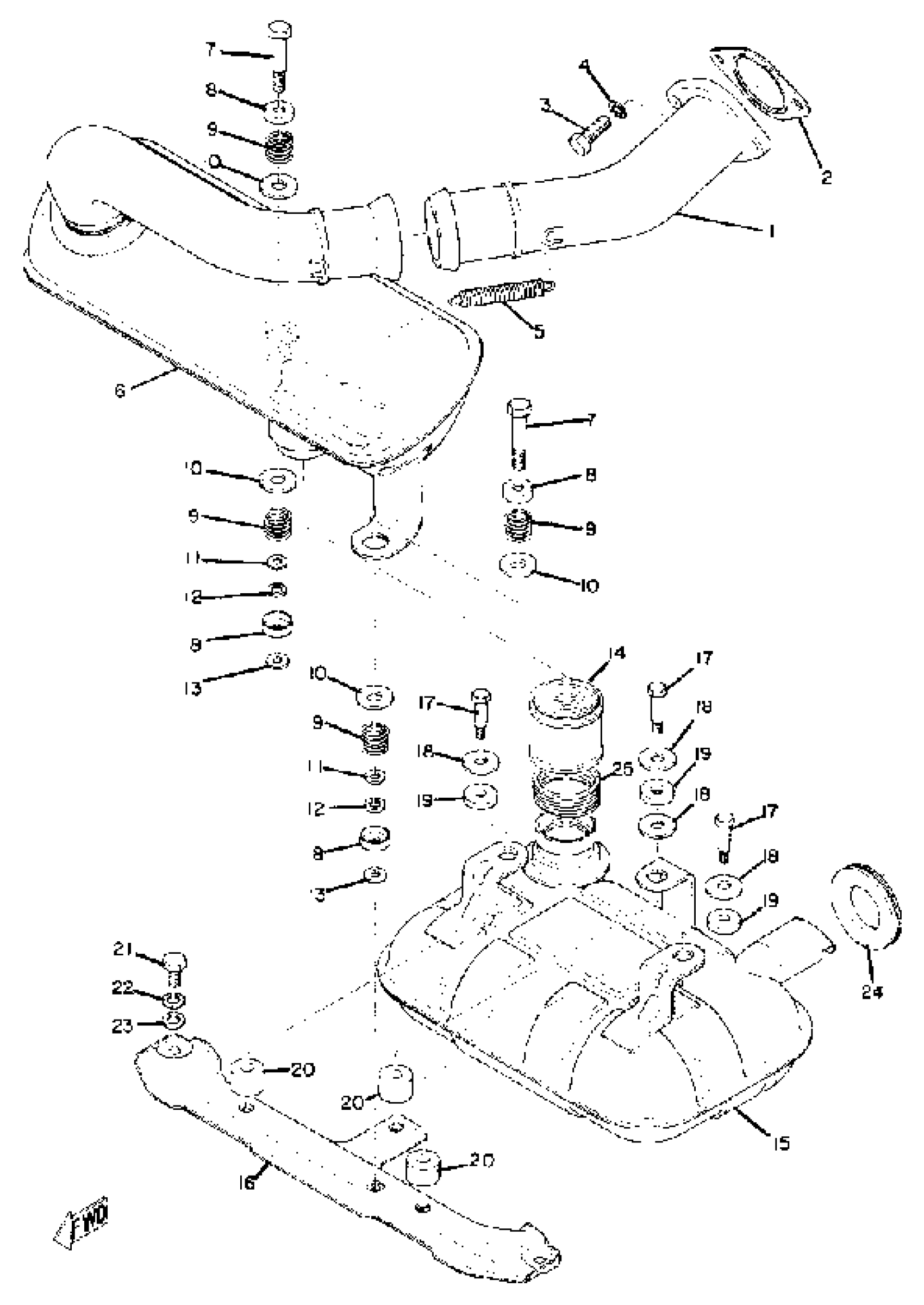

1972 Yamaha GP292 Exhaust GP-292B Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

EXHAUST PIPE ASSEMBLY L

(839-14610-00-00)

1
Out of stock

2

GASKET, EXHAUST

834-14613-09-00

—
Out of stock

3

BOLT (682)

97013-08025-00

1
Out of stock

4

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

5

SPRING, MUFFLER

821-14773-00-00

1
Out of stock

6

MUFFLER ASSEMBLY L

(845-14710-02-00)

1
Out of stock

7

BOLT

90109-08293-00

1
Out of stock

8

PLATE, MUFFLER

(812-14793-00-00)

1
Out of stock

9

SPRING, COMPRESSION

90501-18114-00

1
Out of stock

10

WASHER, PLATE(3BM)

90201-105R9-00

1
Out of stock

11

SPACER

(90560-08065-00)

1
Out of stock

12

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

13

WASHER, PLATE

(90201-07080-00)

1
Out of stock

14

GASKET, MUFFLER

841-14714-00-00

1
Out of stock

15

MUFFLER ASSEMBLY R

841-14720-01-00

1
Out of stock

16

STAY, MUFFLER 1

(841-14771-02-00)

1
Out of stock

17

BOLT

90109-06023-00

1
Out of stock

18

WASHER, PLATE (5J0)

90201-085E6-00

—
Out of stock

19

DAMPER, MUFFLER 2

(841-14757-00-00)

1
Out of stock

20

DAMPER, MUFFLER

(841-14747-01-00)

1
Out of stock

21

BOLT, HEXAGON

97013-08016-00

—
Out of stock

22

YBS67-8 WASHER, SPRING

92990-08100-00

1
Out of stock

23

WASHER, PLAIN

92990-08200-00

1
Out of stock

24

PROTECTOR, MUFF 1

841-14718-00-00

1
Out of stock

25

SPRING, COMPRESSION

(90504-30004-00)

1
Out of stock
