2005 Kawasaki ZZR600 Muffler Diagram

← All diagrams

Find the part on the Muffler diagram for your 2005 Kawasaki ZZR600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

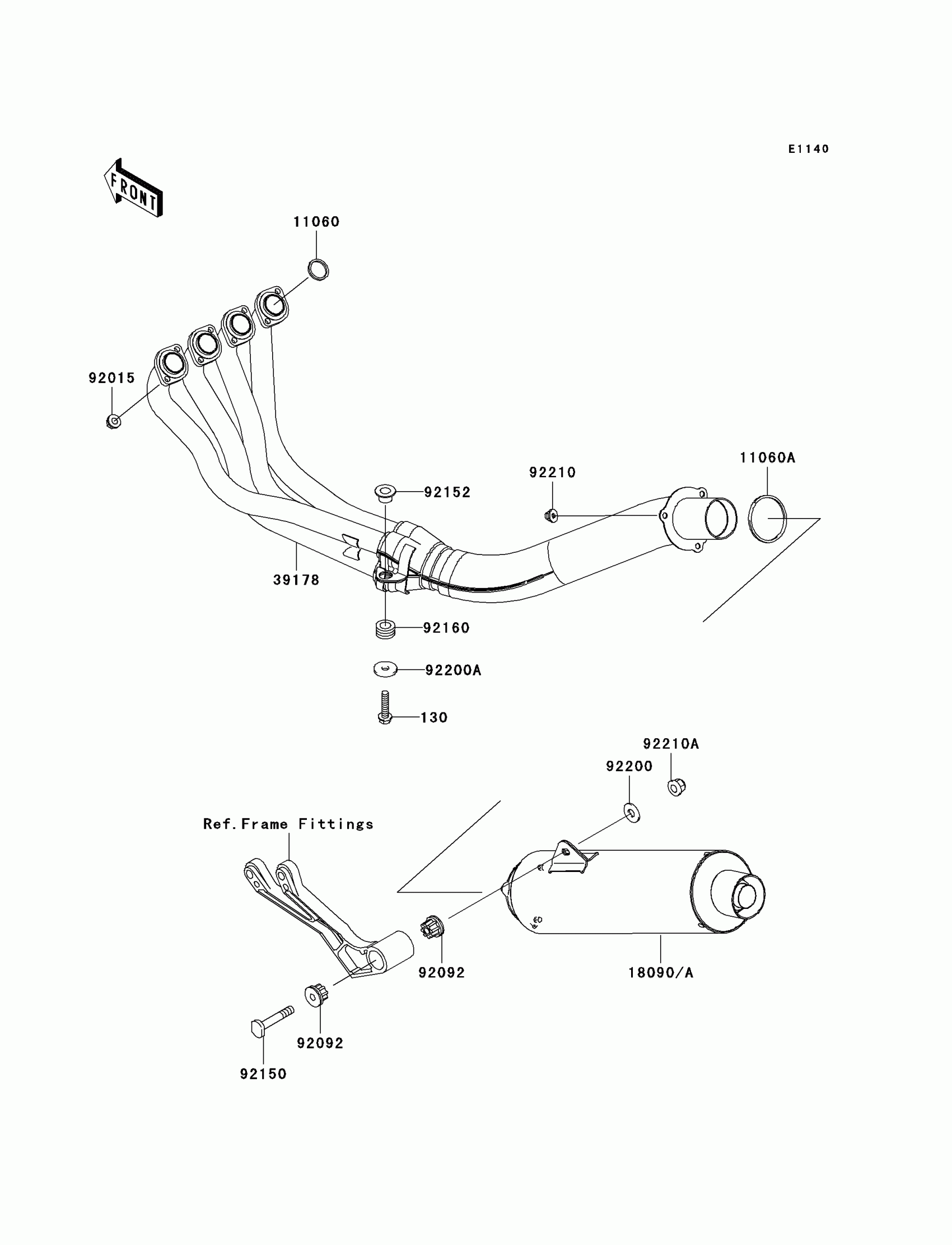

2005 Kawasaki ZZR600 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X35

130Z0835

1
Out of stock

11060

GASKET,EXHAUST PIPE

11060-1203

1

$8.56

In stock

11060A

1

$24.34

In stock

39178

1

$1,420.43

In stock

92015

NUT,8MM

92015-1402

1

$3.72

In stock

92092

1

$13.70

In stock

92150

BOLT,10X55

92150-1792

1

$8.44

In stock

92152

COLLAR

92152-1211

1

$7.42

In stock

92160

DAMPER,MUFFLER

92160-1543

1

$3.59

In stock

92200

WASHER,10.5X25X2.0

92200-1377

1
Out of stock

92200A

WASHER,8.5X28X3.2

92200-1392

1
Out of stock

92210

NUT,CAP,8MM

92210-1120

1
Out of stock

92210A

NUT,CAP,10MM

92210-1121

1
Out of stock

18090

BODY-COMP-MUFFLER

18090-1820

1

$931.78

In stock

18090A

BODY-COMP-MUFFLER

18090-1821

1

$978.44

In stock
