2005 Kawasaki ZZR600 Crankcase Diagram

← All diagrams

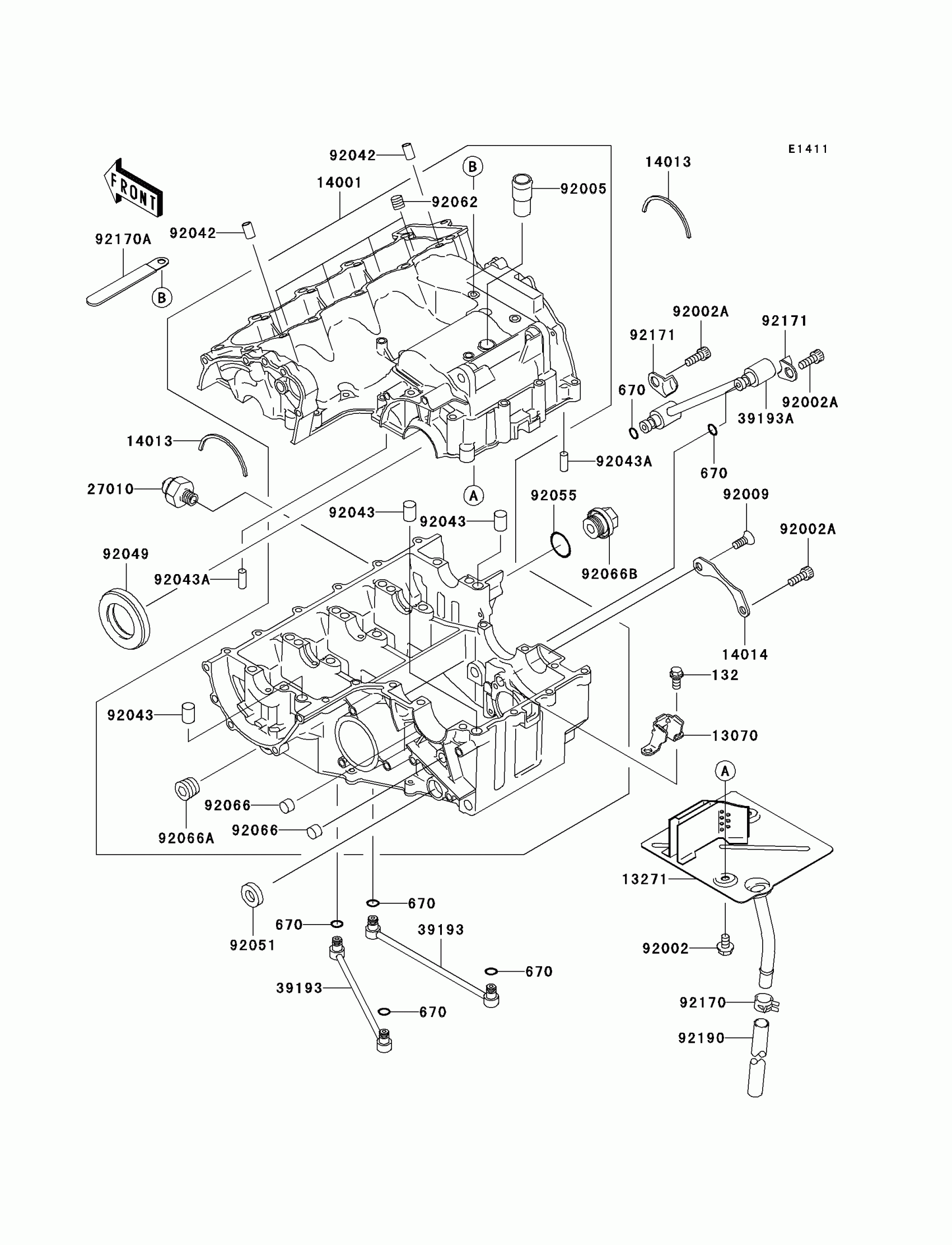

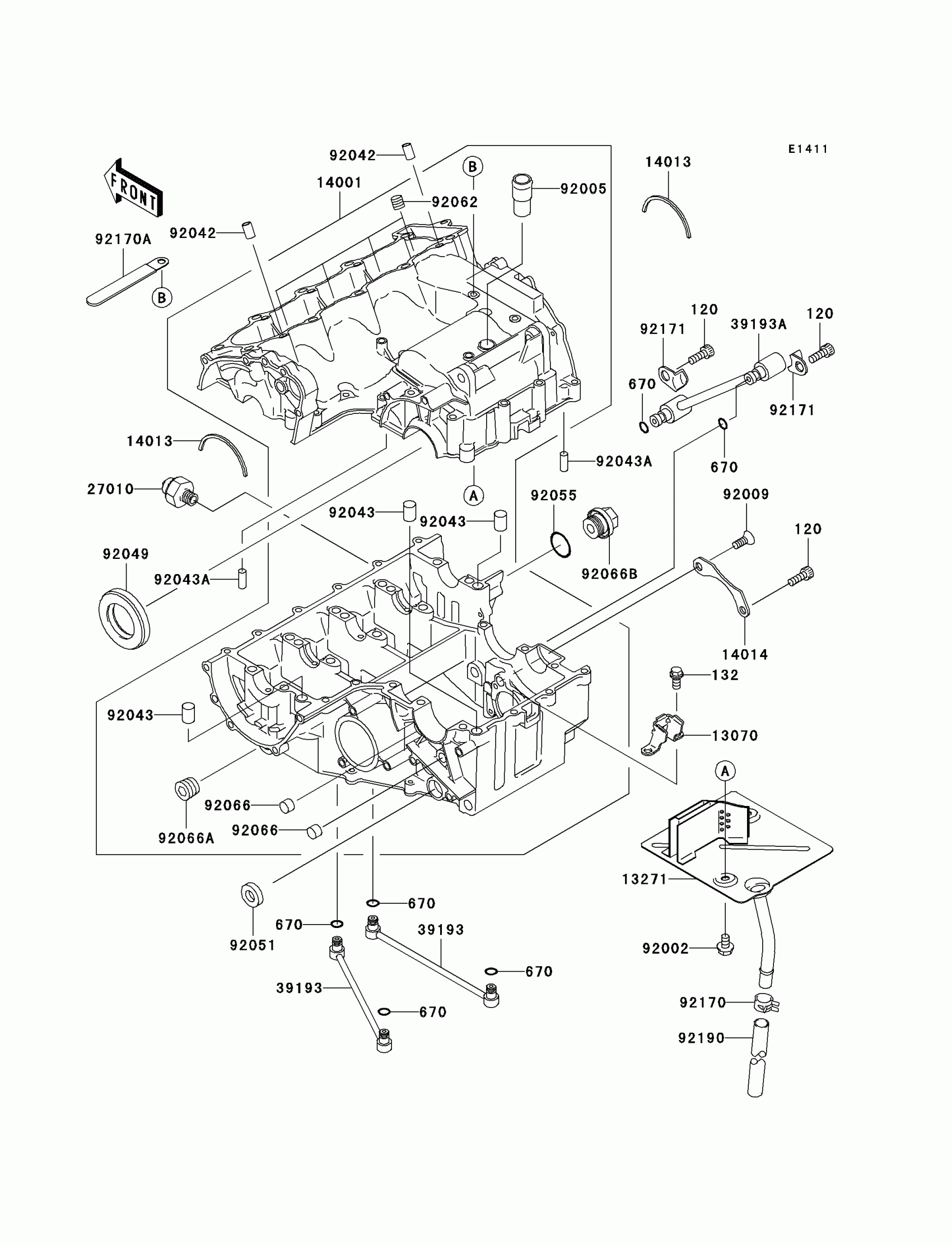

Find the part on the Crankcase diagram for your 2005 Kawasaki ZZR600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki ZZR600 Crankcase Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,6X16

120P0616

1
Out of stock

132

BOLT-FLANGED-SMALL,6X12

132H0612

1
Out of stock

670

O RING

670D1505

1

$3.43

In stock

13070

GUIDE

13070-1397

1

$5.42

In stock

13271

PLATE,BREATHER

13271-0115

1
Out of stock

14001

SET-CRANKCASE

14001-1300

1
Out of stock

14013

RING-POSITION

14013-004

1
Out of stock

14014

PLATE-POSITION

14014-1123

1
Out of stock

27010

SWITCH,OIL PRESSURE

27010-1313

1

$36.57

In stock

39193

PIPE-OIL,MAIN-INPUT

39193-1019

1
Out of stock

39193A

PIPE-OIL

39193-1020

1

$38.87

In stock

92002

BOLT,6X10

92002-1449

1

$3.68

In stock

92005

FITTING,BREATHER

92005-1238

1
Out of stock

92009

SCREW,6X16

92009-1360

1
Out of stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92043

PIN,10X14

92043-1506

1

$2.66

In stock

92043A

PIN,6X16

92043-1690

1

$3.97

In stock

92049

SEAL-OIL,TC32528

92049-1307

1
Out of stock

92051

SEAL-OIL,TB13225.5

92051-005

1
Out of stock

92055

RING-O,20X2

92055-1146

1

$6.82

In stock

92062

NOZZLE,5X6,SILVER

92062-1086

1

$3.69

In stock

92066

PLUG

92066-1110

1

$5.66

In stock

92066A

PLUG,PT3/8X12

92066-1252

1

$5.15

In stock

92066B

1

$8.69

In stock

92170

CLAMP

92170-1167

1

$5.42

In stock

92170A

CLAMP

92170-1925

1

$1.98

In stock

92171

CLAMP,OIL PIPE

92171-0302

1

$4.25

In stock

92190

TUBE,9X12X180

92190-1580

1

$3.94

In stock
