2005 Kawasaki ZZR600 Engine Cover Diagram

← All diagrams

Find the part on the Engine Cover diagram for your 2005 Kawasaki ZZR600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

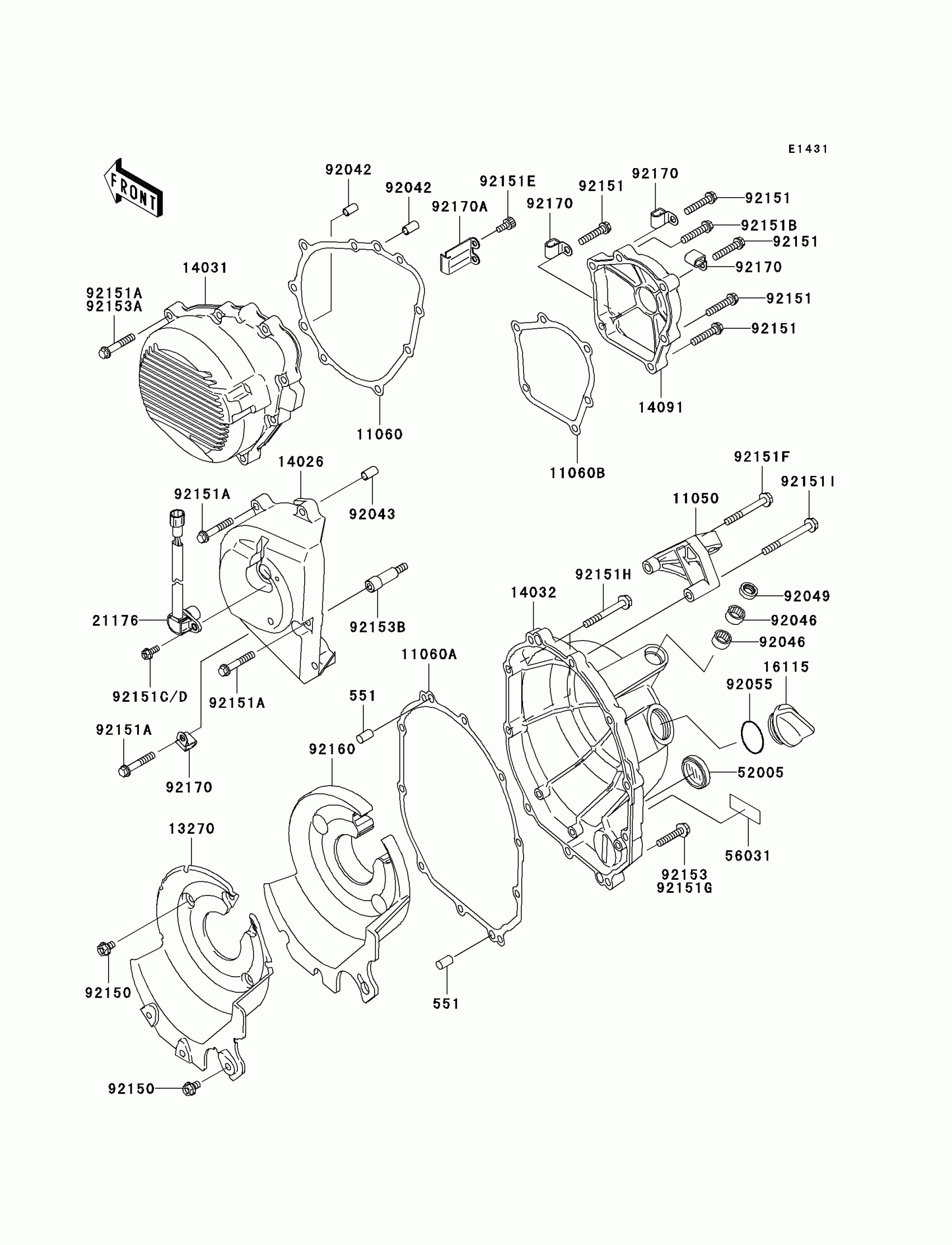

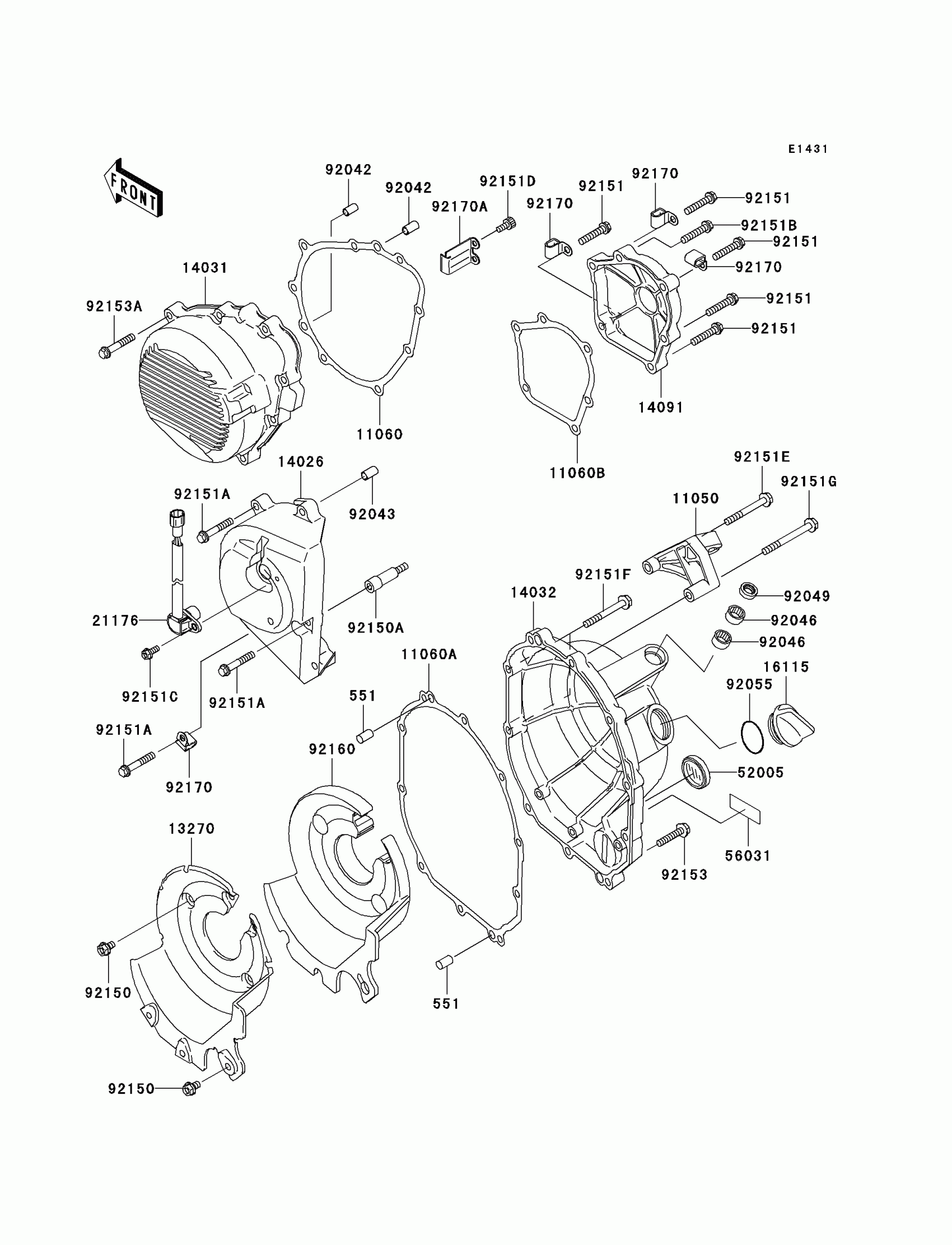

2005 Kawasaki ZZR600 Engine Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

551

PIN-DOWEL,8X14

551A0814

1

$1.08

In stock

11050

1

$63.97

In stock

11060

1

$11.24

In stock

11060A

GASKET,CLUTCH COVER

11060-1853

1

$26.22

In stock

11060B

1

$7.18

In stock

13270

PLATE,CLUTCH COVER

13270-1350

1
Out of stock

14026

COVER-CHAIN

14026-1277

1

$178.75

In stock

14031

COVER-GENERATOR

14031-1373

1

$207.32

In stock

14032

COVER-CLUTCH

14032-1500

1

$313.90

In stock

14091

COVER,PULSER

14091-0319

1

$79.48

In stock

16115

CAP-OIL FILLER

16115-1009

1

$11.32

In stock

21176

SENSOR,SPEED

21176-0032

1

$134.28

In stock

52005

GAUGE,OIL LEVEL

52005-1057

1

$23.13

In stock

56031

1

$5.44

In stock

92042

PIN,DOWEL,6.3X8X14

92042-007

1

$4.51

In stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92046

BEARING-NEEDLE,HK1210

92046-1010

1
Out of stock

92049

SEAL-OIL,TB12205.5

92049-1271

1
Out of stock

92055

RING-O,31.5X2.6

92055-049

1

$3.43

In stock

92150

BOLT,5X8

92150-1406

1

$3.56

In stock

92150A

BOLT

92150-1889

1

$16.92

In stock

92151

BOLT,6X30

92151-1134

1

$1.81

In stock

92151A

BOLT,6X35

92151-1135

1

$3.33

In stock

92151B

BOLT,6X30

92151-1201

1
Out of stock

92151C

BOLT,FLANGED,5X12

92151-1305

1

$1.39

In stock

92151D

BOLT,SOCKET,5X12

92151-1365

1

$1.63

In stock

92151E

BOLT,6X50

92151-1545

1

$2.25

In stock

92151F

BOLT,6X50

92151-1790

1
Out of stock

92151G

BOLT,6X60

92151-1791

1

$2.25

In stock

92153

BOLT,6X30

92153-0608

1
Out of stock

92153A

BOLT,6X35

92153-0634

1
Out of stock

92160

DAMPER,CLUTCH COVER

92160-1554

1

$61.95

In stock

92170

CLAMP

92170-1577

1

$3.03

In stock

92170A

CLAMP

92170-1843

1

$3.15

In stock
