2005 Kawasaki ZZR600 Cylinder Head Diagram

← All diagrams

Find the part on the Cylinder Head diagram for your 2005 Kawasaki ZZR600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

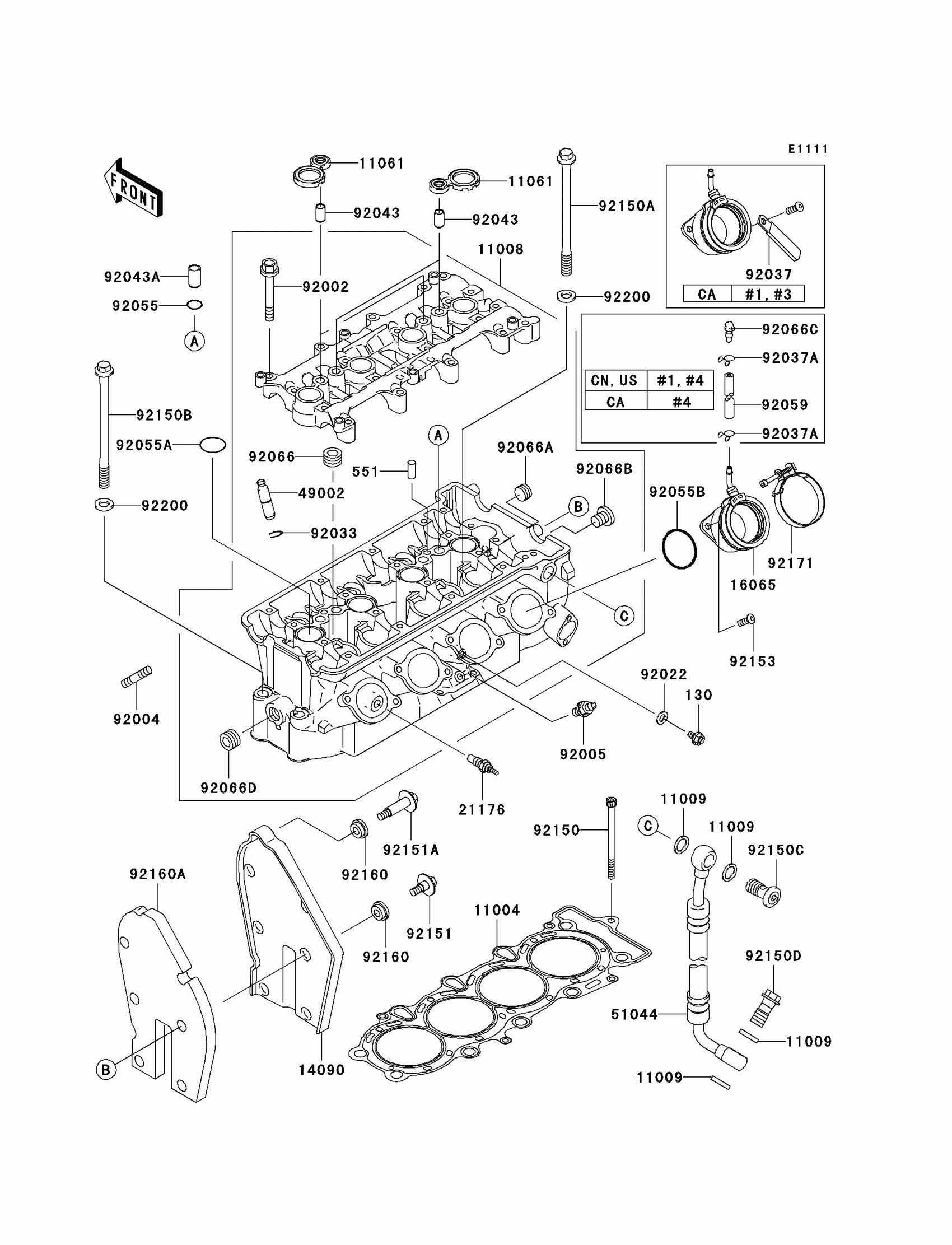

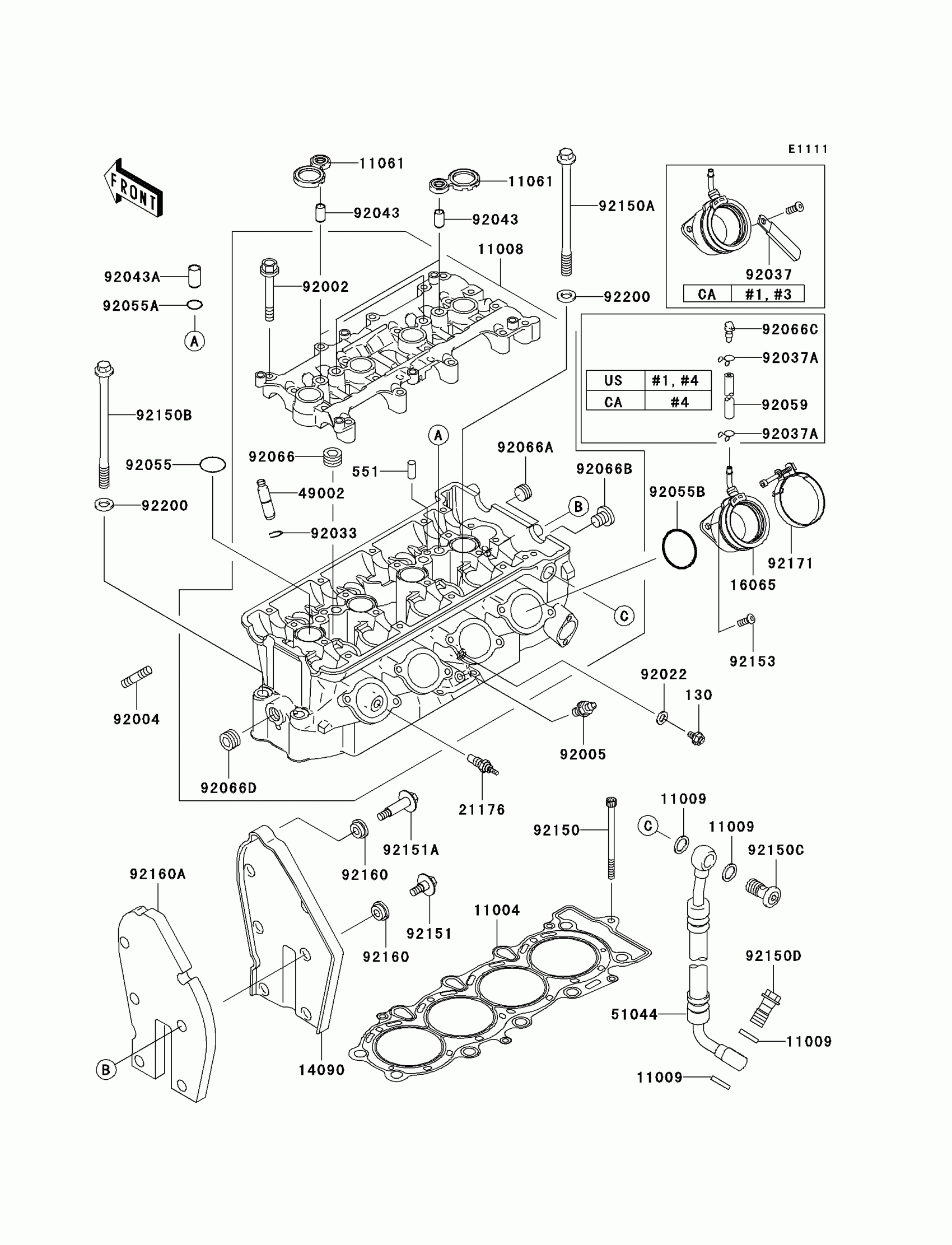

2005 Kawasaki ZZR600 Cylinder Head Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11004

GASKET-HEAD

11004-1348

1
Out of stock

11008

HEAD-COMP-CYLINDER

11008-1397

1

$2,491.96

In stock

11009

GASKET,14X19.5X1.4

11009-1461

1

$4.23

In stock

11061

GASKET,BEARING CAP

11061-0042

1

$9.17

In stock

14090

COVER

14090-1900

1

$85.58

In stock

16065

HOLDER-CARBURETOR

16065-1375

1

$39.32

In stock

21176

SENSOR

21176-1075

1
Out of stock

49002

GUIDE-VALVE

49002-1144

—

$34.91

In stock

51044

TUBE-ASSY,OIL

51044-1179

1

$160.96

In stock

92002

BOLT,6X40

92002-1756

1
Out of stock

92004

STUD,8X22

92004-1249

1
Out of stock

92005

FITTING

92005-1273

1
Out of stock

92022

WASHER,6.2X11X1

92022-304

1
Out of stock

92033

RING-SNAP

92033-1247

1

$3.11

In stock

92043

PIN,6.2X8X14

92043-1263

1

$0.49

In stock

92043A

PIN,8.2X10X14

92043-1264

1

$0.53

In stock

92055

RING-O,25.5X2

92055-1403

1

$3.27

In stock

92055A

RING-O,11.5X1.5

92055-1469

1

$2.61

In stock

92055B

RING-O,42X1.9

92055-1536

1

$2.27

In stock

92066

PLUG,PT1/2X12.5

92066-0002

1

$8.75

In stock

92066A

PLUG,PT1/8X7

92066-1227

1

$5.15

In stock

92066B

PLUG,PT1/4X8.9

92066-1260

1

$3.81

In stock

92066D

PLUG,PT3/8X10

92066-1420

1

$7.68

In stock

92150

BOLT,SOCKET,6X92

92150-1928

1
Out of stock

92150A

BOLT,L=148

92150-1934

1

$13.96

In stock

92150B

BOLT,L=140

92150-1935

1

$13.20

In stock

92150C

BOLT

92150-1944

1

$11.46

In stock

92150D

BOLT

92150-1945

1

$16.93

In stock

92151

BOLT,L=17

92151-1299

1

$5.17

In stock

92151A

BOLT,6X34

92151-1836

1

$5.41

In stock

130

BOLT-FLANGED,6X10

130Y0610

1
Out of stock

551

PIN-DOWEL,6X12

551A0612

1

$0.90

In stock

92153

BOLT,TORX,6X14

92153-0406

1
Out of stock

92160

DAMPER

92160-1681

1

$4.10

In stock

92160A

DAMPER

92160-1894

1

$40.84

In stock

92171

CLAMP

92171-1155

1
Out of stock

92200

WASHER,10.5X19X2.3

92200-1042

1
Out of stock

92037

CLAMP,L=45

92037-1539

1

$4.42

In stock

92037A

CLAMP

92037-1712

1

$3.97

In stock

92037A

CLAMP

92037-1712

1

$3.97

In stock

92059

TUBE,4X9X100

92059-1058

1

$15.01

In stock

92059

TUBE,4X9X100

92059-1058

1

$15.01

In stock

92066C

PLUG

92066-1347

1

$7.73

In stock

92066C

PLUG

92066-1347

1

$7.73

In stock
