2005 Kawasaki ZZR600 Cylinder Head Cover Diagram

← All diagrams

Find the part on the Cylinder Head Cover diagram for your 2005 Kawasaki ZZR600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

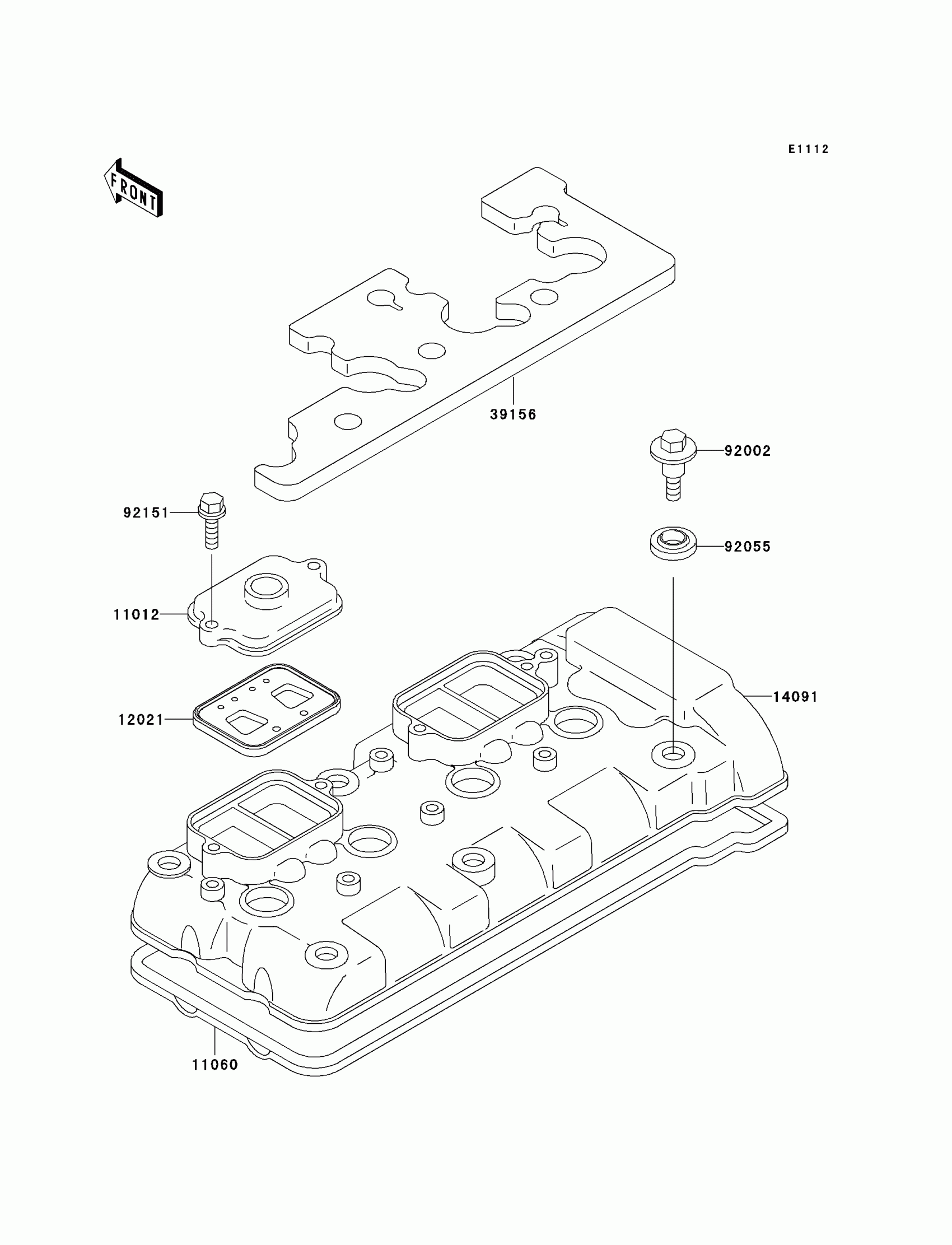

2005 Kawasaki ZZR600 Cylinder Head Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11012

CAP,REED VALVE

11012-1758

1
Out of stock

11060

GASKET,HEAD COVER

11060-1667

1
Out of stock

12021

VALVE-ASSY-REED

12021-1119

1
Out of stock

14091

COVER,CYLINDER HEAD

14091-1140

1
Out of stock

39156

PAD

39156-1455

1
Out of stock

92002

BOLT,FLANGED,6X22.5

92002-1327

1
Out of stock

92055

RING-O,HEAD COVER BOLT

92055-1352

1
Out of stock

92151

BOLT,6X20

92151-1407

1
Out of stock
← Cylinder Head Cylinder/piston →
