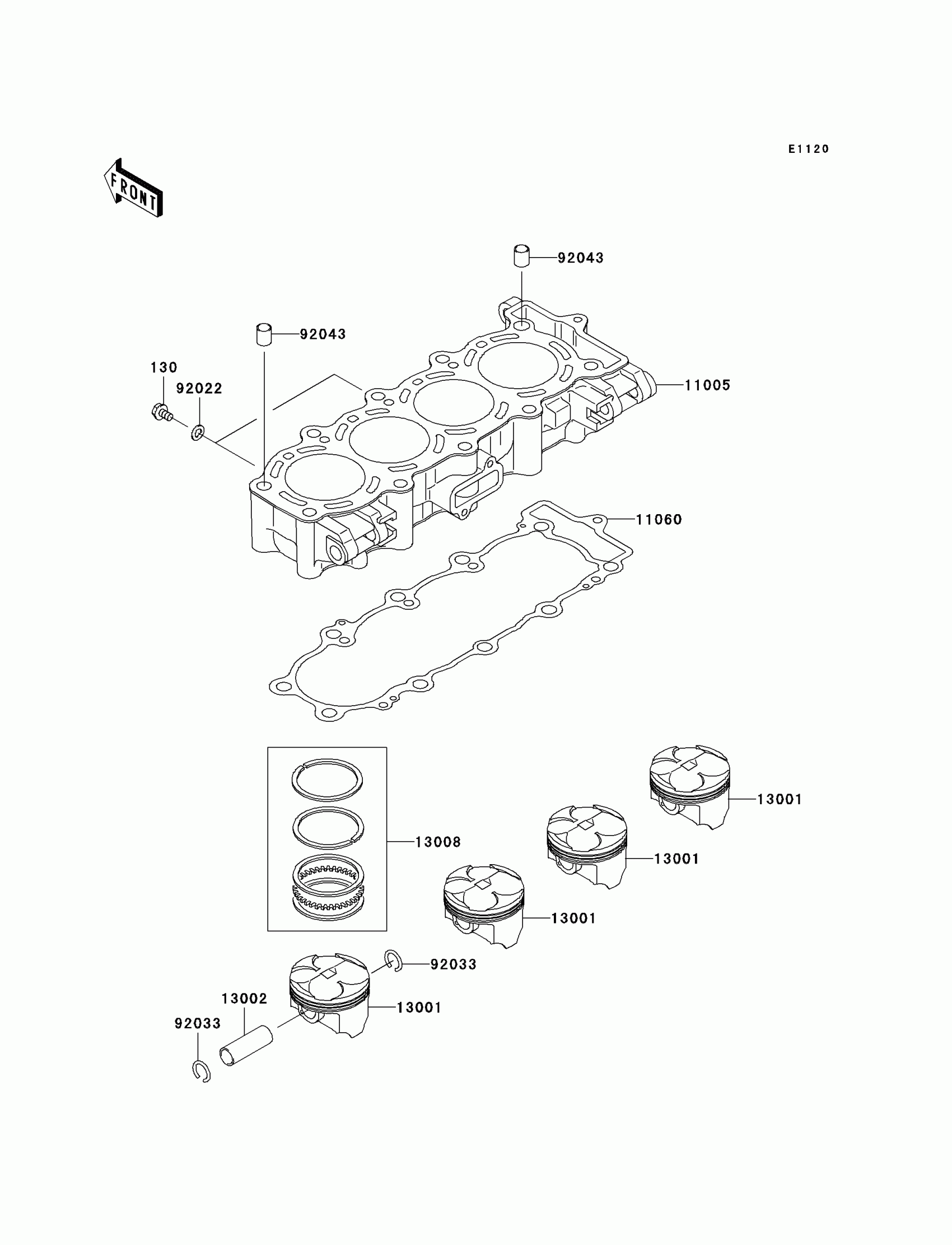

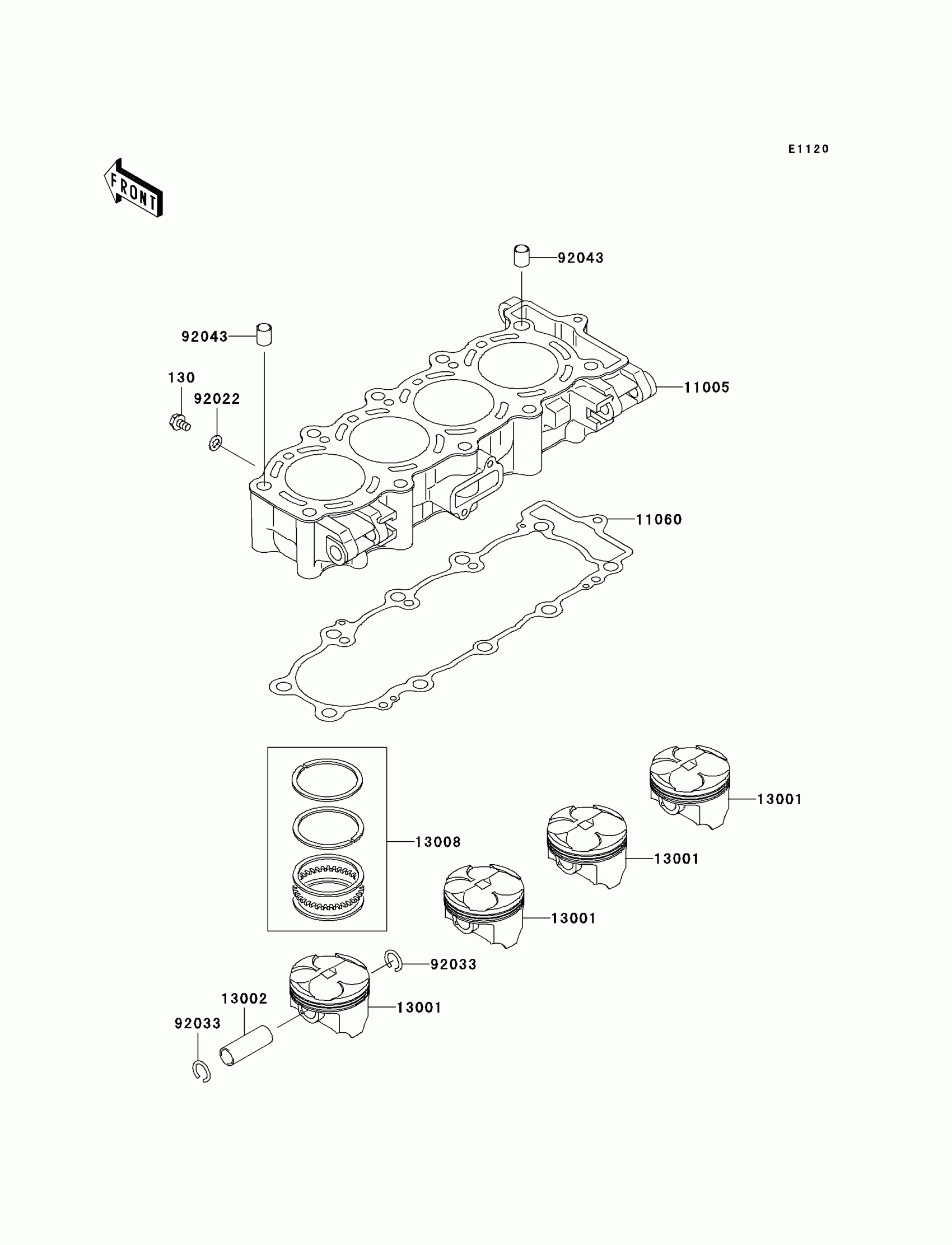

Kawasaki ZZR600 Cylinder/Piston(s) Diagram

#

Description
Price

130

BOLT-FLANGED,6X10

130Y0610

Unavailable

11005

CYLINDER-ENGINE

11005-1910

$1,424.86

11060

GASKET,CYLINDER BASE

11060-1844

$44.37

13001

PISTON-ENGINE

13001-1578

$98.13

13002

PIN-PISTON

13002-1115

$25.68

13008

RING-SET-PISTON,STD

13008-1161

$62.02

92022

WASHER,6.2X11X1

92022-304

$2.76

92033

RING-SNAP,PISTON PIN

92033-1161

$2.97

92043

PIN,10.1X12X14

92043-4009

$4.67
