2005 Kawasaki ZZR600 Crankcase Bolt Pattern Diagram

← All diagrams

Find the part on the Crankcase Bolt Pattern diagram for your 2005 Kawasaki ZZR600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

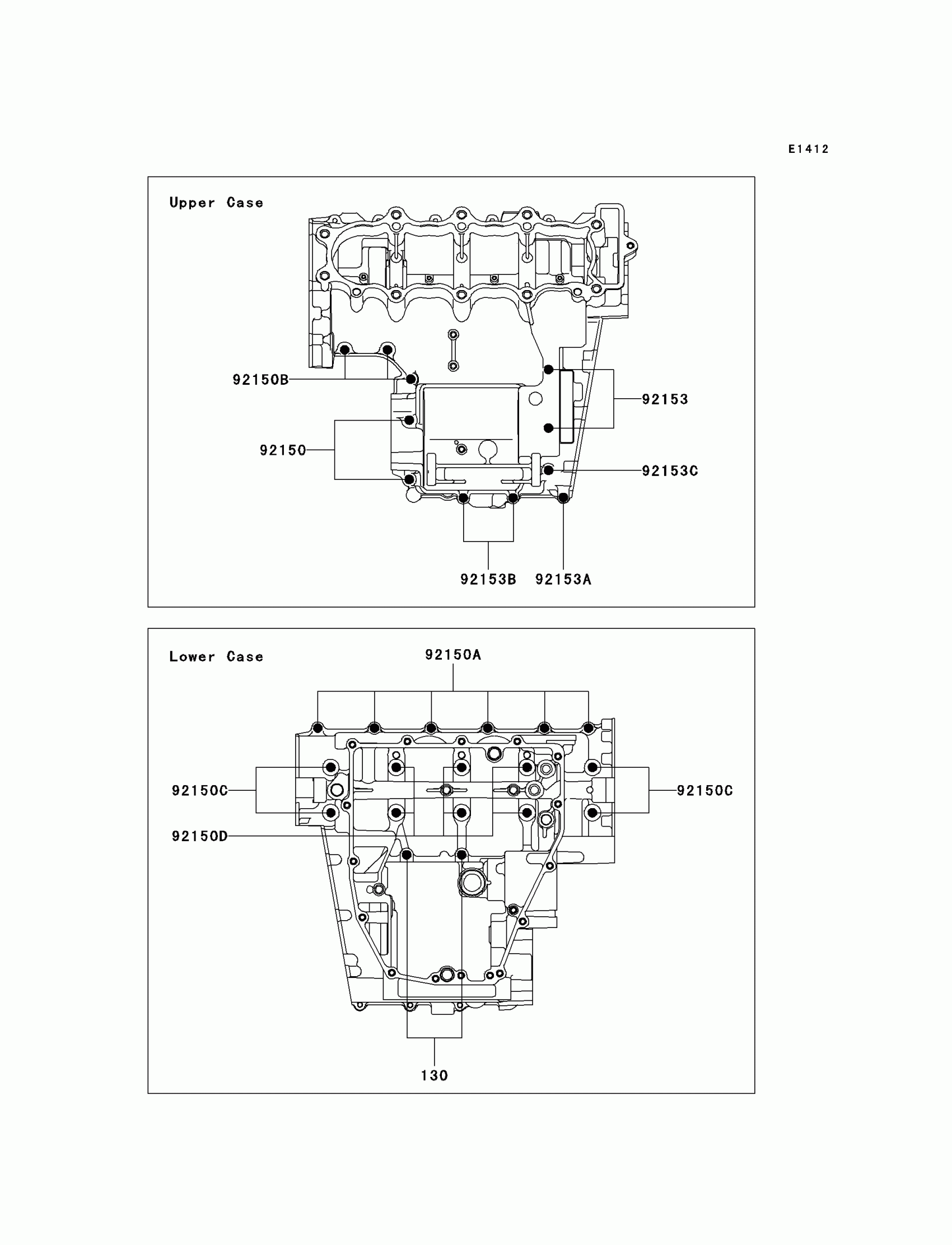

2005 Kawasaki ZZR600 Crankcase Bolt Pattern Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,6X75

130P0675

1
Out of stock

92002

BOLT,6X95

92002-1078

1

$4.92

In stock

92002A

BOLT,6X50

92002-1079

1

$5.17

In stock

92002B

BOLT,6X65

92002-1140

1

$4.31

In stock

92002C

BOLT,6X85

92002-1306

1

$5.10

In stock

92150

BOLT,7X70

92150-1250

1
Out of stock

92150A

BOLT,6X38

92150-1301

1

$3.43

In stock

92150B

BOLT,8X99

92150-1856

1

$11.47

In stock

92150C

BOLT,8X76

92150-1857

1

$9.56

In stock

92150D

BOLT,6X35

92150-1862

1

$4.75

In stock
