2005 Kawasaki ZZR600 Engine Mount Diagram

← All diagrams

Find the part on the Engine Mount diagram for your 2005 Kawasaki ZZR600, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

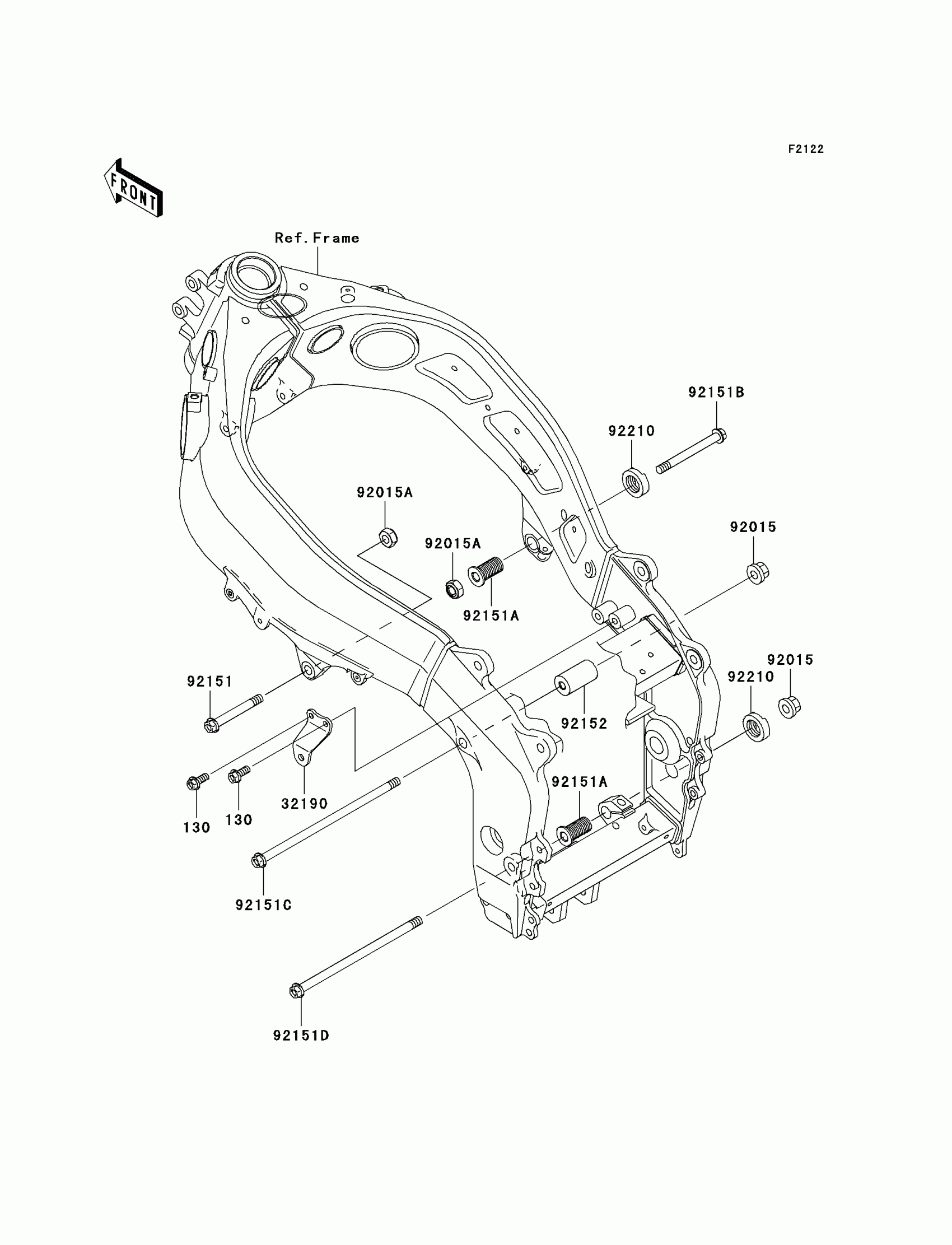

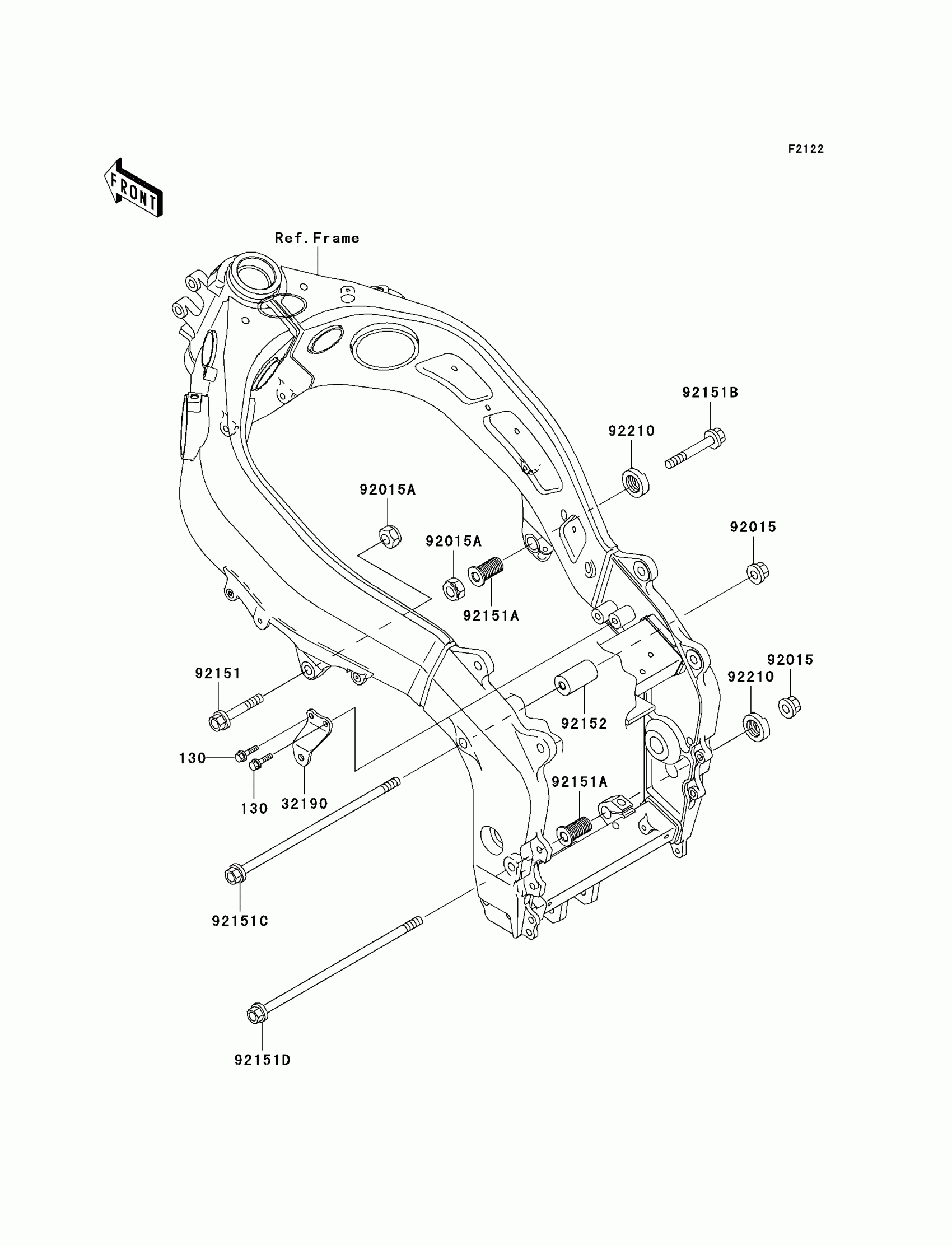

2005 Kawasaki ZZR600 Engine Mount Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED,8X20

130J0820

1
Out of stock

32190

1

$16.64

In stock

92015

NUT,FLANGED,10MM

92015-1180

1
Out of stock

92015A

NUT,LOCK,10MM,BLACK

92015-1189

1
Out of stock

92151

BOLT,FLANGED,10X80

92151-1608

1

$7.58

In stock

92151A

1

$23.81

In stock

92151B

BOLT,FLANGED,10X100

92151-1628

1
Out of stock

92151C

BOLT,FLANGED,10X234

92151-1629

1

$23.68

In stock

92151D

BOLT,FLANGED,10X207

92151-1630

1
Out of stock

92152

COLLAR,10.5X26X70

92152-1062

1

$37.15

In stock

92210

NUT,18MM

92210-1203

1
Out of stock
