2005 Kawasaki ZZR1200 Taillight Diagram

← All diagrams

Find the part on the Taillight diagram for your 2005 Kawasaki ZZR1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

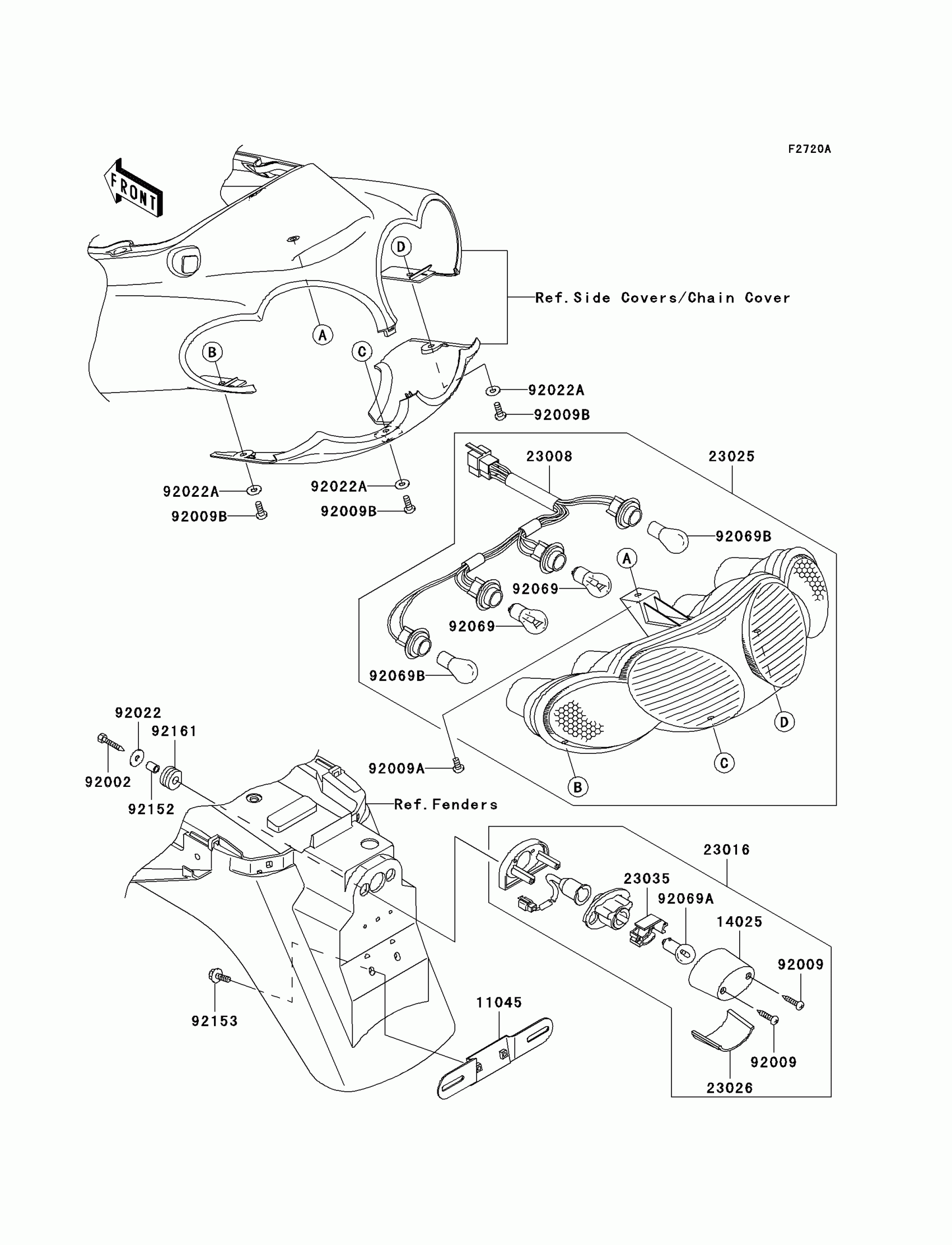

2005 Kawasaki ZZR1200 Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11045

BRACKET,LICENSE

11045-1387

1
Out of stock

14025

COVER,LICENSE LAMP

14025-1725

1
Out of stock

23008

SOCKET-ASSY,TAIL LAMP

23008-1667

1
Out of stock

23016

LAMP-ASSY,LICENSE

23016-1194

1
Out of stock

23025

LAMP-TAIL

23025-1324

1
Out of stock

23026

LENS,LICENSE LAMP

23026-1064

1
Out of stock

23035

REFLECTOR-LAMP,LICENSE

23035-1066

1
Out of stock

92002

BOLT,TAPPING,5X25

92002-1831

1
Out of stock

92009

SCREW,TAPPING,4X20

92009-1378

1
Out of stock

92009A

SCREW,6X12

92009-1744

1
Out of stock

92009B

SCREW,6X16

92009-3771

1
Out of stock

92022

WASHER,5.5X20X1.2

92022-1581

1
Out of stock

92022A

WASHER,6.5X16X1.0

92022-1654

1
Out of stock

92069

BULB,12V 21/5W

92069-063

1
Out of stock

92069A

BULB,12V 5W

92069-1055

1
Out of stock

92069B

BULB,12V 21W

92069-1125

1
Out of stock

92152

COLLAR,6X9X11.5

92152-1458

1
Out of stock

92153

BOLT,6X16

92153-0684

1
Out of stock

92161

DAMPER

92161-1313

1
Out of stock
