2005 Kawasaki ZZR1200 Ignition System Diagram

← All diagrams

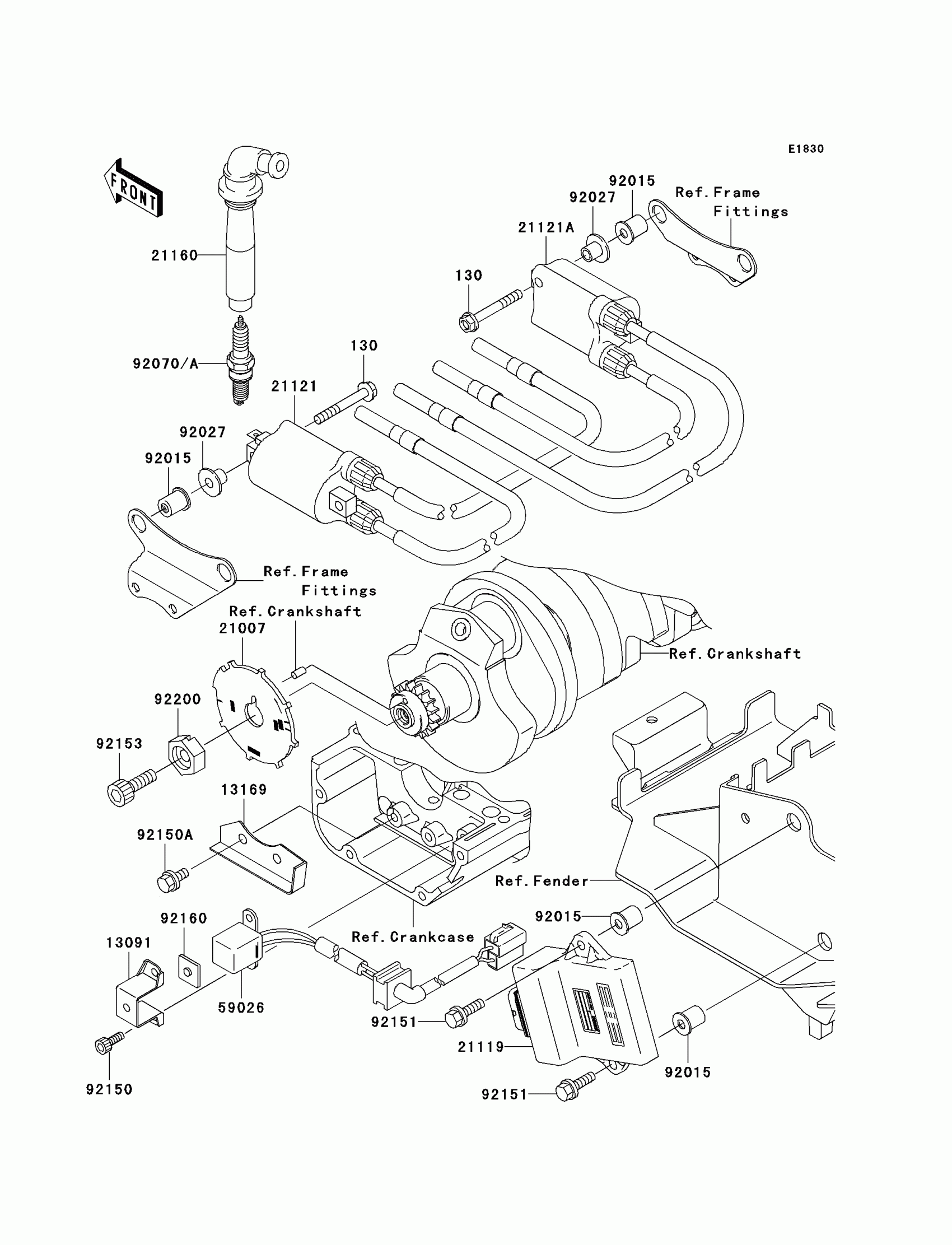

Find the part on the Ignition System diagram for your 2005 Kawasaki ZZR1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki ZZR1200 Ignition System Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

130

BOLT-FLANGED

130L0645

1
Out of stock

13091

HOLDER

13091-1562

1

$8.73

In stock

13169

PLATE,CHAIN GUIDE

13169-1748

1

$14.63

In stock

21007

ROTOR

21007-1410

1

$56.68

In stock

21119

IGNITER

21119-1607

1

$695.37

In stock

21121

COIL-IGNITION,#1

21121-1220

1

$232.46

In stock

21121A

COIL-IGNITION,#2

21121-1221

1

$152.92

In stock

21160

CAP-ASSY-PLUG

21160-1098

1

$49.18

In stock

59026

COIL-PULSING

59026-1118

1

$150.54

In stock

92015

NUT

92015-1700

1

$6.82

In stock

92027

COLLAR

92027-195

1

$5.21

In stock

92070

Not Available As Spare Part - Friction Washer

1
Out of stock

92070A

PLUG-SPARK,CR9E(NGK)

92070-1266

1
Out of stock

92150

BOLT,SOCKET,5X14

92150-1180

1

$3.53

In stock

92150A

1

$3.43

In stock

92151

BOLT,FLANGED,6X20

92151-1226

1

$2.03

In stock

92153

BOLT,8X25

92153-1191

1
Out of stock

92160

DAMPER

92160-1091

1

$4.61

In stock

92200

WASHER,ROTOR

92200-1173

1
Out of stock
