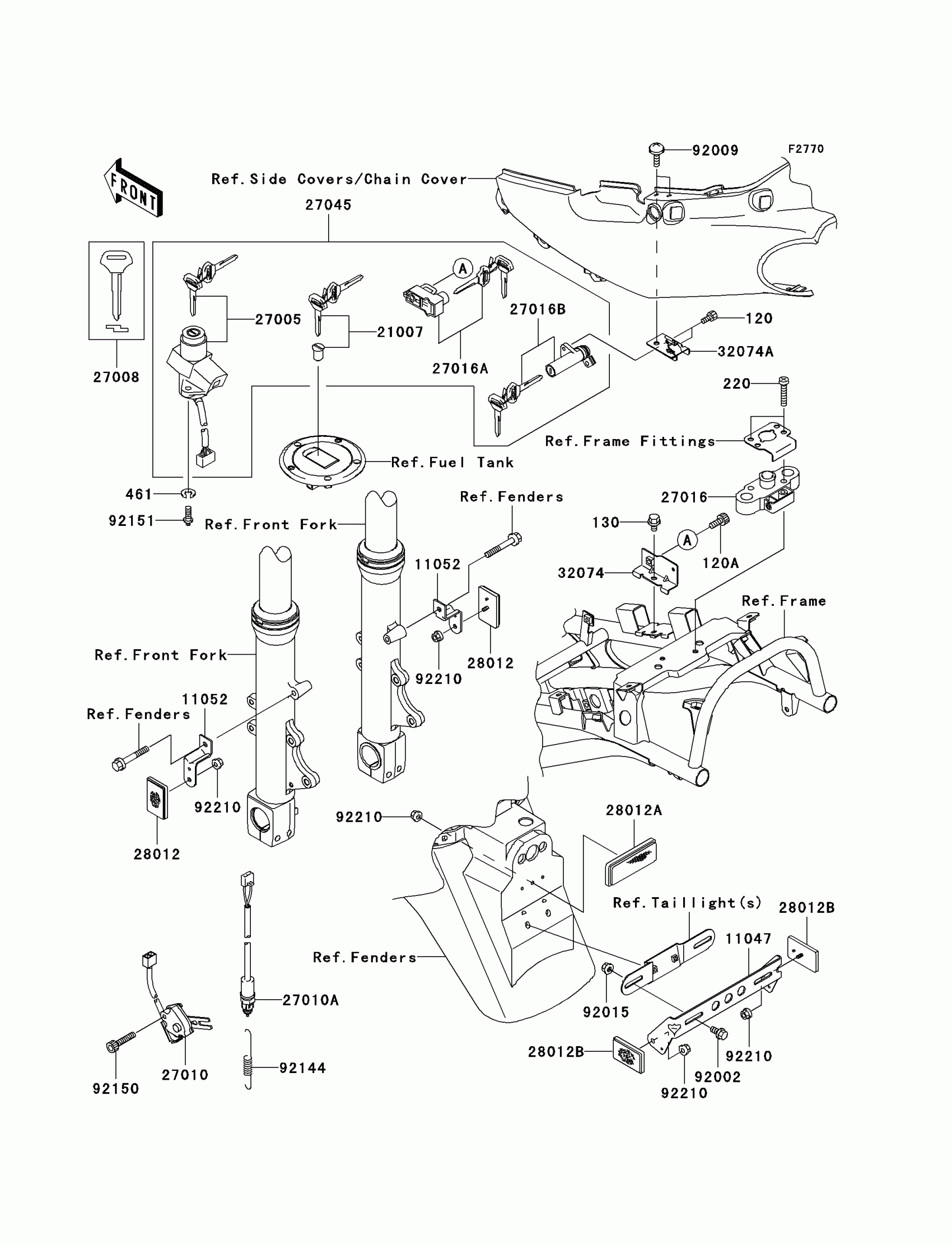

Find the part on the Ignition Switch/locks/reflectors diagram for your 2005 Kawasaki ZZR1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2005 Kawasaki ZZR1200 Ignition Switch/locks/reflectors Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

120

BOLT-SOCKET,5X12

120S0512

1
Out of stock

120A

BOLT-SOCKET,6X16

120S0616

1
Out of stock

130

BOLT-FLANGED,6X12

130J0612

1
Out of stock

220

SCREW-PAN-CROSS

220F0630

1
Out of stock

461

WASHER-SPRING

461L0600

1

$0.68

In stock

11047

BRACKET,REFLECTOR

11047-1470

1

$29.64

In stock

11052

BRACKET,REFLECTOR

11052-1671

1

$7.12

In stock

21007

ROTOR,LOCK,TANK CAP

21007-5042

1

$94.15

In stock

27005

1

$202.04

In stock

27008

KEY-LOCK,BLANK

27008-1189

1

$13.89

In stock

27010

SWITCH,SIDE STAND

27010-1445

1

$154.57

In stock

27010A

SWITCH,BRAKE LAMP

27010-1452

1

$33.00

In stock

27016

1

$86.38

In stock

27016A

LOCK-ASSY,HELMET

27016-5247

1
Out of stock

27016B

LOCK-ASSY,SEAT

27016-5250

1

$85.59

In stock

27045

SWITCH-ASSY

27045-5163

1

$480.31

In stock

28012

REFLECTOR-REFLEX

28012-1003

1

$20.69

In stock

28012A

REFLECTOR-REFLEX

28012-1077

1

$21.76

In stock

28012B

REFLECTOR-REFLEX

28012-1088

1

$20.82

In stock

32074

BRACKET-LOCK,HELMET

32074-1198

1

$10.17

In stock

32074A

BRACKET-LOCK,SEAT

32074-1203

1

$10.17

In stock

92002

BOLT,6X12

92002-1132

1

$1.32

In stock

92009

SCREW,6X20

92009-3763

1
Out of stock

92015

NUT,FLANGED,6MM

92015-1367

1

$2.93

In stock

92144

1

$5.47

In stock

92150

BOLT,SOCKET,6X30

92150-1433

1

$3.87

In stock

92151

BOLT,TORX,6X16

92151-1911

1

$2.15

In stock

92210

NUT,FLANGED,5MM

92210-0007

1
Out of stock
