2005 Kawasaki ZZR1200 Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2005 Kawasaki ZZR1200, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

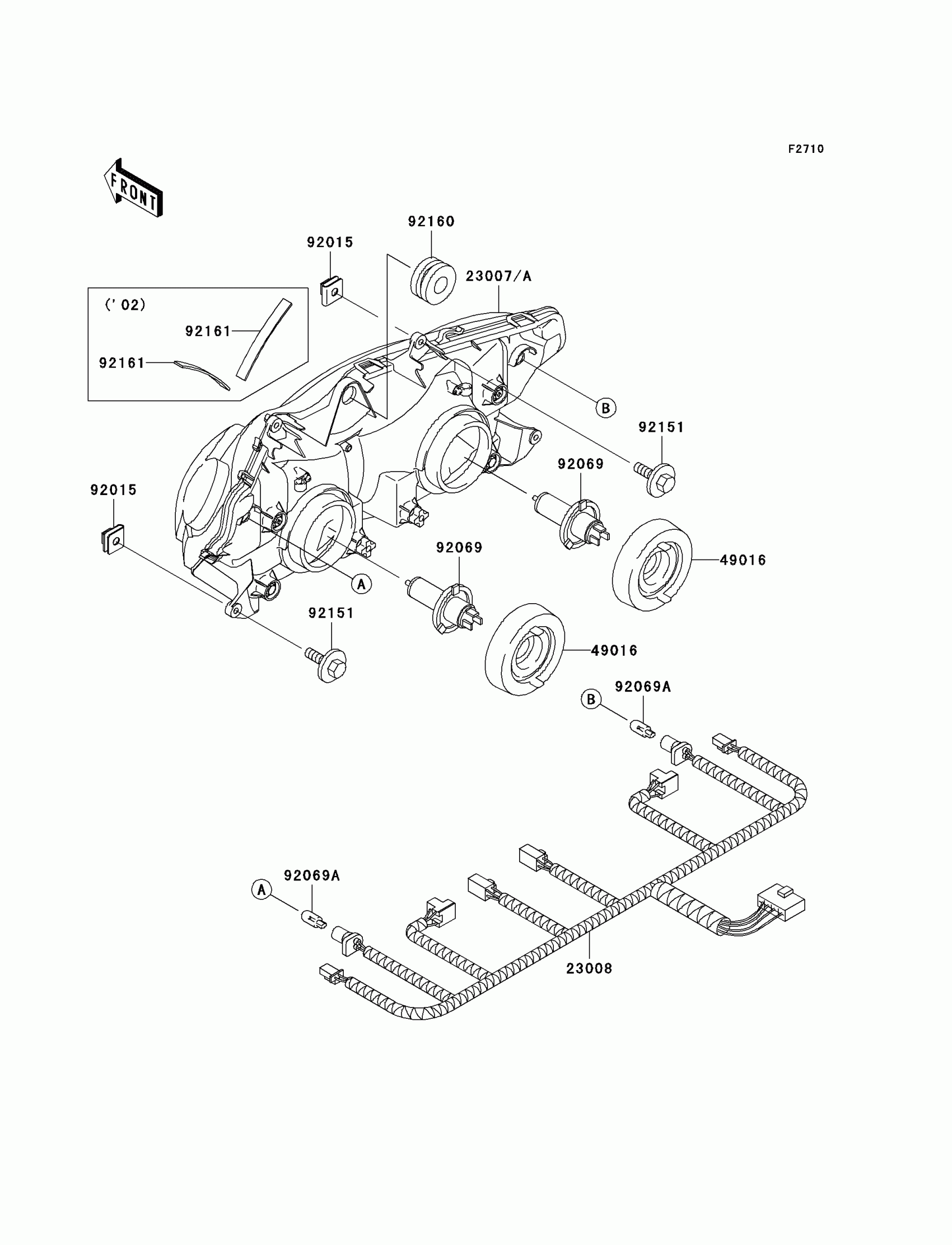

2005 Kawasaki ZZR1200 Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

23007A

LENS-COMP,HEAD LAMP

23007-1439

1

$617.24

In stock

23008

1

$29.05

In stock

49016

1

$15.86

In stock

92015

NUT,6MM

92015-1094

1
Out of stock

92069

BULB,12V 60/55W,H4

92069-1002

1
Out of stock

92069A

BULB,12V 5W

92069-1016

1

$5.16

In stock

92151

BOLT,6X25

92151-1241

1

$3.97

In stock

92160

DAMPER

92160-1007

1

$4.37

In stock
