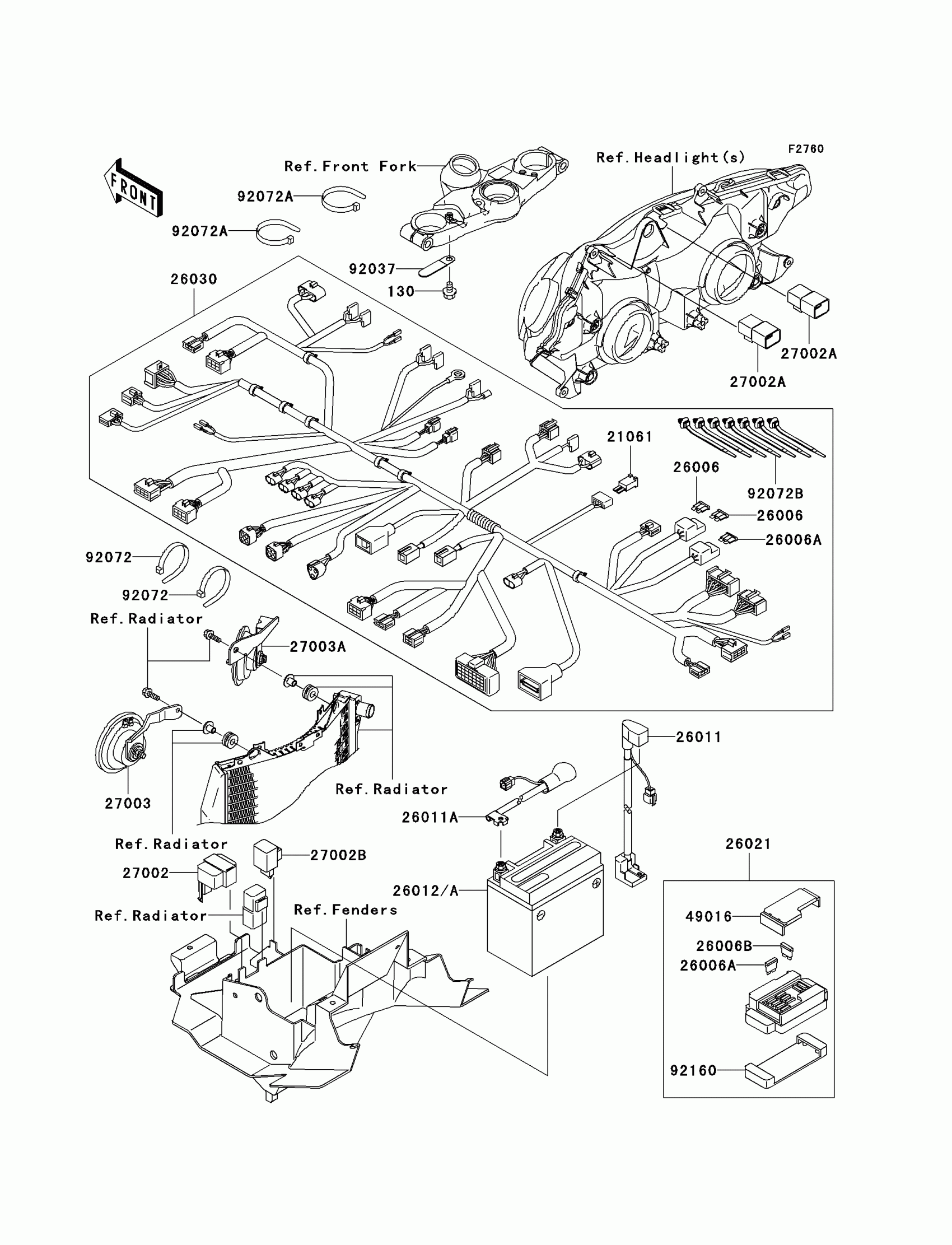

Kawasaki ZZR1200 Chassis Electrical Equipment Diagram

Description

Price

130

BOLT-FLANGED

130J0610

Unavailable

21061

RECTIFIER

21061-1059

$32.96

26006

FUSE,BLADE,30A,GREEN

26006-1067

Unavailable

26006A

FUSE,10A-R

26006-1068

Unavailable

26006B

FUSE,15A

26006-1075

$4.86

26011

WIRE-LEAD,BATTERY(+)

26011-1822

$71.90

26011A

WIRE-LEAD,BATTERY(-)

26011-1823

$46.48

26012

BATTERY,YTX14-BS,12V 12AH

26012-1334

$125.31

26021

JUNCTION BOX

26021-1108

$166.72

26030

HARNESS,MAIN

26030-1946

$747.90

27002

RELAY-ASSY

27002-1065

$48.55

27002A

RELAY-ASSY

27002-1086

$32.97

27002B

RELAY-ASSY,TURN SIGNAL

27002-1101

$73.74

27003

HORN,LH

27003-1320

$85.46

27003A

HORN,RH

27003-1363

$85.46

49016

COVER-SEAL,FUSE

49016-1177

Unavailable

92037

CLAMP,L=45

92037-1539

$4.42

92072

BAND,L=202

92072-1195

$1.16

92072A

BAND,L=250

92072-1237

$1.55

92072B

BAND,OS170-FT7(BLACK)

92072-1414

$2.84

92160

DAMPER,JUNCTION BOX

92160-1650

$12.78
